3.5 tonne loading ramps - 3.3m Aluminium Excavator & Machinery RampsPrice Guide:$1,664Get latest price

Overview

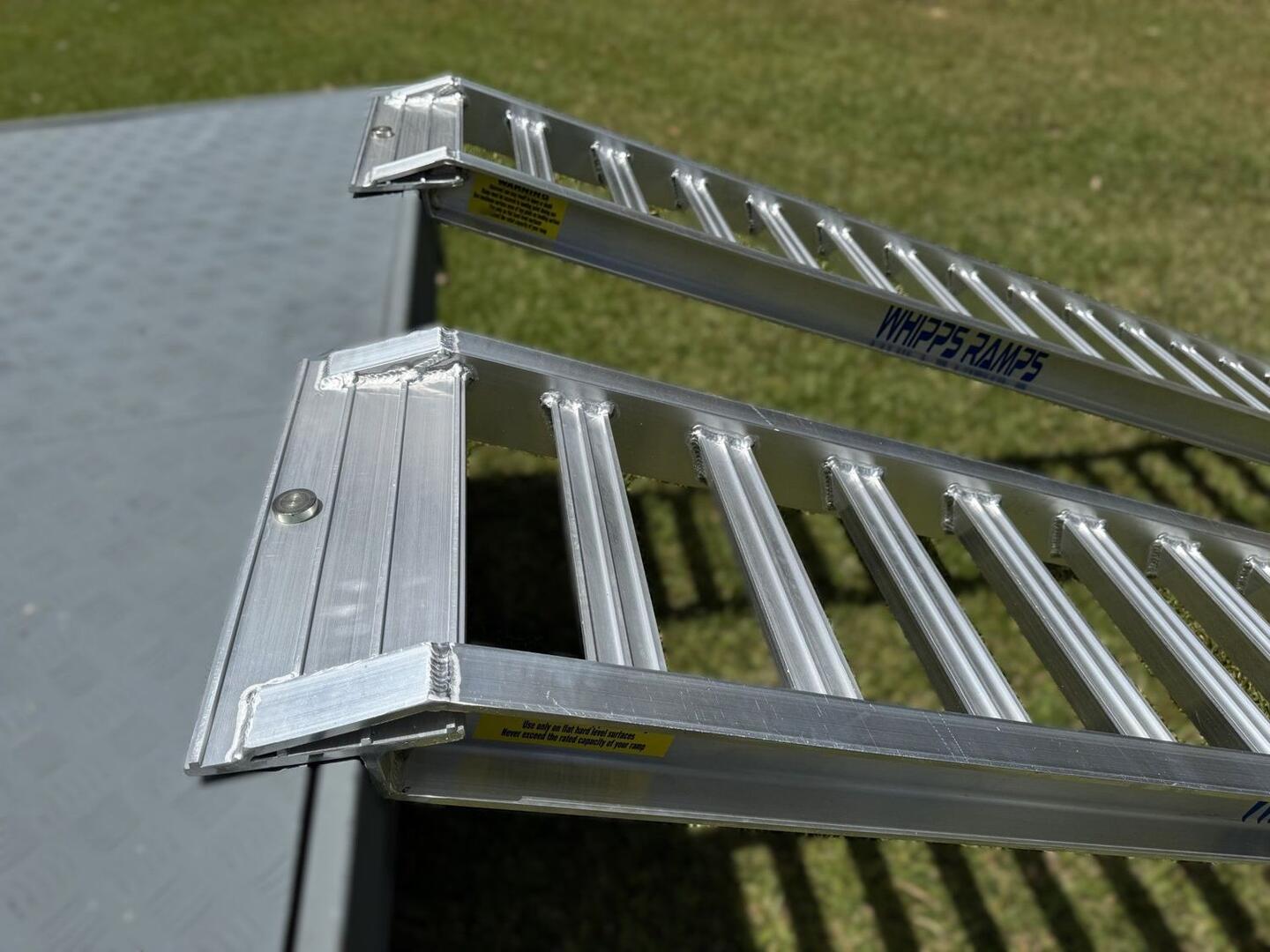

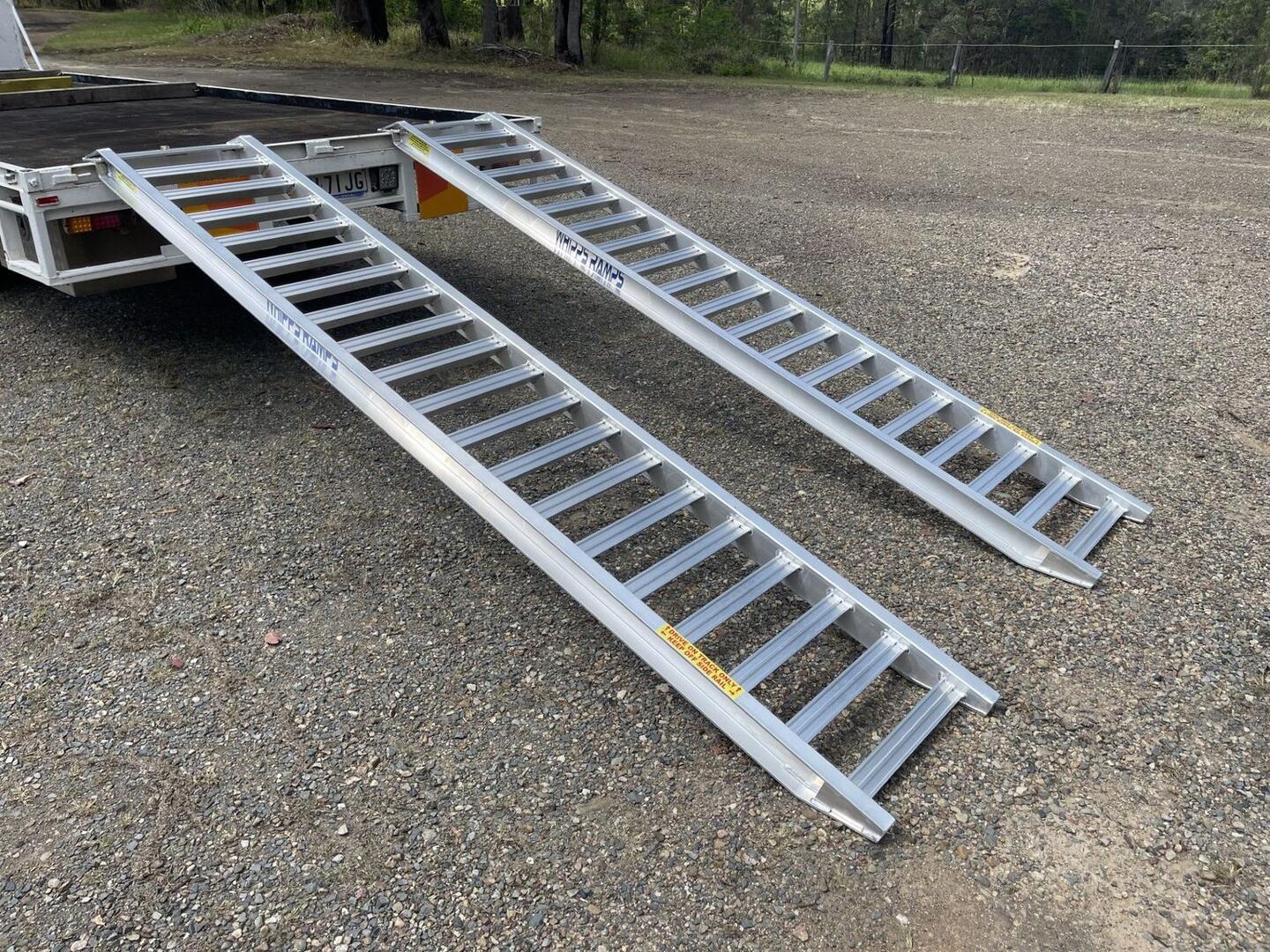

These 3.5-tonne capacity loading ramps are crafted from structural-grade aluminium, providing a durable and reliable solution for loading excavators and machinery. Designed to withstand tough Australian conditions, these ramps are trusted by contractors and machinery operators nationwide.

Key Features

• Capacity: 3500 kg per pair, ensuring robust support for heavy machinery.
• Length: 3.3 metres, including the top connection plate, for extended reach.

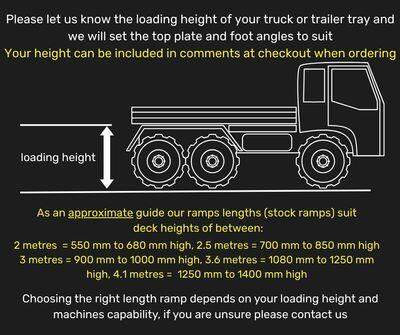

• Loading Height Range: Suitable for heights from approximately 970 mm to 1150 mm, accommodating various setups.
• Material: Made from Australian extruded 6082-T6 aluminium for strength and durability.
• Welding: Utilises 5183 structural welding wire for enhanced stability.
• Includes: Comes with 2 securing pins for safe attachment to your tray, flatbed, or trailer.
• Customisation: Options for track width and top plate connection to suit specific needs.

Technical Specifications

These ramps are meticulously designed to meet the demands of heavy-duty machinery loading.

Customisation Options

Select from various track widths and top plate connections to tailor the ramps to your specific requirements.

• Track Width Options: 300 mm, 350 mm, 400 mm, 450 mm.
• Top Plate Connection: Standard 100 mm or optional 170 mm, both include securing pins.

Freight and Delivery

Choose from multiple delivery options to suit your needs. Options include business delivery with forklift requirements, depot collection, or arranging your own freight with a handling surcharge.
