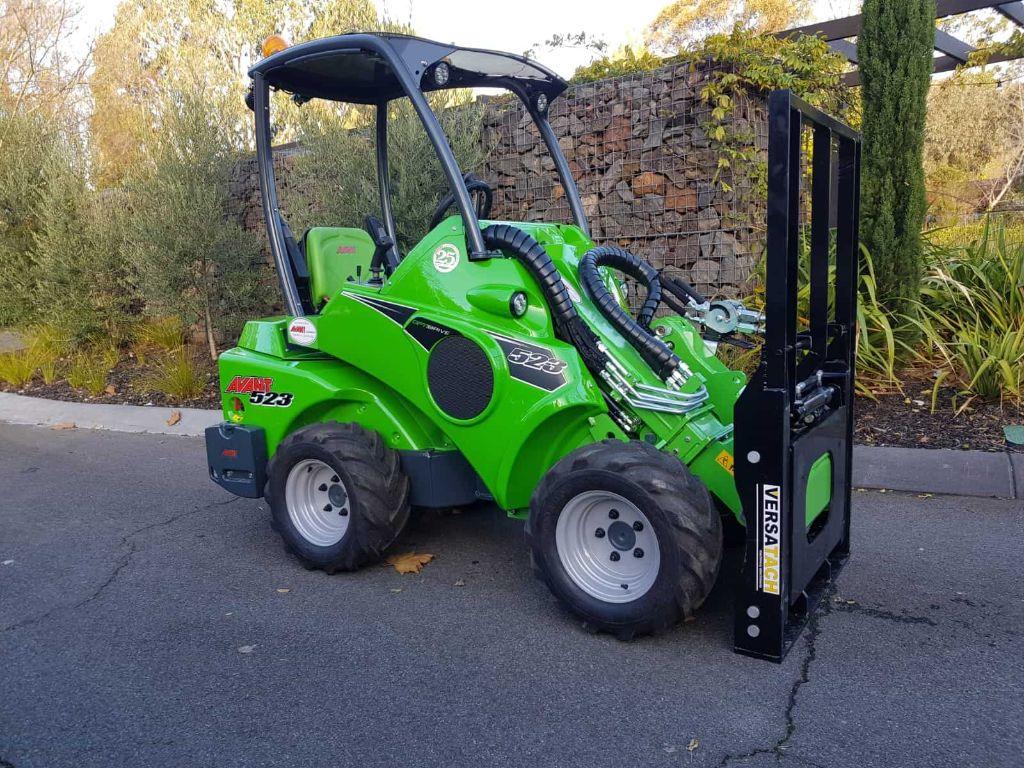

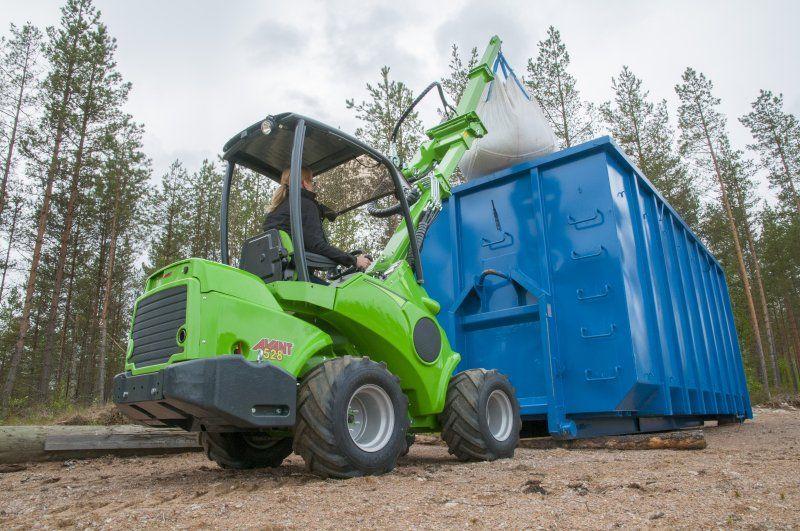

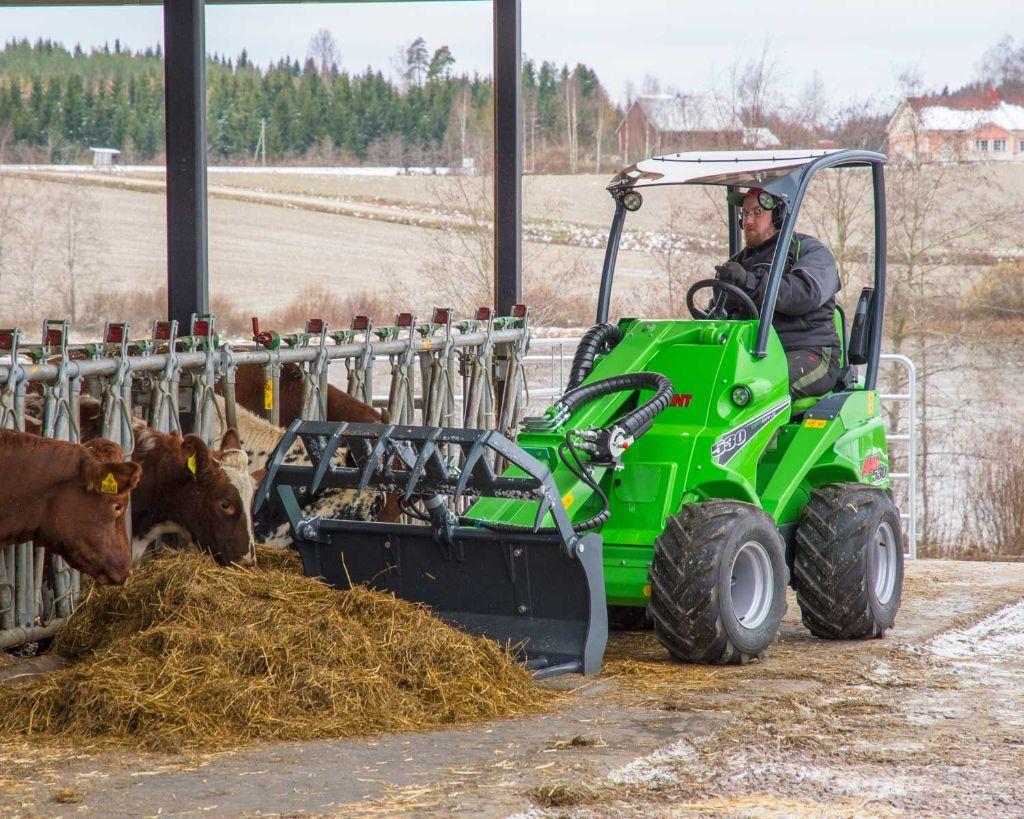

500 Series | Mini Articulated LoaderGet latest price

Features of this product

• Not only do the Avant loaders lift and handle heavy loads, they deliver precise maneuverability thanks to the articulation joint that enables the rear tires of the loader to match the path of the front tires as they turn. This results in a machine that can navigate around obstacles with ease and works well in hard to access and small work sites.
• They are well suited for a wide range of industries thanks to their power and straight forward hydraulics, which is needed for many jobs in many industries.
• The compact dimensions and excellent maneuverability allows this mini loader to be used in a wide range of environments. It can lift amazingly heavy loads relative to the size of the machine.
• Avant loaders can be personalised according to customer needs, including all cab options (L, LX, DLX). The comprehensive Avant attachment range guarantees efficiency on site all year round.

Specifications of this product

• Low ground pressure
• Kubota Diesel D902 18kw / 25hp
• All New OptiDrive System
• Teleboom with 2820mm Lift height
• Self-levelling Boom
• Hydrostatic 4 Wheel Drive
• Hydraulic Pilot Operated Drive Pedal
• Direct Drive, 4 Hydraulic Motors
• Drive Speed 0 – 12 km/hr
• Auxiliary hydraulics, 1 Gear Pump 34L/min
• Hydraulic oil Cooler With Single Fan
• Drive release
• Suspension Seat with Arm Rests
• Hour Meter, Temperature Gauge, Tachometer
• Joystick 6 Function
• 2 Front Work Lights LED
• Poclain Wheel Motors
• Hydraulic Parking Brake
• Multi Connector on Aux. Hydraulics
• Heavy Duty Cover Panels
• ROPS & FOPS
• 23” * 10.50-12 Wheels & tyres 1090mm Wide

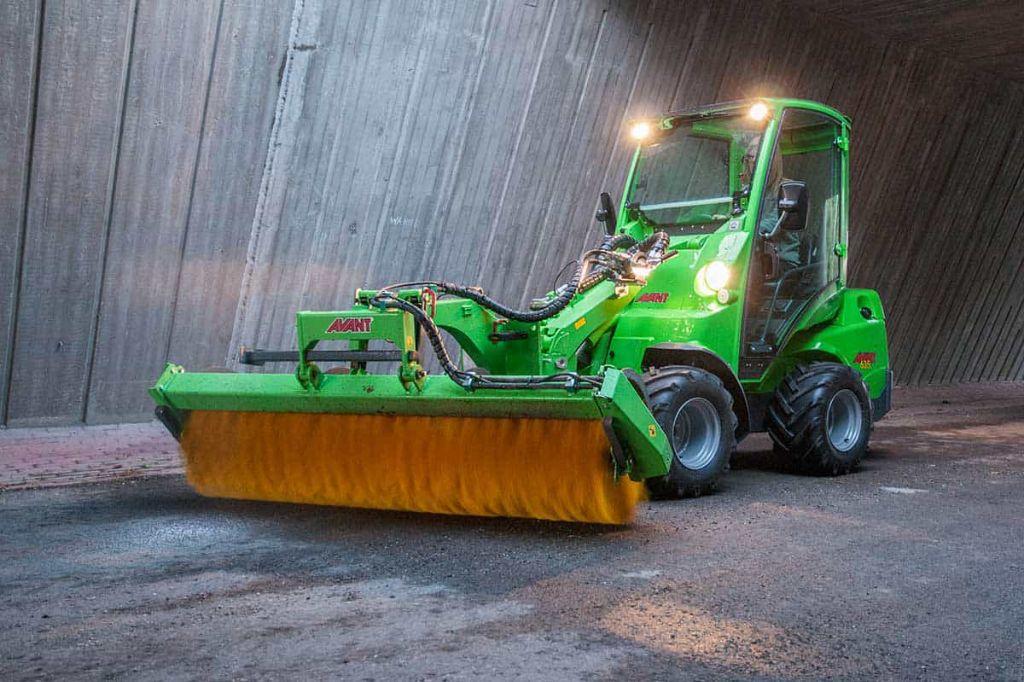

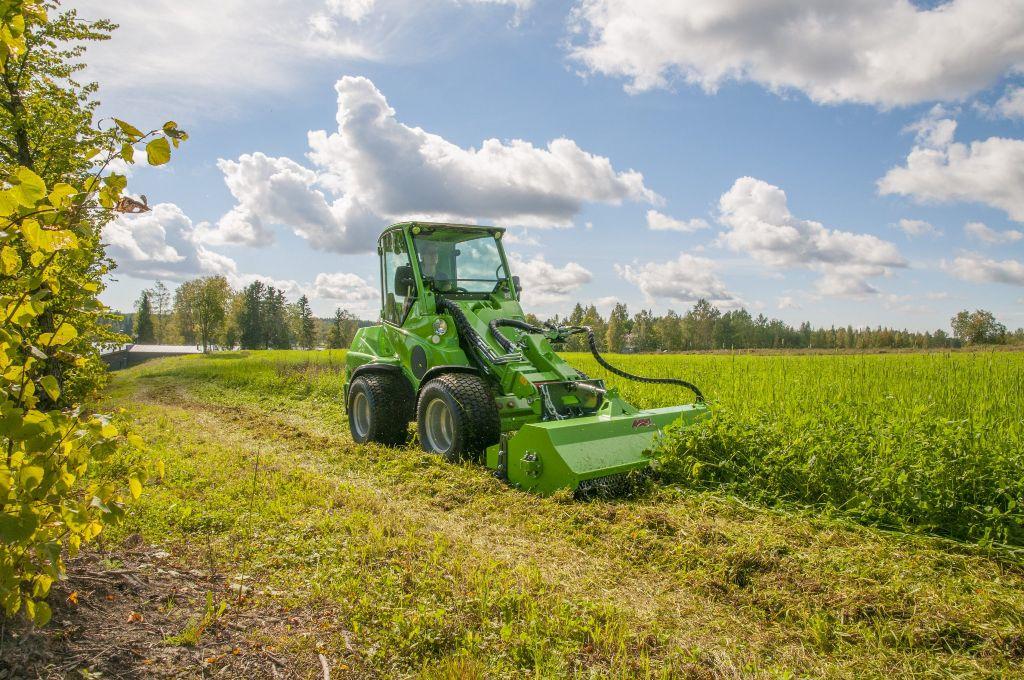

• Over 200 attachments
• Cab options available
• Articulated chassis
