65 Ton Diesel Hydraulic Log SplitterPrice Guide:$2,179Get latest price

The 65 Ton Hercules series are the most powerful in the Baumr-AG range, and boast an array of innovative features that make them best of breed.

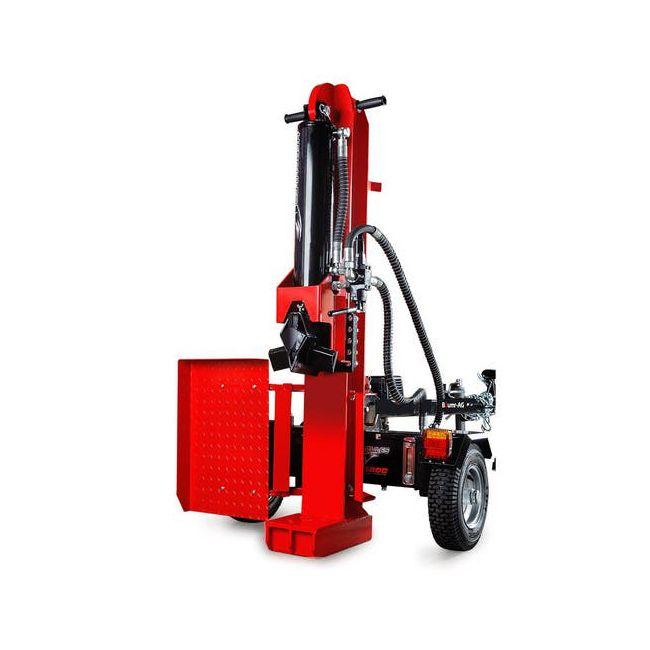

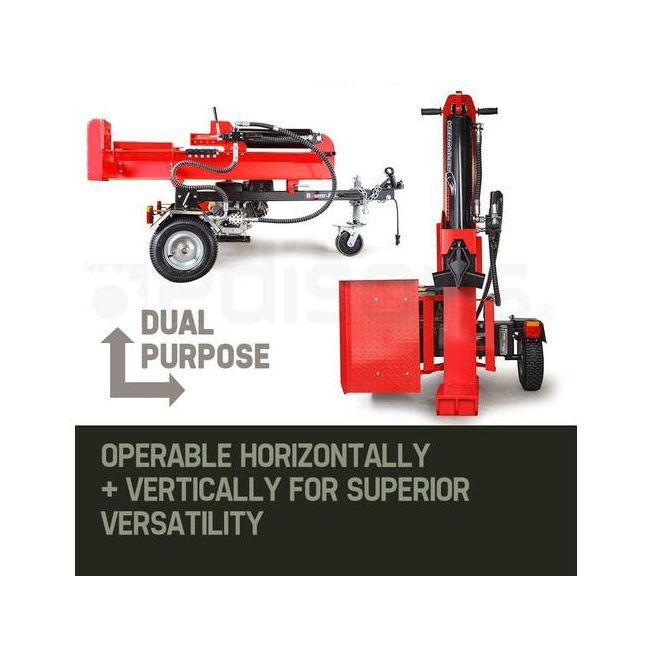

The diesel driven HDS800 makes light work of the toughest Australian hardwoods, rupturing Gum and Ironbark logs into quarters at the flick of a lever. The HDS800 is highly versatile and user friendly. It splits wood in both horizontal and vertical positions so you can avoid lifting heavy logs onto the splitter. The convenient working table allows working room/storage for multiple timbers and is removable so the unit can be transformed into a much slimmer width for better storage. Its removable 4-Way head splits 4 timbers from one log and is uniquely mounted with no fixed bolts for quick interchange of wedge type.

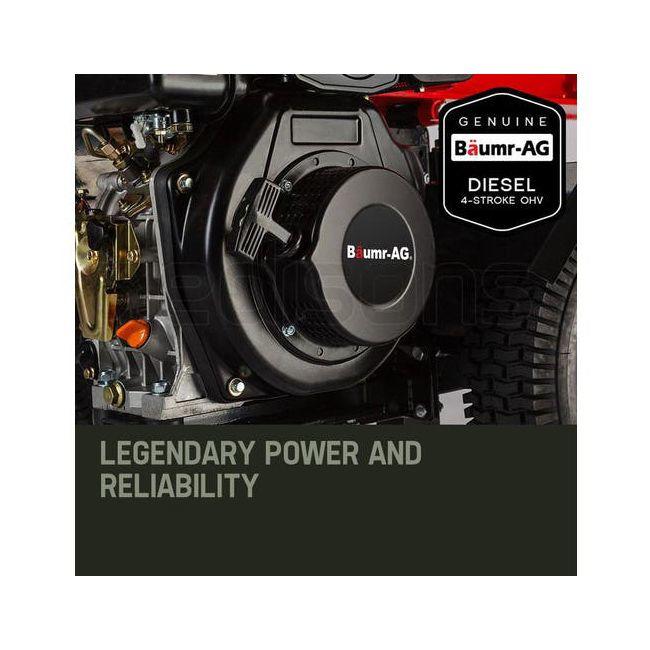

Power from the massive diesel four-stroke is transferred via a patented DirectDrive for maximum efficiency, no vibration, and no required servicing. This class-leading combination equates to industry leading performance, and with premium all-terrain 16 inch extra wide rubber tyres the HDS800 is extremely transportable through all kinds of terrain meaning you can split timber just about anywhere.

Splitters in the Hercules range are the only to offer a Proper Australian (Non US Type) 50mm Trailer Coupling and a unique heavy-duty fixed stripper to remove any wood stuck to the wedge on the return cycle. Moreover, they feature an extra-large quick-release fold-away Jockey Wheel with Integrated Dual-Action Foot activated brake that prevents rolling or pivoting.

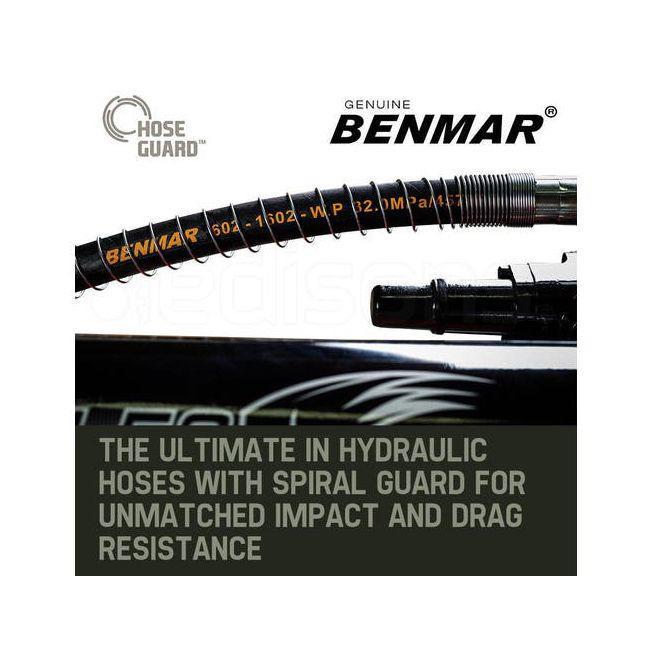

The HDS800 has just two neat genuine Benmar® hoses. These are the ultimate in hydraulic hosing and are encapsulated by Baumr-AG’s patented HoseGuard™. This exclusive spiral system ensures the hoses keep their shape to prevent interfering with controls, and offer an additional layer of protection which is crucial when towing.

Particle contamination in the ram is the number one cause of failure for log splitters, and therefore you should be wary of splitters on the market operating with small filters. The HDS800 features an oversized oil filter, which not only protects your investment, but makes it so much more convenient obtaining a replacement at any auto accessory retailer.

Baumr-AG are the industry leaders and the Hercules HDS800 is the ultimate workhorse – with the ability to split timbers of more than 650mm diameter like Styrofoam! When it comes to getting the job done fast, there’s nothing like having the best equipment at hand.

Make an investment in quality machinery for your property or business. Order your very own Baumr-AG HDS800 Hercules 65 Ton Log Splitter today!

• Class-leading four-stroke diesel engine
• Splits logs up to 650mm* in diameter
• Massive 65-tonne punch cuts through any kind of wood
• Benmar® twin-line hydraulic hosing
• Clever spiral HoseGuard™ protection for maximum durability
• Patented DirectDrive for no vibration or servicing
• Robotic welding employed
• Oversized oil filter for ultimate protection

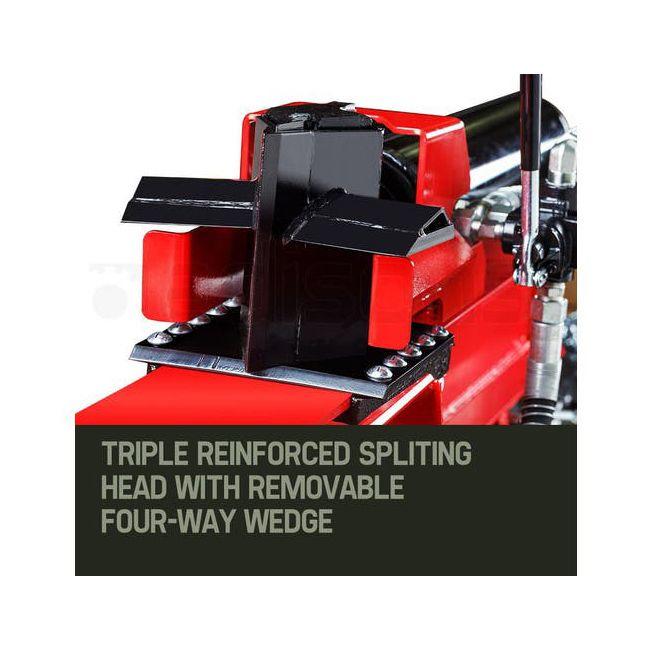

• Triple-reinforced splitting head with removable four-way wedge
• Heavy-duty fixed stripper
• All terrain tyre tread
• Extra-large fold-away jockey wheel with integrated dual-action foot brake
• Removable ergonomic heavy-duty working table
• Rugged 16-inch rubber wheels for easy off-road transportation
• Australian-standard flat seven-pin trailer connection
• Super-tough shipping crate with CAD designed layout of contents
• Simple installation with everything fitting like a glove
• 12-month Australian warranty
• Not suitable for road registration

Specifications

• Brand: Baumr-AG
• Model: Hercules HDS800
• Starting System: Recoil
• Output: 6HP
• Displacement: 296cc
• Fuel Tank Capacity: 6.5L
• Fuel Type: Diesel
• Power Source: Diesel
• Type: Log Splitter
• Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included with purchase)
• Engine Oil Capacity: 1.1L
• Pump Type: 16GPM Two-Stage
• Hydraulic Hose: Benmar®
• Hydraulic Oil Capacity: 22 L
• Hydraulic Oil Type: 10WT AW32, ASLE H-150 or ISO32
• Max.Spitting Length: 550mm*
• Max.Tested Splitting Force (tons): 65
• Rated Splitting Force (tons): 43
• Max. Ram Travel: 495mm*
• Diameter of Ram: 140mm*
• Log Diameter: Up to 650mm*(species dependent – - view Buying Guide)
• Cycle Time: 18s
• Wheel Diameter: 16 inches pneumatic with bearing
• Jockey Wheel Diameter: 8 inches

In the box

• 1x Baumr-AG HDS800 Log Splitter
• User Manual is accessible online

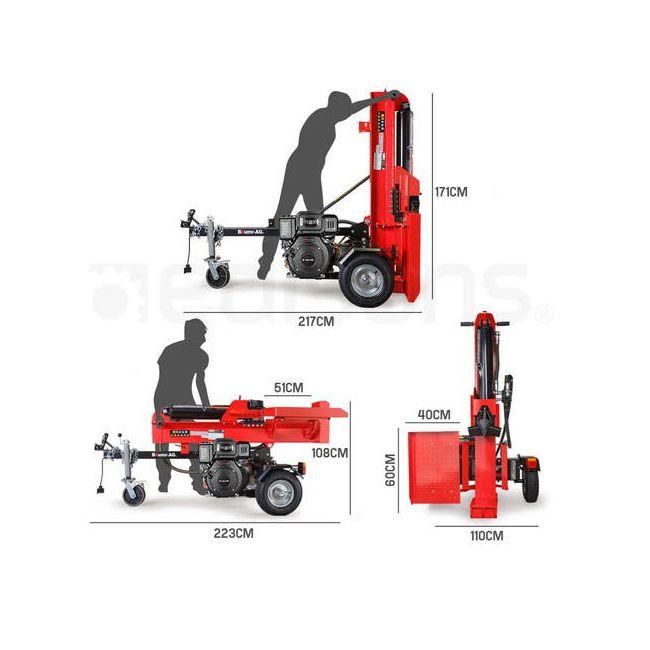

Product Dimensions (L x W x H): 223 × 110 × 171cm
