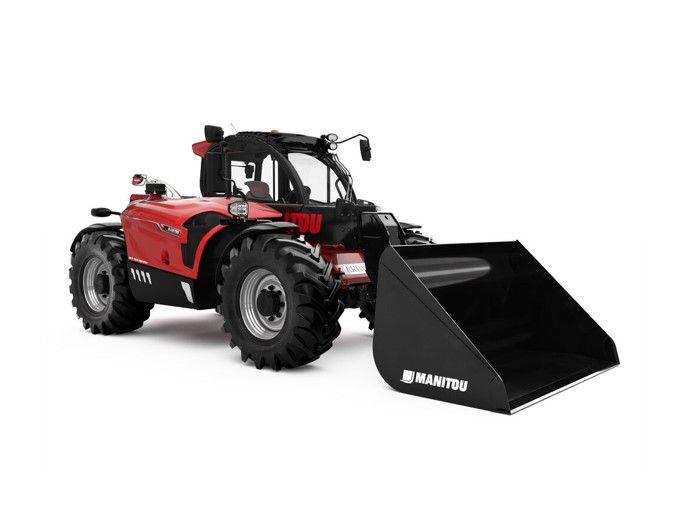

Agricultural Telescopic handler | MLT-X 737-130 PS+ Get latest price

Are you looking for a machine that offers you efficiency, performance and comfort? The MLT 737-130 PS+ was made with you in mind! Dedicated to agricultural material handling, it has a lift height of 6.88 m and a lift capacity of 3.7 t. Designed for Comfort: this machine offers a completely new cab, with the benefit of easy access, optimal visibility, a JSM® (Joystick Switch and Move) mounted on a floating armrest, Double Switch Buttons (DSB) and soundproofing ideal for long periods of use. Designed for Performance: this machine gives you exceptional results thanks to its 129 hp Deutz engine and Powershift Plus transmission. Its limited slip differential, ground clearance of 41 cm and automatic dust removal system for the radiators are perfectly adapted to intensive agricultural use. A wide choice of tires are also offered in order to optimize your productivity in every work environment. The brand new hydraulic functions and the variable piston pump of 150l/min guarantee unmatched productivity and performance levels. Designed for Cost-Efficiency: the MLT 737-130 PS+ has been specifically designed to reduce the Total Cost of Ownership (TCO) of the machine, by decreasing fuel consumption by 5 % and by optimizing machine maintenance (longer service intervals, central greasing points…). Manitou also offers you the connected solution Easy Manager, allowing you to manage, optimize and secure your machine’s use and maintenance. All these features thus help you maximize the residual value of your telehandler.

TECHNICAL FEATURES

Capacities:

• capacity
  • 3700 kg
• lifting height
  • 90 m
• outreach
  • 90 m
• Reach at max. height
  • 1 m
• Breakout force with bucket
  • 5520 daN

Weight and dimensions:

• Unladen weight (with forks)
  • 7540 kg
• Ground clearance
  • 41 m
• Wheelbase
  • 81 m
• Overall length to carriage (with hitch)
  • 97 m
• Front overhang
  • 21 m
• Overall width
  • 39 m
• Overall cab width
  • 95 m
• Overall height
  • 38 m
• Tilt-down angle
  • 134 °
• Tilt-up angle
  • 12 °
• External turning radius (over tyres)
  • 92 m
• Standard tyres
  • Alliance - A580 - 460/70 R24 159A8
• Drive wheels (front / rear)
  • 2 / 2
• Steering wheels (front / rear)
  • 2 / 2

Performances

• Lifting
  • 60 s
• Lowering
  • 40 s
• Extension
  • 80 s
• Retraction
  • 90 s
• Crowd
  • 80 s
• Dump
  • 3 s

Engine

• Engine brand
  • Deutz
• Engine norm
  • Stage IIIA
• fuel sulphur content
  • 2000 ppm
• Engine model
  • TCD 3,6 l
• Number of cylinders - Capacity of cylinders
  • 4 - 3621 cm³
• C. Engine power rating / Power (kW)
  • 129 Hp / 95 kW
• torque / Engine rotation
  • 500 Nm @1600 rpm
• Drawbar pull (Laden)
  • 7950 daN
• Reversible fan
  • Standard
• Engine cooling system
  • 4 radiators (water + intercooler + hydraulic oil + transmission oil)

Transmission

• Transmission type
  • Torque Converter
• Gearbox
  • Powershift Plus (M-Shift)
• Number of gears (forward / reverse)
  • 6 / 3
• travel speed (may vary according to applicable regulations)
  • 40 km/h
• Differential lock
  • Limited slip differential on front axle
• Parking brake
  • Manual
• Service brake
  • Oil-immersed multi-discs on front & rear axles

Hydraulic

• Hydraulic pump type
  • Load sensing pump
• Hydraulic flow - Pressure
  • 150 l/min - 270 bar
• Flow sharing distributor
  • Standard

Tank capacities

• Hydraulic oil
• 135 l
• Fuel tank
• 120 l

Noise and Vibaration

• Noise at driving position (LpA) tested following NF EN 12053 norm
  • 75 dB(A)
• Environmental noise (LwA)
  • 106 dB(A)
• Vibration to whole hand/arm
  • < 2.50 m/s²

Miscellaneous

• Tractor homologation
  • Tractor homologation
• Safety cab homologation
  • ROPS - FOPS cab (level 2)
• Controls
  • JSM
