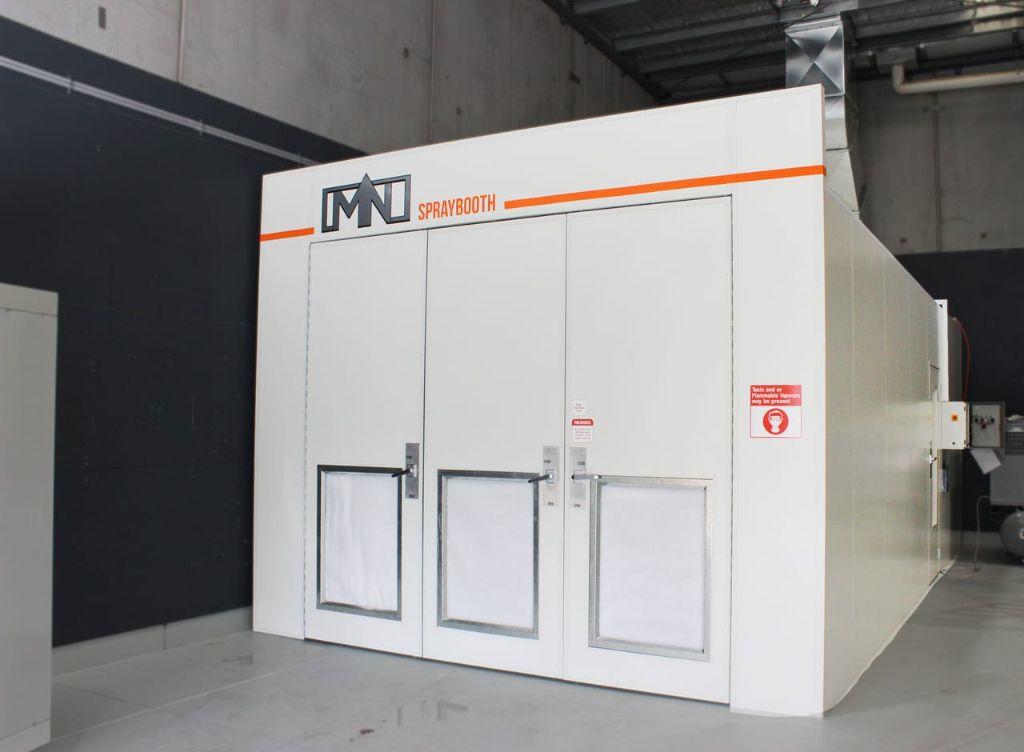

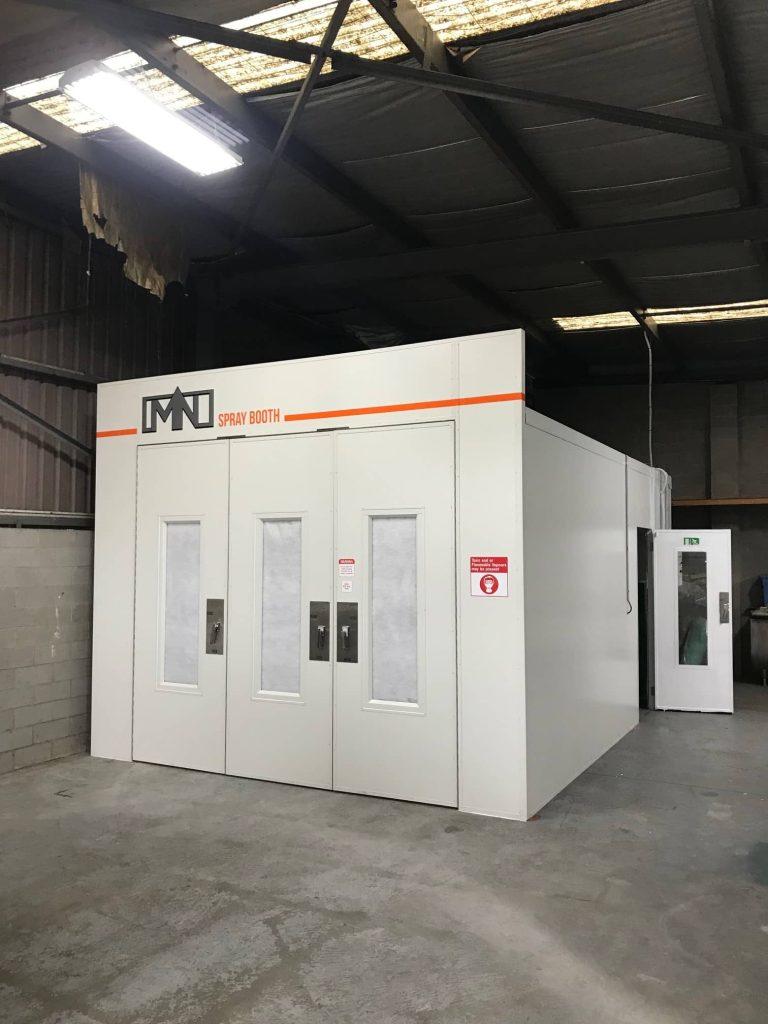

Automotive End Draft Spray BoothGet latest price

Specifications

• Power supply: 415V / 3-phase, 5 core
• Cabin: 50mm premium interlocking EPS panel, Surfmist finish
• Ceiling: 50mm premium interlocking EPS panel, Surfmist
• Base: Existing concrete floor, no excavation required
• Air supply: Extraction only, supply air remote roof mount
• Air exhaust fan: 700mm axial type, 45° pitch impeller, 3kW EXE rated 3-phase motor
• Exhaust filters: 3D Polycomb Paint Pocket
• Entry doors: Trifold filtered doors with laminated glazed glass
• PA/Emergency exit: 50mm premium interlocking EPS panel, single door
• Lighting: LED 6000K daylight tubes, 45° corner integrated rear access light banks
• Control panel: AS/NZS 4114 compliant with integrated pre-purge and post-purge air proving timers
• Air regulator: Wall mounted ½" adjustable type with gauge
• Arrangements: Roof mount or floor mount machinery available

Features

• Fully insulated EPS panelled cabin and ceiling
• Trifold entry doors for wide, easy vehicle access
• 3D Polycomb exhaust filtration for superior overspray capture
• Integrated pre-purge and post-purge timers on control panel
• Optional booth protective wall coating available
• Delivery, installation, operator training & technical dossier included

Applications

• Automotive spray painting and refinishing
• Finishing with paints, glues, lacquers and adhesives
• Any workshop requiring a safe, enclosed finishing environment

Why Choose This Product

• Fully enclosed booth without the cost of a downdraft pit
• No excavation needed — installs straight onto existing concrete
• LED lighting throughout for true colour accuracy
• 12-month warranty included
• 100% Australian Made & AMAG Certified
• Backed by MN Spraybooths sales and service team
