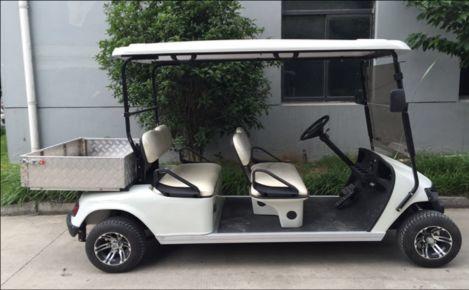

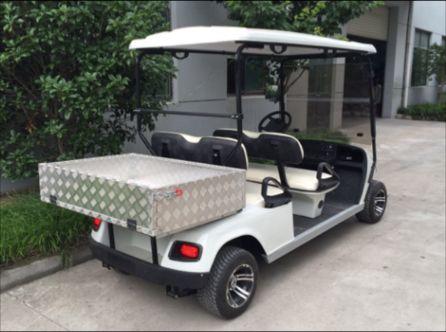

AW Series 4-seater Electric Golf Car with Utility Box | AW2044H04Get latest price

The AW2044H04 Electric Golf Car from the AW Series is a versatile 4-seater vehicle designed for comfortable transportation on golf courses and large properties. Equipped with a spacious utility box, it offers convenient cargo carrying for tools and equipment. This battery-powered golf car delivers quiet, eco-friendly performance with low maintenance needs. Its durable design ensures reliable operation across various terrains. Upgrade your fleet with the AW2044H04 electric golf car for efficient, comfortable, and practical transport.

The compound front suspension system has excellent shock absorption performance, smooth running, and comfortable driving.

The rear suspension adopts the spring-spring shock absorber to adopt high-resilience and high load-bearing leaf spring design. The vehicle has superior load-carrying performance, and the ride is comfortable with a small bumpy ride.

The vehicle design adopts three-dimensional simulation. According to ergonomic design, it is not fatigued to drive and ride comfortably. The control system adopts the main control system imported from the United States, which has under voltage protection and anti-freeway functions.

Standard Body Colours: Pure White, Pure Black, Champagne, Coca-cola Red, Navy Blue, Metallic Green. Custom colours is available with additional cost and lead time

OPTIONALS:

• Laminated windshield
• Laminated windshieldv with Wiper
• 2point seat belt
• Backrest cover in wood finish
• Dashboard in wood finish
• Steering wheel in wood finish
• Glove box door (include two locks) in black plastic – 2 Doors per set
• Glove box door (include two locks) in wood finish (inside and outside) – 2 Doors per set
• Inner rear view mirror – 1 piece per cart in the middle of the windshield
• 12V accessory plug – to be mounted on the dashboard
• 4-wheel hydraulic brake + hand brake
• 4-wheel hydraulic brake, front disc brake, rear drum brake
• Solar Panel 48V, 185W
• On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A
• Option Heavy Duty Plastic Rear Cargo Bed

• MODEL AW2044H04
• System 48V/3KW AC
• Battery 8 x 6V quality lead-acid battery (210AH)
• Motor 3KW motor
• Controller Curtis 1232se
• Passenger cap 4
• Range (loaded) >85 based on flat road at a speed of 20km/h (km)
• Max. speed 32 (12.49:1 gear ratio), 40 (10.25:1 gear ratio)
• Max. loading weight 320 kg
• Net weight 480 kg
• OA Dimensions 3660 x 1180 x 1890mm

• Body and Frame
• Frame Welded steel framework to be treated in dipping (phosphate)+electro-coating treatment
• Body PP plastic front body + PP plastic rear body
• Roof plastic
• Windshield (STANDARD) Windshield, hinged
• Backrest and cushion Rebond seat + artificial leather + plastic armrest
• Floor Rubber
• Dashboard in black plastic forward/reverse switch, battery capacity indicator, ignition key
• Beverage holders 4 cups drink holders
• Glove box door Standard
• Side trim Aluminum
• Inner rear view mirror (OPTIONAL) 1 piece per cart in the middle of the windshield
• Side rear view mirror Two pieces per cart
• Standard Body Off White, Black, Champagne, Red, Navy Blue, Metallic Green (customized color if available, but extra cost should be paid)
• Standard Seat Colour White Seat (customized color if available, but extra cost should be paid)

• Electric System
• Lighting system and horn 2 headlights, 2 front turn signals, 2 LED taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 48V to 12V), horn.
• Reversing alarm standard
• Charger Non-onboard charger, china origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A

• Steering and Suspension
• Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
• Accelerator Stepless speed change
• Suspension system Front and rear plate spring + cylinder hydraulic
• Driving mode Rear axle two stage deceleration, motor direct driving
• Rear axle Integrated, Gear ratio 12.49:1  Integrated, Gear ratio 10.25:1 (OPTIONAL)
• Wheel & Tyre 10×6 Alumimum wheel & 205/50-10 4PR
