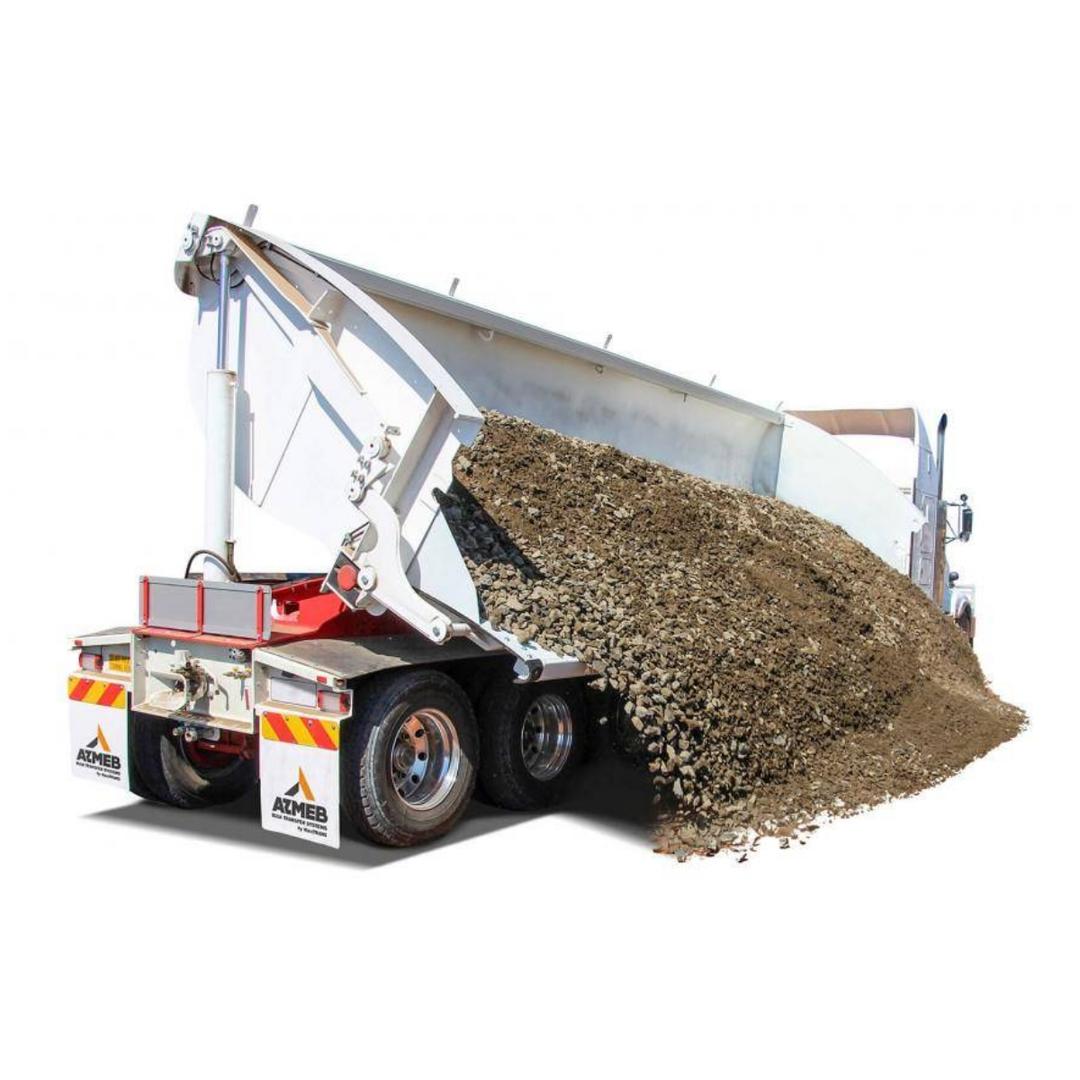

AZMEB Door Side Tipper

Name: AZMEB Door Side Tipper
Brand: Freighter

Supplier: Freighter

The AZMEB Door Side Tipper delivers rapid, reliable unloading with advanced hydraulics and a reinforced design for tough haulage jobs.

Freight

Fast unloading with single double-acting hydraulic cylinders at each end
Automatic, simple door locking on closure
Full-length reinforced rubber hinge—patented, corrosion-resistant, and leak-proof
Strong yet simplistic body design minimises maintenance
Highly reliable with minimal moving parts and durable construction
Over-centre door locks for enhanced safety
Available in Steel or Aluminium constructions
Available in Single, B-Double, and Road Train configurations

Length	5,000mm – 8,730mm
Overall Height	2,900mm – 3,400mm
Cubic Capacities	11m³ – 57m³
Warranty	1 year manufacturer’s warranty

Bowl floor tub made from 450-grade wear plate, removing the need for cross members and increasing strength
HDPE wear pads to chassis
Sealed wiring harness
Hydraulic roll-over tarp with remote control available
Compensating rocker landing feet
Multiple braking and suspension system options
Customisable options: tarp drive systems, non-slip walkways, water tank, side underrun protection, weight gauge, stainless toolboxes, radius guards, wheel nut indicators, dual kingpins, extra ADR-compliant lights
Full service and dealer support Australia-wide

To contact Freighter about AZMEB Door Side Tipper use Get a quote.
