Unscrambles and orients round bottles at up to 100 containers per minute with a fast, tool-less changeover. The Bellsort-100 is a compact, all-in-one automated system engineered to unscramble and orient round plastic bottles for seamless line integration. With an efficient design and advanced orientation technology, it ensures smooth and rapid bottle feed at speeds up to 100 containers per minute, making it ideal for bottling and packaging environments.
Features & Benefits- All-in-one compact footprint for easy installation and operation
- Simple tool-less changeover for quick adjustment between bottle sizes

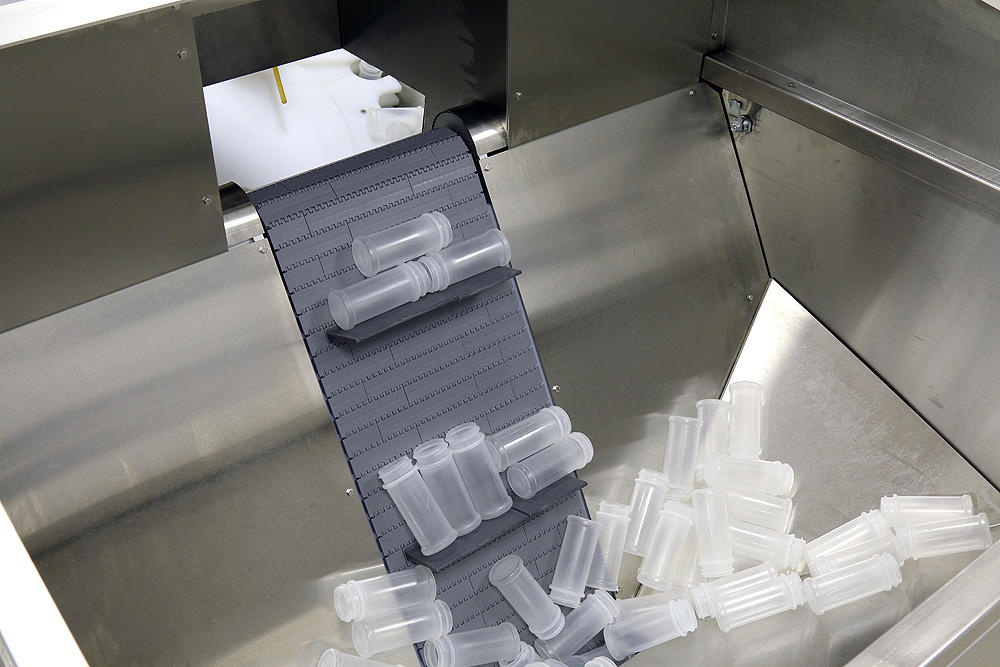

- Integrated large-capacity hopper (approx. 254 L) with built-in elevator

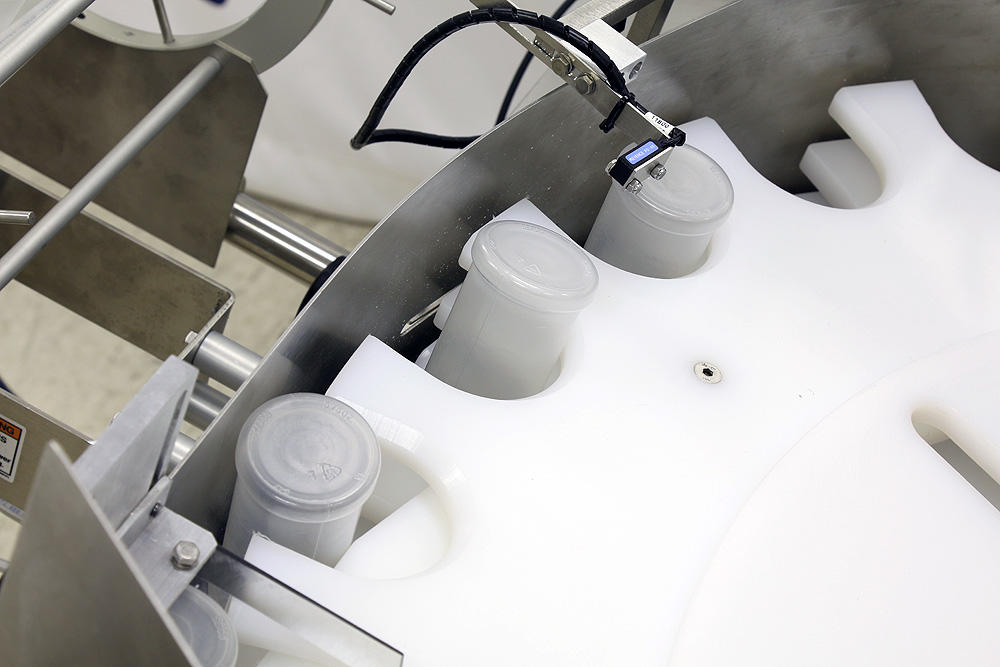

- Bottle orientation determined in the starwheel for reliability
- Inverted bottle detection and air blow-off to ensure correct orientation
- Optional mobility kit, AB PLC upgrade, low-level hopper sensor and stacking light, and 90-degree bottle exit guide
- Slip clutch-protected drive enhances motor and operator safety
- Available with either standard air or ionised air for bottle cleaning
Technical SpecificationsMaximum Output | 100 containers/minute |
Bottle Size Range | Up to 95 mm diameter × 178 mm height |
Hopper Volume | Approx. 254 litres |
Materials | Stainless steel, anodised aluminium, and approved contact materials |
Footprint | Compact, approx. 1.2 metres |
Additional Information- Especially suited for pharmaceutical, nutraceutical, food, beverage, chemical, cosmetic, and diagnostic packaging lines
- Fast setup and ease of use reduce overall downtime
- Designed for long-term durability and minimal maintenance
To contact J.L.Lennard about Bellsort-100 Bottle Unscrambler use Get a quote.
