C-Red2 Lite InGas SWIR CameraGet latest price

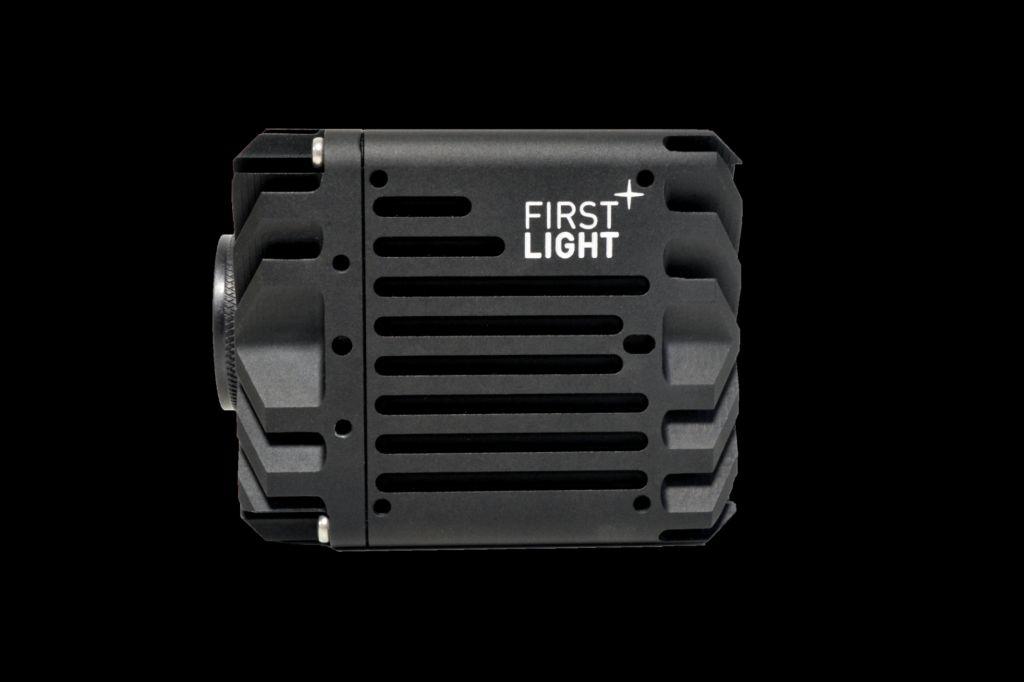

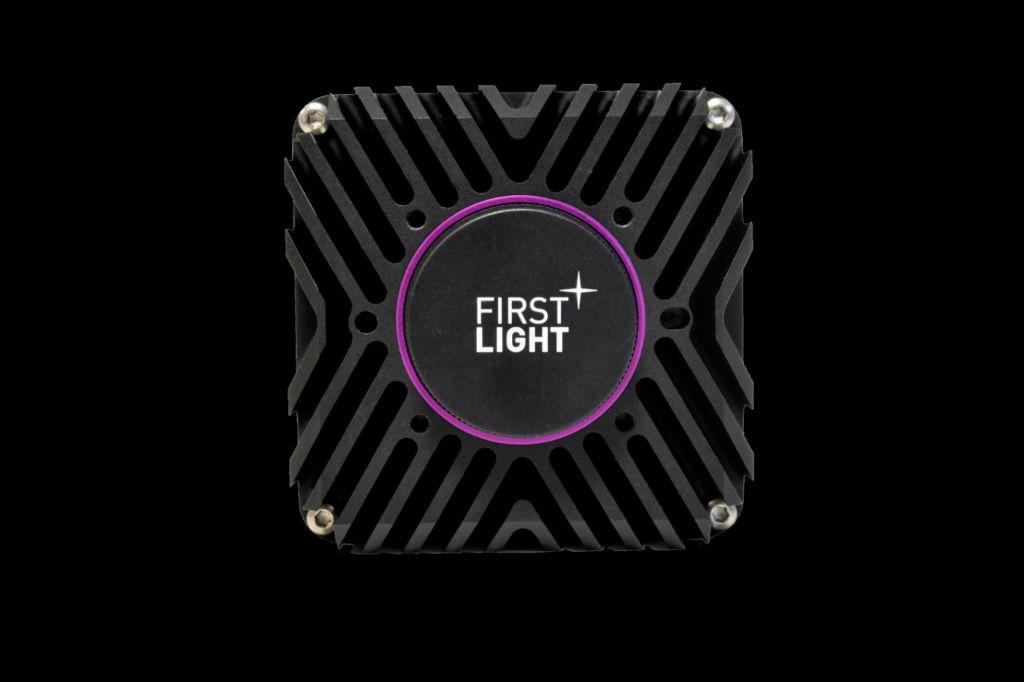

The C-RED 2 Lite from First Light Imaging is the stabilized version of C-RED 2, able to run at 600 FPS with 30 electrons readout noise.
To achieve this performance, C-RED 2 Lite integrates a 640 x 512 InGaAs PIN Photo-diode detector with 15 μm pixel pitch for high resolution, which embeds an electronic shutter with integration pulses shorter than 5 μs.The camera has no fan, and is stabilized. It can also be water-cooled for better performances with an optional cooling plate.

C-RED 2 Lite is specially designed for astronomy, high-end industrial applications, science and surveillance.

Features of this product:

• up to 600 FPS full frame

• 30 electrons read out noise

• Sensor temperature stabilization

• ΔT° between case and sensor: 25°C

• 93 dB linear dynamic range and true 16 bits image

• 640 x 512 VGA InGaAs TECless 15 μm pixels detector

Other Features:

• Wavelength from 0.9 to 1.7 µm and 70% QE
• Electronic shutter <5 μs
• Non uniformity correction
• ROI for increased speed
• USB 3.1 Gen 1 or CameraLink™
• Possible optical interface: C-Mount, CS-Mount
• SWaP optimized: L 78.1 mm x W 65 mm x H 65 mm, 0.460 Kg, 20W max
• Optional: Water-cooling plate for optimized performances
