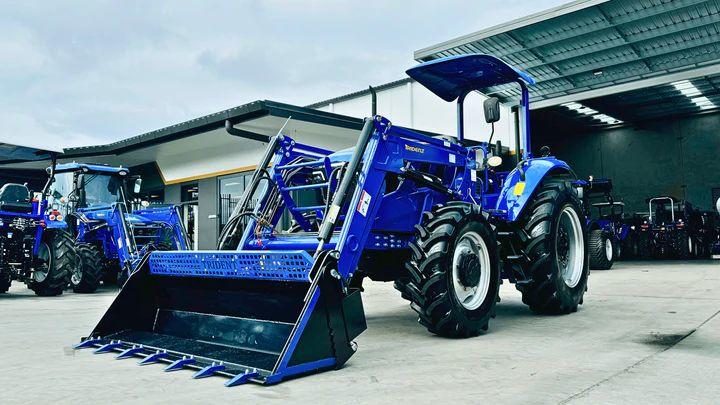

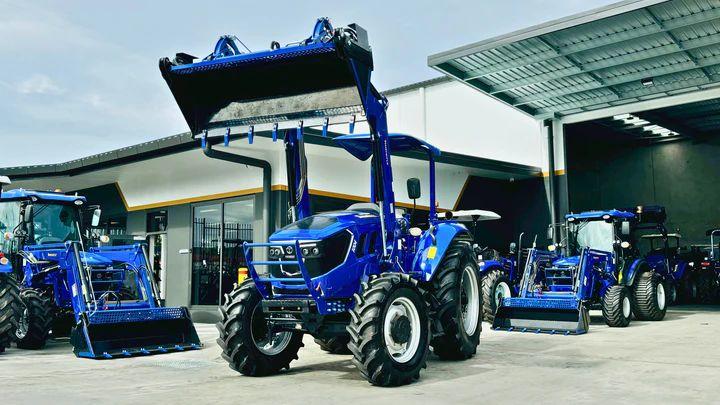

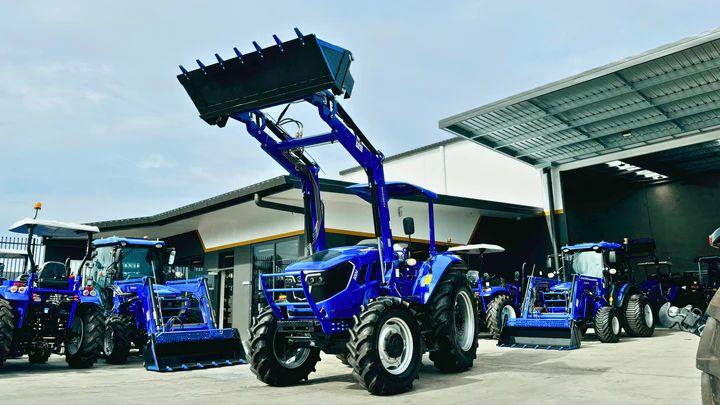

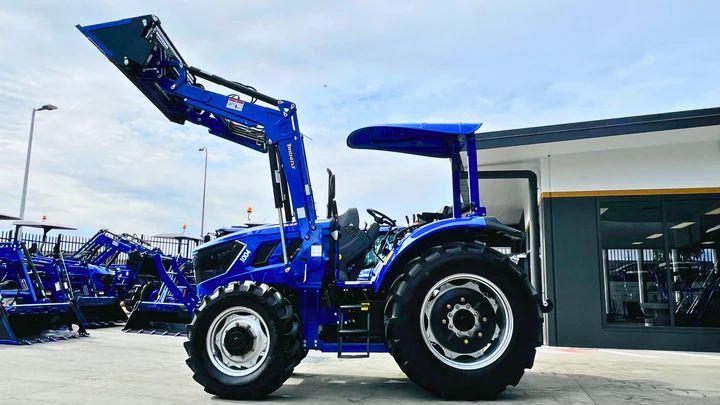

Canopy Farm Tractor 140L | 100Hp Price Guide:$42,990Get latest price

Main features:

• 3PL quick hitch hooks (easy to attach implements)
• 4WD & diff lock
• Power steering
• Gross weight 5,550KG
• 1,500KG front end loader lifting capacity
• Quick release front end loader with euro quick hitch
• Self-leveling 4in1 bucket
• Heavy duty chassis
• 4 cylinder direct injection diesel engine (no ECU)
• Hydraulic up & down 3 points linkage (with floating function)
• High & low 16 forward & 8 reverse gearbox with super high torque creeper gear
• Radial tyres 340/85R24 420/85R34 with rear wheel weights
• Flat & clear deck with side placed gear selectors for comfortable driving
• Fuel tank 140L
• Large radiator
• Ergonomically designed suspension seat
• 540/1,000 dual speed PTO
• Front & rear hydraulic remotes
• Full LED lights
• Bull bar protection
• Roll over protection
• Two-stage dry clutch

Specifications

Engine

• Engine basics: YTO 4-cylinder direct injection
• Engine type: diesel
• Engine displacement: 4.8L
• Number of cylinders: 4
• Rated engine power: 100HP (81/2300 KW/RPM)
• Air filter: dry type
• Top speed: 40KM/H
• Fuel: diesel
• Fuel tank capacity: 140L
• Cooling: water-cooled

Drivetrain

• 16 forward + 8 reverse with creeper gears
• Clutch: 12-inch dual functional LUK clutch
• Drive: rear wheel drive with selectable 2WD/4WD and differential lock
• Differential: closed, planetary reduction bevel gears
• Differential lock: tooth inlay type
• Transfer case: helical bevel gears

Hydraulic

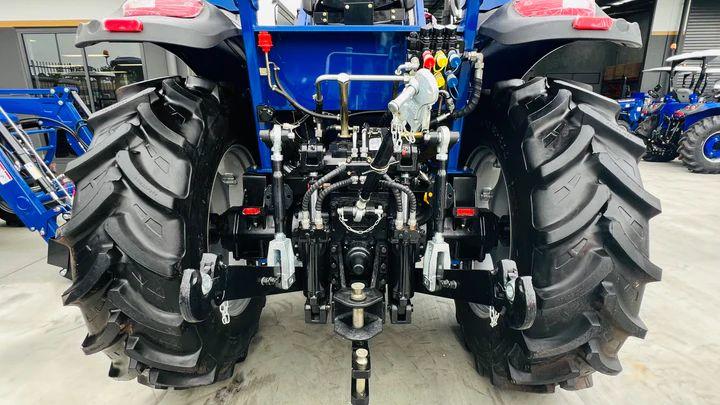

• Hydraulic up & down 3-point linkage (with floating function)
• Remotes: 3 groups at rear 3PL, 1 group at FEL
• Hydraulic output flow: 85L/MIN
• 3-Point linkage: category 2/3
• 3PL lift capacity: 2,000KG max lifting capacity

Dimensions

• Overall weight: 5,550KG
• Tractor length: 5,900MM
• Tractor width: 2,150MM - 2,250MM (adjustable)
• Tractor height: 2,900MM
• Turning circle: 4.9±0.2M
• Ground clearance: 405MM
