Our High-Level Palletizer ensures precise, compact stacking with a robust vertical frame and orienting system. Featuring a PLC for custom patterns, pallet magazine, and conveyors, it’s a flexible, EC-compliant solution for efficient operations.
Description
Documents
Speed - 40-50 cases/min, 40 bags/min
Receive 1-3 days from order

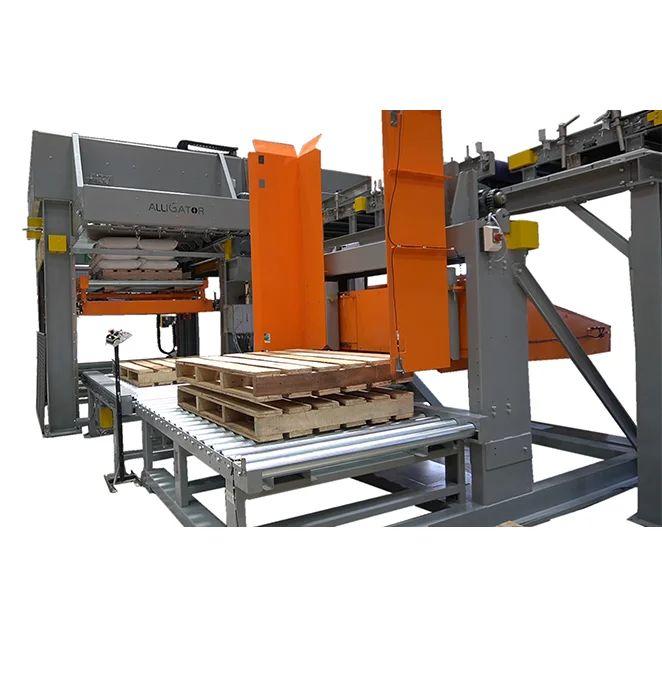

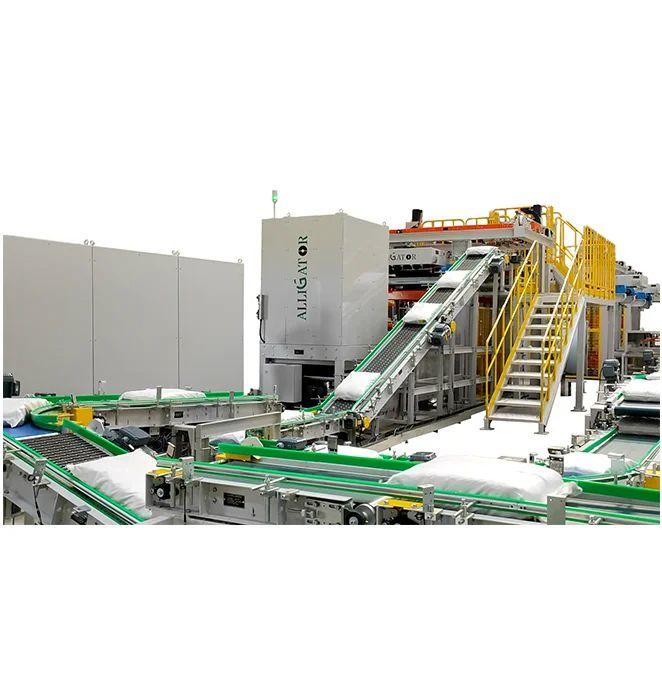

Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area.

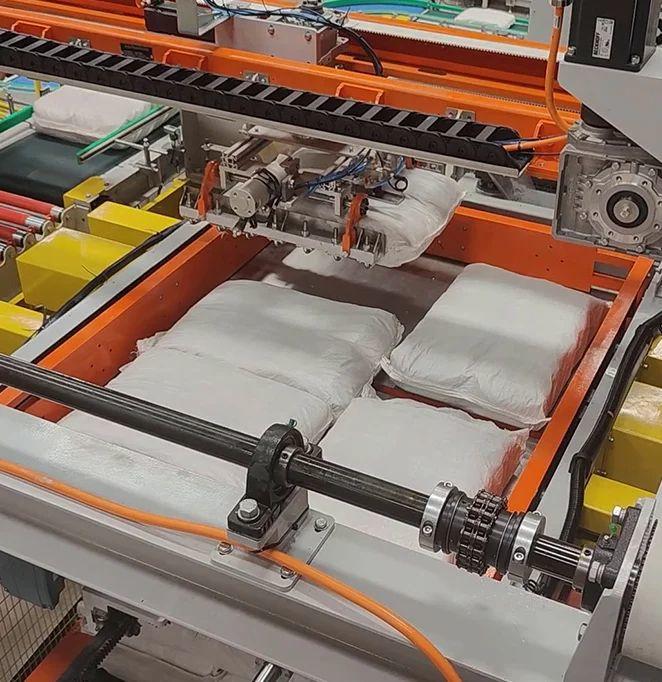

When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer. Flexible and versatile, our palletizer comes with a PLC system that stores different stacking patterns to suit different needs. It also includes a platform for easy access, a magazine for empty pallets, and conveyors for moving pallets in and out, meeting rigorous EC standards.
Specifications
Type
1 in/1 out
Product size range
100mm – 600mm L
100mm – 600mm W
50mm – 400mm H
Payload
5Kg – 200kg
Speed
40-50 cases/min, bags – 40 bags/min
Layout type
Customizable (with limitations)
Product to be handled
Bags, cases, shrink packs, etc.
Features:
Best stacking quality
High-speed and efficient stacking levels
Advanced palletizing technology for optimized performance
Seamless integration with upstream machines
Rugged steel construction ensures durability over many years
Easily accessible components for inspection, adjustments, and maintenance
Variable Frequency Drive (VFD) control of motors for accurate, smooth, and refined motions
Swift and precise turner with assistance for consistent rotation of longer and heavier products
Continuous overhead row pusher with surface plates for gentle product handling and increased throughputs
Quiet electric lift
User-friendly touchscreen controller allowing easy changeover of palletizing patterns or SKUs
Dispenser with a capacity of 10 to 12 pallets
Safety Features:
Light curtains at full-load discharge
Handrails, fences, and trapped key interlocking
Automatic locks on the hoist
Compliant with Category 3, Performance Level D, safety standards
Options:
Sheet dispensers are available to help stabilize loads
Elevating lifts available to match existing infeed or discharge
Expanded pallet dispenser capacity up to 25 pallets or multiple dispensers
Ability to create taller loads to maximize the shipment truck space
