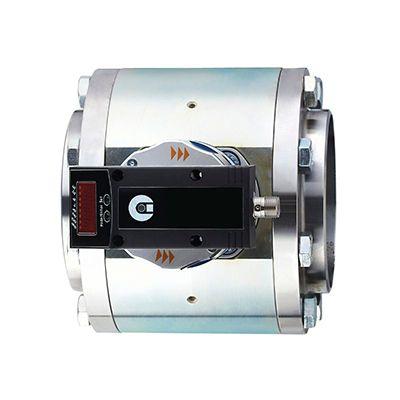

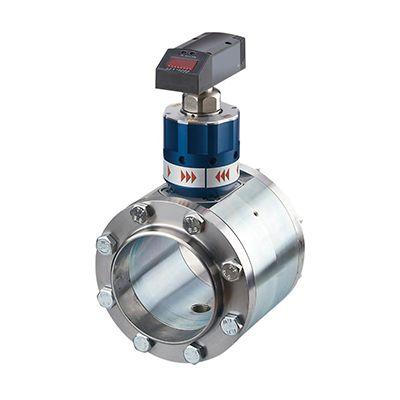

Compressed Air Meter | SDG207
Supplier: ifm efector
For detecting compressed air in industrial use - precise measurement of flow and consumption
Description
Documents
In Stock
Features:
- Precise measurement of flow and consumption
- High accuracy, repeatability and measurement dynamics
- For detecting compressed air in industrial use
- With switching output, analogue output and pulse output
- Clearly visible 4-digit LED display
| Product characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||||||
| Measuring range [m³/h] | 58...17500 | ||||||||
| Process connection | flange DN200 according to:DIN 2448 | ||||||||
| Application | |||||||||
| Application | totaliser function | ||||||||
| Media | compressed air | ||||||||
| Note on media |
|
||||||||
| Medium temperature [°C] | 0...60 | ||||||||
| Pressure rating [bar] | 16 | ||||||||
| Pressure rating [Mpa] | 1.6 | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 19...30 DC | ||||||||
| Current consumption [mA] | < 100 | ||||||||
| Protection class | III | ||||||||
| Reverse polarity protection | yes | ||||||||
| Power-on delay time [s] | 0.5 | ||||||||
| Inputs / outputs | |||||||||
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||||||
| Outputs | |||||||||
| Total number of outputs | 2 | ||||||||
| Output signal | switching signal; analogue signal; pulse signal; (configurable) | ||||||||
| Electrical design | PNP | ||||||||
| Number of digital outputs | 2 | ||||||||
| Output function | normally open / normally closed; (parameterisable) | ||||||||
| Max. voltage drop switching output DC [V] | 2 | ||||||||
| Permanent current rating of switching output DC [mA] | 250; (per output) | ||||||||
| Number of analogue outputs | 1 | ||||||||
| Analogue current output [mA] | 4...20; (scalable) | ||||||||
| Max. load [Ω] | 500 | ||||||||
| Pulse output | consumed quantity meter | ||||||||
| Short-circuit protection | yes | ||||||||
| Type of short-circuit protection | pulsed | ||||||||
| Overload protection | yes | ||||||||
| Measuring/setting range | |||||||||
| Measuring range [m³/h] | 58...17500 | ||||||||
| Display range [m³/h] | 0...21000 | ||||||||
| Volumetric flow quantity monitoring | |||||||||
| Pulse value | 10 Nm³ | ||||||||
| Pulse length [s] | 0,1 | ||||||||
| Accuracy / deviations | |||||||||
| Flow monitoring | |||||||||
| Accuracy (in the measuring range) | ± (3 % MW + 0,3 % MEW) / ± (6 % MW + 0,6 % MEW); (class 141 /; class 344) | ||||||||
| Response times | |||||||||
| Flow monitoring | |||||||||
| Response time [s] | 0.1; (dAP = 0) | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | 0...60 | ||||||||
| Storage temperature [°C] | -20...85 | ||||||||
| Max. relative air humidity [%] | 90 | ||||||||
| Protection | IP 65 | ||||||||
| Tests / approvals | |||||||||
| EMC |
|
||||||||
| Vibration resistance |
|
||||||||
| Mechanical data | |||||||||
| Weight [g] | 41441 | ||||||||
| Materials | PBT-GF20; PC; PC; stainless steel (1.4301 / 304); FKM; pipe section: stainless steel (1.4301 / 304) | ||||||||
| Materials (wetted parts) | stainless steel (1.4401 / 316); stainless steel (1.4301 / 304); ceramics glass passivated; PEEK; polyester; FKM; aluminium anodised; stainless steel (1.4301 / 304) | ||||||||
| Process connection | flange DN200 according to:DIN 2448 | ||||||||
| Remarks | |||||||||
| Remarks |
|
||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection | |||||||||
| Connection | Connector: 1 x M12 | ||||||||
To contact ifm efector about Compressed Air Meter | SDG207 use Get a quote.
