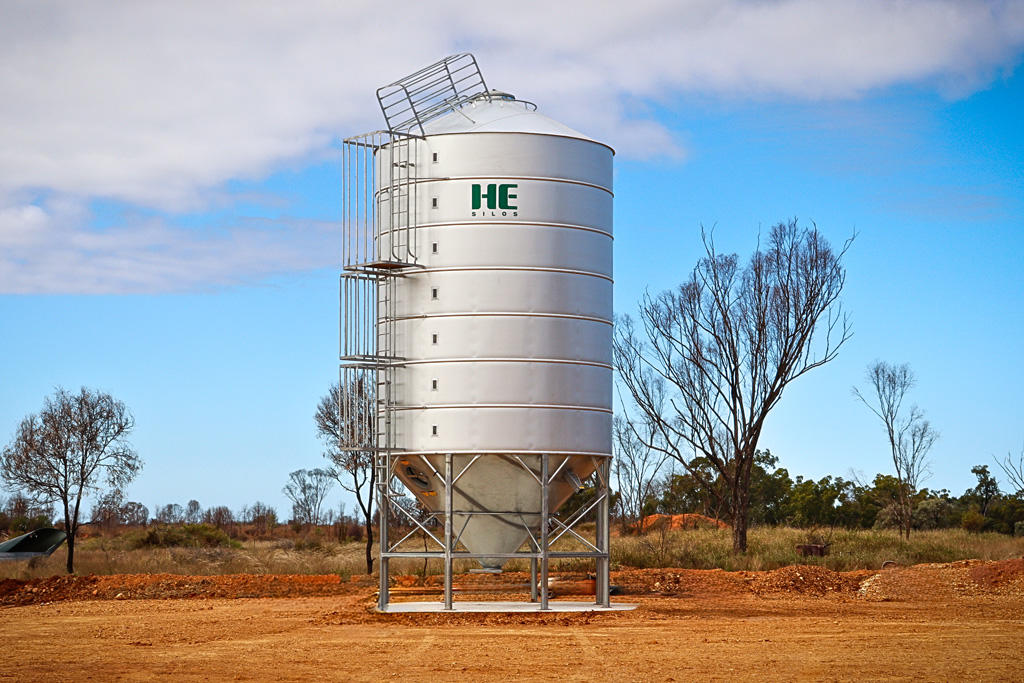

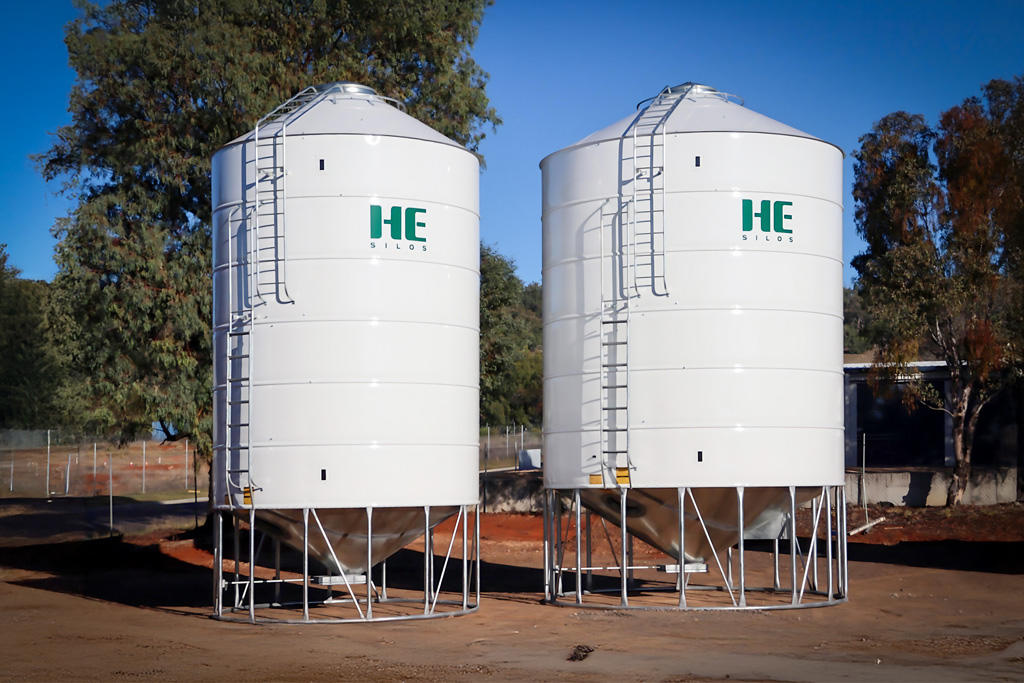

These fertiliser silos are internally coated with a high-quality, two-part epoxy to ensure corrosion protection and long-term storage versatility for fertiliser and grains. The silos are sealed and gas-tight in compliance with Australian standard AS2628, complete with a pressure relief valve. Construction includes a Zincalume barrel and roof, with a galvanised support structure, and all models can be custom designed.
| Model | Capacity (m³) | Tonnes (Approx.) | Height (m) | Diameter (m) | Auger Length (m) | Cone Degree | Cone to Ground (mm) |
|---|---|---|---|---|---|---|---|
| 35m³ | 35 | 26.7 | 5.3 | 3.7 | 9.0 | 40° | 600 |
| 43m³ | 43 | 32.8 | 6.1 | 3.7 | 9.8 | 40° | 600 |
| 52m³ | 52 | 39.7 | 6.9 | 3.7 | 11.0 | 40° | 600 |
| 78m³ | 78 | 59.6 | 7.7 | 4.5 | 13.7 | 40° | 600 |
| 89m³ | 89 | 68.0 | 7.9 | 4.75 | 15.0 | 40° | 550 |
| 103m³ | 103 | 78.7 | 8.7 | 4.7 | 16.7 | 40° | 550 |
Tonnes are approximate, based on granulated urea at 767kg per cubic metre.
To contact Hesilos about Fertiliser Silos use Get a quote.
