Flow Wrapper 10-inch Coloured Display | ReeFlow 300 Series

Name: Flow Wrapper 10-inch Coloured Display | ReeFlow 300 Series
Brand: Rollex Australia

Supplier: Rollex Australia

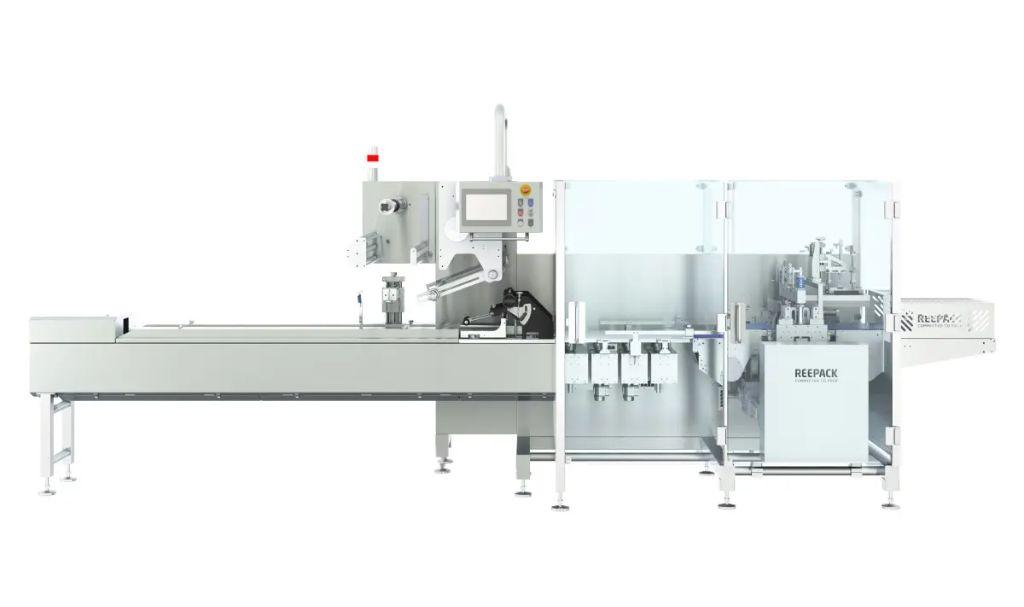

ReeFlow 300 is the box-motion flow wrapper capable of packing heavy and large products (meat cuts, poultry, cheese) in pillow bag, flow bag and M.A.P.

Receive 1-3 days from order

This technology provides flexibility and guarantee quality hermetic seals, available with film reel holder unwinding from the top and bottom. The construction is fully in stainless steel and on a cantilevered frame, its high degree of protection combined with its design made to easily disassemble parts for cleaning, makes the ReeFlow 300 machine an ideal packaging machine for a very wide range of applications in the fresh food industry.

User friendly and is designed to improve the operation and facilitate the work of the operator and maintenance by optimising changeover and cleaning time.

The machine is able to process any kind of non-barrier materials, as well as eco-sustainable ones such as fully recyclable mono-materials, compostable or biodegradable.

Accurate and flexible, made to handle the widest variety of products and wrapping materials. The programmable logic control (PLC) synchronises all movement from the infeed conveyor, the film unwinding and the sealing devices.

Equipped with a large coloured touch-screen interface on lever arm, to set every single parameters and save up to 100 different personalised programs. The software is protected by four levels of access, each with a password.

Manually loaded or integrated in a fully-automatic line, ReeFlow 300 offers a cost-effective and efficient packaging solution.

OVERVIEW

Easy cleaning and adjustment

Full stainless steel cantilevered construction, easy to access and clean. Robust lugged infeed with fast and simple pitch changeover. B models come with food grade flat infeed belt consistent with food safety standards.

Highly efficient packaging

Motorised reel shaft for film width 650mm. Automatic film tensioning and 'variable bag length' detection for highly efficient packaging with no film wastage. 3 independent pair of rollers, for best longitudinal sealing quality. (C-H-F / C-H-C on B models)

Fast and accurate

Long-dwell 250mm jaws, production speed up to 100ppm (200ppm with double jaws), hermetical transversal sealing. Product exits through 900mm motorised belt with adjustable small nose roller.

User friendly

Equipped with 10-inch coloured display: functional and easy to operate. Full electronic solution with 5 motors for automatic format change and fine tuning.
