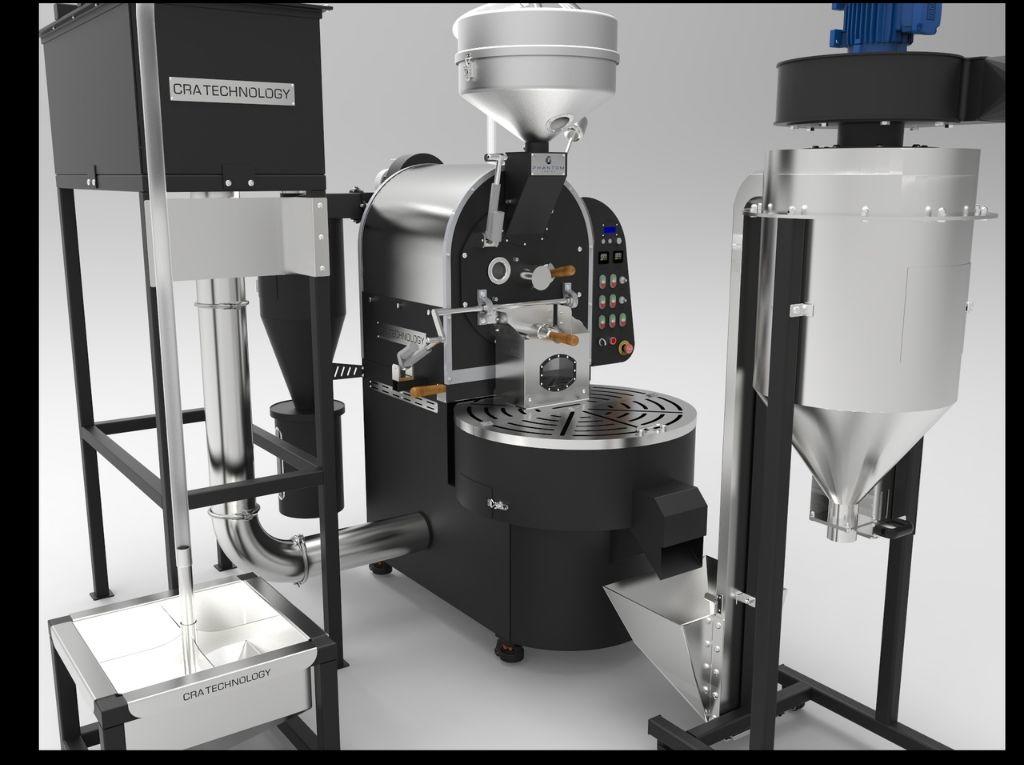

Full Line 22KG Coffee Roaster | Phantom SeriesGet latest price

Key Features:

• Compact and efficient layout design to maximize space usage.
• The most advanced PC integrated roasting control system on the market offering superior control and monitoring of the roast process than traditional PLC systems that are limited in functionality.
• High quality construction with using modern manufacturing processes with minimal tolerances. Advanced CAD design of all parts.
• Double wall carbon steel drum design for optimal heat transfer. 3mm gap between layers ensures perfect heat transfer for homogeneous roasting whilst reducing the chance of the bean tipping.
• Additional insulation in the combustion chamber to ensure more efficient operation and retention of heat.
• High quality Italian made 3 Phase motors and gearboxes with long life bearings. All electric motors are operated through a Variable Frequency Inverter for more efficient and safer control with speed control.
• High quality Omron and Schneider Electrical components.
• Italian made burners with very low turn down ratio for finite control of profiles right down to minimal batch size.
• Equipment is configured to meet the strictest AGA Type B gas and electrical standard ensuring optimal safety and compliance.
• Very quick cooling 2-3mins with high capacity 1.5kw cooling motor.
• Simultaneous roasting and cooling for maximum production output.
• High efficiency Cyclone featuring detachable chaff bucket with level site inspection window.
• Safest roaster on the market with over temperature monitoring of 5 independent thermocouples and cyclone water sprinkler. Cooling tray safety cover and protection on all automated doors to prevent access of moving parts whilst machine is running.
• High efficiency Process Afterburner cleaning all exhaust emissions including the cooling duct.
• Easy installation with only one aftermarket duct required. System comes with connecting pipes to afterburner for both cyclone and cooling exhaust outlets.
• Only one Single Phase 20amp power connection required for the whole system.
• Site glasses for viewing in Drum Roasting, Burner Flame and Hopper Level. Coffee sampler for removing coffee beans and inspecting during the roasting process.

Key Features Control System - Coffee Sweet 2nd Generation

• Next generation Coffee Sweet control system is designed specifically for the Phantom Series of roasters.
• 8 x faster processing speed with 3 x independent processors for increased functionality, additional storage space and future upgrades.
• Monitoring and logging of 4 x Thermocouples (Bean, Drum Atmosphere, Exhaust Air and Cyclone).
• Independent control module on the roaster with its own memory as well as PC connection allows for backup in case of computer issue.
• Independent ambient temperature monitoring and relative humidity sensor.
• 150 synced profile memory with automation. Infinite non-synced profiles can be stored on a PC.
• 0-100 finite control over burner and drum fan. Control in 1% increments allows for more precise control over the roasting process. Burner modulation is from 0-100 in less than a second.
• RS232 or Bluetooth interface with Coffee Sweet PC Software. Full control and automation on PC.
• 5 different automation options allowing the user to operate the roaster to suit their roasting style.
• All main doors for the hopper, drum and cooling tray are controlled through the software allowing the user to completely automate a roast from start to finish.
• Cooling and destoning process controlled through the software. User can adjust setting for automatic cooling process to ensure optimal efficiency and hands off functionality.
• Afterburner is controlled through the software to ensure that is only runs during the roasting process to save on gas usage.
• Full manual override control at any time.
• Real time graphing of all 4 thermocouple temperatures, Gas, Fan, Drum Speed and Rate of Rise on all.
• Vast amount of data collection and display: Load Temp, Dump Temp, Batch Size, Times, Development Time Ratios, ROR (Mean and Mode), 1st and 2nd Crack Development Periods.
• Compare profiles and create reports with cupping results. Detailed analytical features.
• Loaded with many safety features including automatic over temperature control set points on all thermocouples and alarms with high limit cut off. MANY MORE FEATURES……
