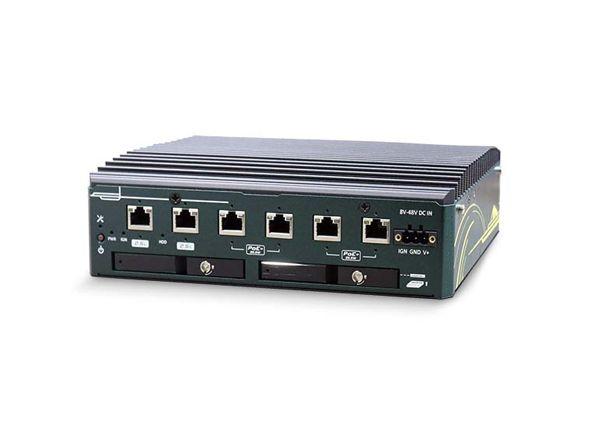

Backplane Systems Technology is pleased to present Neousys NRU-220S series. Is a one-stop AI NVR real-time inference and video transcoder powered by NVIDIA Jetson AGX Orin. Its fanless design and wide[1]temperature operation capability makes it ideal for stationary or mobile deployment applications. It is powered by an NVIDIA Jetson AGX Orin 32GB/64GB system-on-module (SOM) and features an Ampere GPU with up to 2048 CUDA cores, 64 Tensor cores, two NVDLA 2.0 Engines, 275 sparse TOPS (INT8) AI inferences, and simultaneous transcoding of up to 22 1080P video streams.
Each of the four 802.3at PoE+ ports on the NRU-220S can power IP cameras with up to 25.5W and share a 1 Gigabit bandwidth. For surveillance systems requiring more IP camera connections or larger bandwidth connections to the backend, the additional two 2.5GbE ports are perfect. The NRU-220S comes with two front-accessible 2.5" SSD trays for storage expansion in addition to the 64GB eMMC on the Orin module and an M.2 2280 NVMe connection for quick SSD read/write speeds. Moreover, it contains one M.2 B key socket for 4G LTE/5G NR mobile communications as well as two mini-PCIe connectors for CAN, COM, and WiFi modules.
In addition to the connectivity already mentioned, the system has a large selection of NVIDIA AI tools and contemporary deep learning frameworks. For surveillance, preventive maintenance, and intelligent transportation system (ITS) applications, NRU-220S provides real-time video inference to the edge. NRU- 220S is also perfect for in-vehicle deployment because to Neousys' distinctive damping bracket design, ignition power control, and 8-48V wide-range DC power input. Last but not least, the NRU-220S has a derivative variant called the NRU-222S that has M12 connectors for shock and vibration settings that need extremely tough connections, like those found in mining, construction, and agricultural gear.
Neousys' response to the performance requirements for edge AI in a small package with wide-temperature operation is the NRU-220S series.
Key Features:
To contact Backplane Systems Technology about GPU Computer | NRU-220S use Get a quote.
