HGL3106 - Hyrdaulic Swing Beam GuillotinePrice Guide:$70,000Get latest price

Control System

• Cybelec CybTouch 8W touchscreen controller

• Easy-to-use colour screen

• Simple programming for repeat cuts and batch production

• On-screen help and warnings

• USB port for saving and transferring programs

• Wireless backup and software updates

Cutting & Accuracy

• 1000mm motorised backgauge with 0.1mm precision

• Hardened ballscrew system for accuracy and durability

• Quick blade gap adjustment for different material thicknesses

• LED shadow line so you can clearly see your cut line

• Stroke counter to track number of cuts

Blade & Build Quality

• Blades made from Böhler K110 Austrian steel

  • Top blade: 2 cutting edges

  • Bottom blade: 4 cutting edges

• Swinging top beam design for smooth operation

• Built on a rigid frame for stability

• Made in Turkey

Material Handling

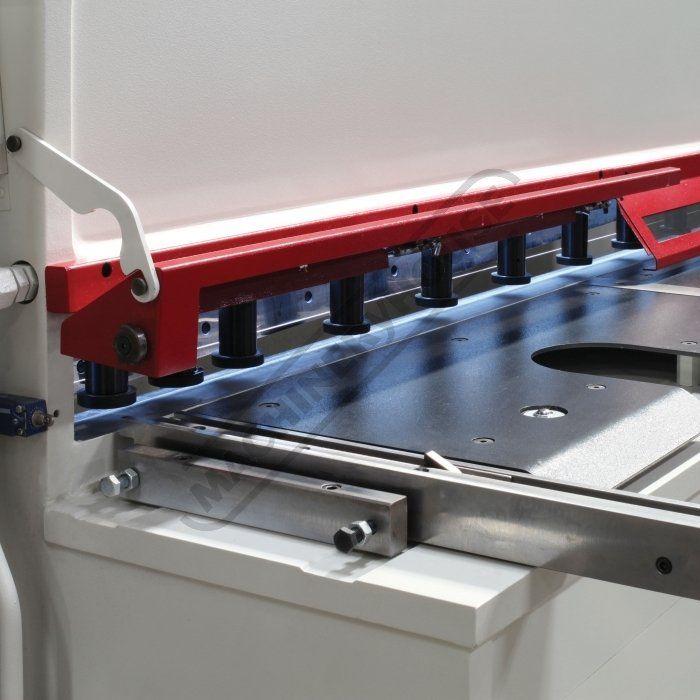

• Ball transfers on table so sheets slide easily

• 1000mm squaring arm with scale and flip stop

• 1000mm front support arms

• Swing-away backgauge for cutting sheets longer than 1000mm

Safety

• Steel front guard with clear view

• Individual hydraulic hold-down clamps for secure material grip

• Rear safety light guards

Capacity

• Rated to cut 6mm mild steel (based on 250MPA hot rolled material)

Pre-Delivery

• Fully run and tested before dispatch

• Hydraulic oil included
