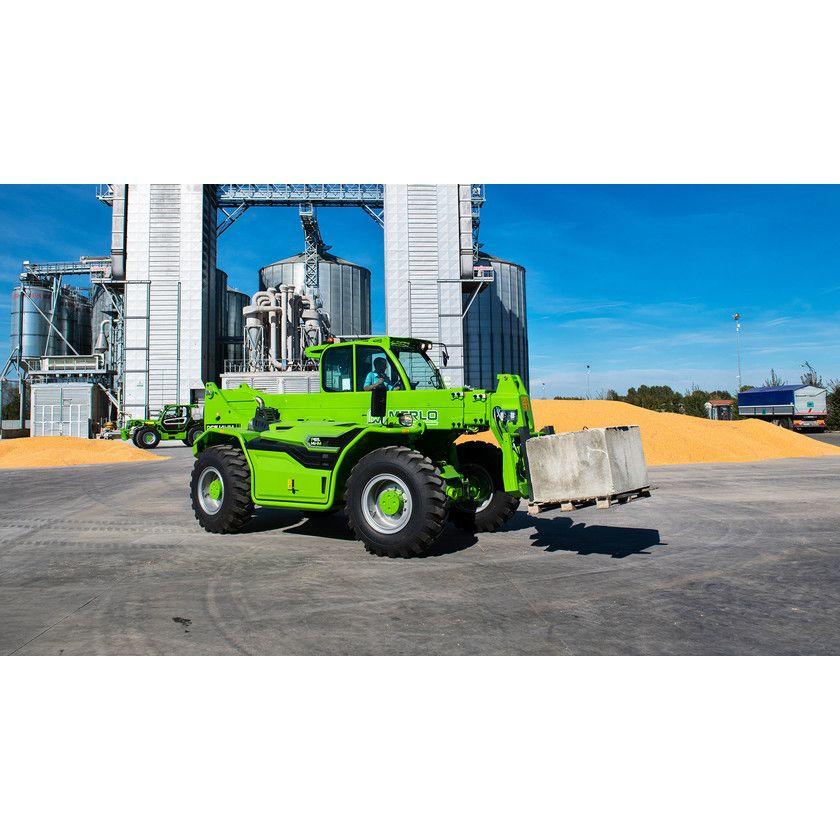

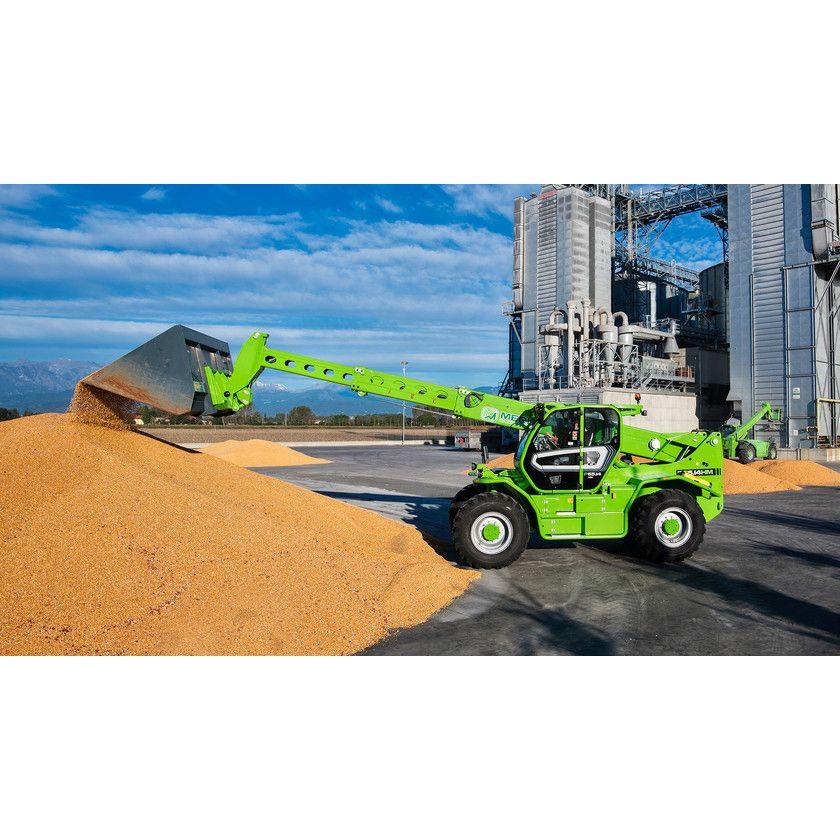

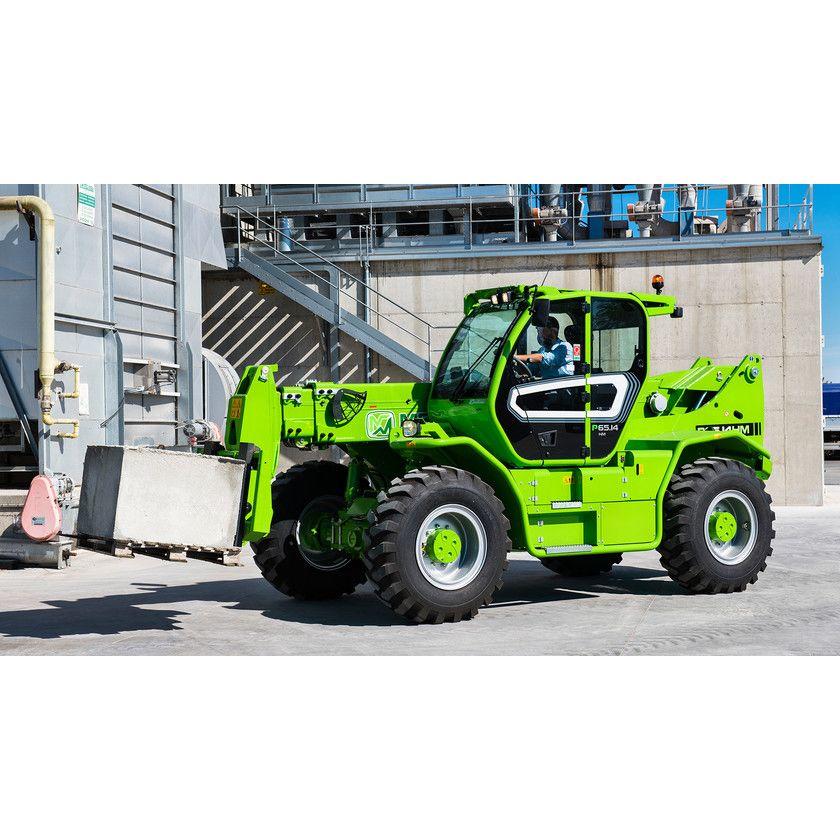

The Panoramic 65.14 HM has been designed to work in the most demanding conditions, where performance in terms of lifting capacity and engine power makes the difference.
The great exclusivity of these machines is that they have managed to maintain compact dimensions, increasing handling and versatility of use.
The new construction concept allows you to customize the models according to the operational needs, thus offering the widest agricultural range with solutions tailored to the customer.
STRENGTHS
PERFORMANCE
Everything at your fingertips
Exclusive precision:
Guarantee of maximum precision in the movements, thanks to the hydrostatic transmission, which ensures millimeter variations in the movements of the machine and in the positioning of the load.
Compact and Lightweight:
Merlo telehandlers are compact and lightweight to reduce maneuvering space and impact on the ground. These features guarantee safety, easy handling, productivity and lower consumption.
Visibility:
Merlo telehandlers are designed to offer the best visibility of the market, thus ensuring faster and safer operations.
Frame leveling:
On this model is available as standard the system for the correction of the inclination, integrated in the frame, which allows the operator to correct the slopes of the ground to work in total safety. In sloping terrain the operator can correct the lateral inclination by 8%, this allows the telescopic arm to be removed perpendicularly to work in conditions of maximum safety.
Lateral arm translation:
This model is equipped with the exclusive lateral translation of the arm, a system integrated in the telescopic arm that allows you to position the load without further maneuvers, saving time, avoiding stress and improving the productivity of the machine.
The system allows you to move the arm sideways up to 750 mm
COMFORT
The best place to work
Quiet and comfortable:
The new generously sized cab is mounted on Silent-block, which drastically reduce vibrations, guarantees the operator maximum comfort and maximum visibility.
Quick change of accessories:
The Tac-Lock system for hydraulic locking of equipment further improves operating comfort.
Protection of the handled load:
The BSS boom suspension is available as an option, which protects the load during transfer and maintains high driving comfort on rough terrain.
SAFETY
Not only sensations
Record-breaking safety:
The integrated Merlo safety system controls the operating parameters in real time, allowing the operator to work in peace.
Certified cabins / Certified protection:
The Merlo cabin is FOPS - Level II - and ROPS certified, to guarantee a top level of safety for the operator.
Exclusive safety:
The exclusive New Generation CDC Dynamic Load Control Merlo safety system automatically detects the type of tool used, the geometric configuration of the machine, the "arm extension and angle" and the load handled.
All information is displayed on the LCD screen, allowing the operator to easily and safely use the telehandler.
EFFICIENCY
Simpler and smarter
Simple and precise operations:
The entire range is equipped with hydrostatic transmission, which makes the work phases easier and more precise. In addition, dry disc brakes allow you to limit energy absorption, reducing the consumption of the machine. Tailor-made mapping:
The unique Eco Power Drive EPD technology automatically controls and adjusts engine revolutions according to operating conditions.
As a result, the engine speed is released from the accelerator pedal. This technology achieves a reduction in fuel consumption of up to 18 percent.
The Eco Power Drive in the TOP version has the modes of use: "Heavy Load" "Eco" and "Speed Control" that allow you to adapt the performance to different operating needs, also includes the engine rpm management function directly from the joystick.
