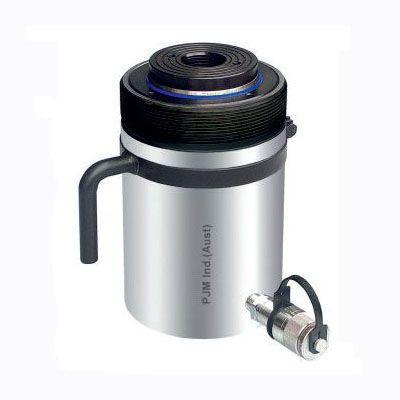

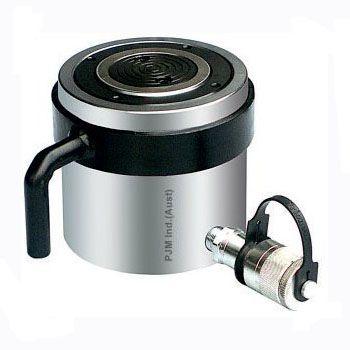

Hollow Ram Plain Ram Double Acting Hydraulic Jacks

Name: Hollow Ram Plain Ram Double Acting Hydraulic Jacks
Brand: PJM Industrial

Hollow Ram Plain Ram Double Acting Hydraulic Jacks For Sale

17 Recent ViewsIn Stock

PJM Industrial manufacture & supply double acting hydraulic jacks for clients throughout Australia.

Double Acting Jacks Features

Applications

As hydraulic pullers with mechanical accessories for removing and assembling bearing bushes, pins, cylinder liners, pulling tubes of heat exchangers, gears and flanges of machinery.
Used as bar / pre-stressing jacks in construction industries

PDH Series Jacks Specifications

P = PJM Industrial, D = Double Acting Oil Return, H = Hollow Ram

Cylinder Capacity (ton)	Stroke (mm)	Model	Effecive Area (cm2)	Oil Cap. (ton)	Closed Height (mm)	Cylinder OD (mm)	Bore Dia. (mm)	C'Hole Dia. (mm)	Ram Dia. (mm)	A/F (mm)	Wt. Approx. (kg)	Suitable Pumps
10	75	PDH 10-75	14.7	110	210	75	50	20	40	28	4.7	PHP-2P4-2-5-E
10	100	PDH 10-100	14.7	147	235	75	50	20	40	28	5.5	PHP-2P4-2-5-E
20	50	PDH 20-50	28.9	144	195	100	70	27	60	58	10.2	PHP-2P4-2-5-E
20	100	PDH 20-100	28.9	288	245	100	70	27	60	58	11.4	PHP-2P4-2-5-E
20	150	PDH 20-150	28.9	433	295	100	70	27	60	58	12.7	PHP-2P4-2-5-E
30	50	PDH 30-50	44.2	221	210	115	85	33	70	67	15	PHP-2P4-2-5-E
30	100	PDH 30-100	44.2	422	260	115	85	33	70	67	18	PHP-2P4-2-5-E
30	150	PDH 30-150	44.2	663	310	115	85	33	70	67	21	PHP-2P4-2-5-E
50	100	PDH 50-100	75.4	754	270	140	110	42	90	87	26	PHP-2P4-2-5-E
60	75	PDH 60-75	91.6	686	260	155	125	54	100	97	30	PHP-2P4-2-5-E
60	100	PDH 60-100	91.6	916	285	155	125	54	100	97	32	PHP-2P4-2-5-E
60	150	PDH 60-150	91.6	1373	335	155	125	54	100	97	36	PHP-2P4-2-5-E
100	75	PDH 100-75	150.2	1126	290	200	165	77	130	126	52	PHP-2P4-2-5-E
100	100	PDH 100-100	150.2	1502	315	200	165	77	130	126	56	PHP-2P4-2-5-E
