Horizontal Single Shaft MixersGet latest price

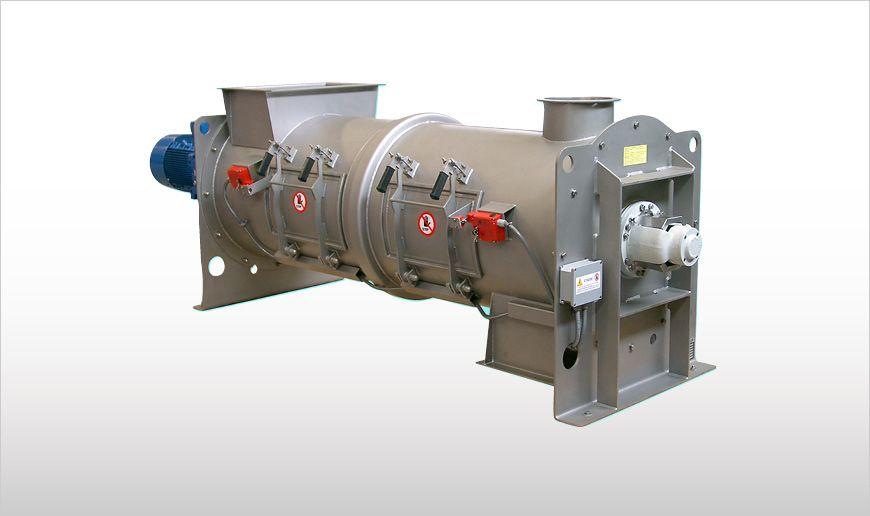

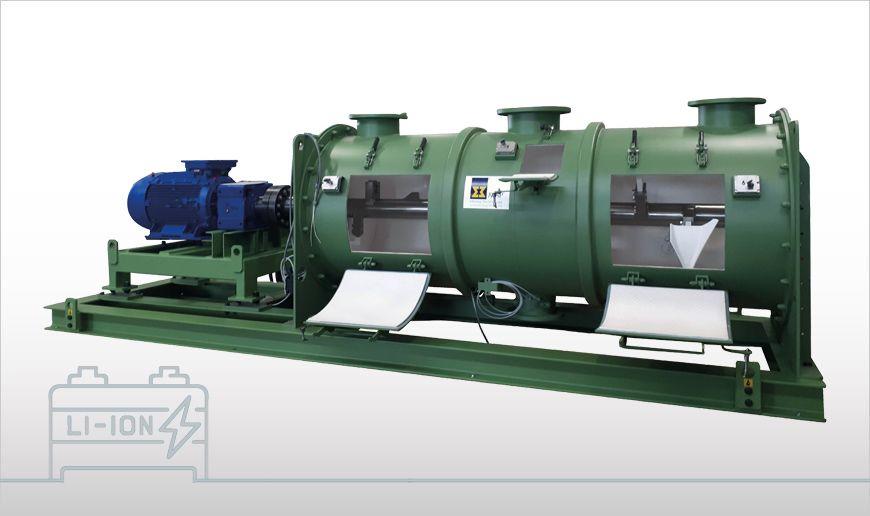

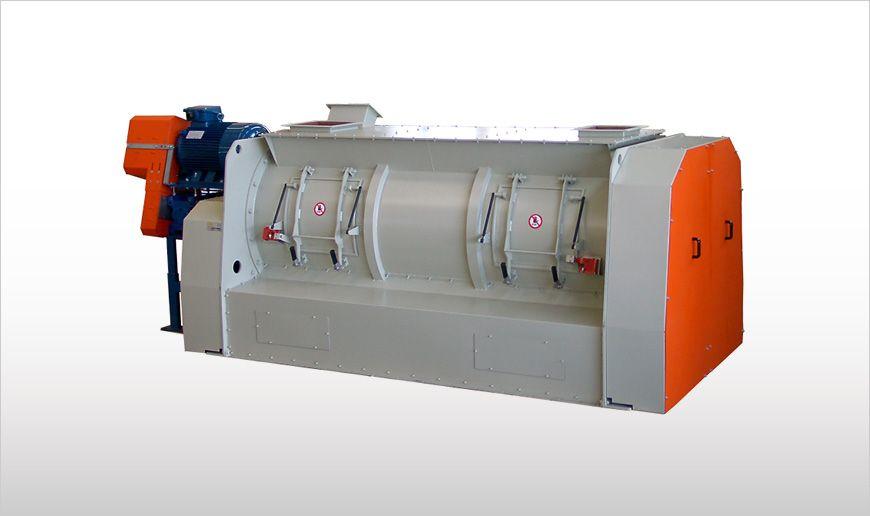

Continuous Horizontal Single Shaft Mixers consist of a cylindrical mixing drum vessel with an inlet and outlet, a venting spout, a full material mixing shaft, drum closing end plates with integrated air or gas-purged shaft seals, and a drive unit with power transmission. Ploughshares or inclined blade-type shovels rotate as mixing tools, ensuring turbulence for precise mixing.

Function: Operates on the principle of mechanically generated fluid bed, lifting components to be mixed into the open mixing area, ensuring quality before reaching the outlet. Suitable for dry bulk solids, dry bulk solids with liquids, sludge, or low-viscosity pastes.

Features:

• Capacity: 2 ~ 1,000 m3/h (1.2 to 590 cfm) depending on recipe and mixer configuration.
• Liquid Addition: Possibility of adding up to 20% liquid.
• End Bearing Assemblies: Various types of air or nitrogen-purged shaft seals or grease sealing.
• Mixing Chamber: Heavy-duty construction from carbon steel, anti-wear steel, or stainless steel.
• Surface Finish: Stainless steel options include grit silking, mirror polishing, and glass bead blasting.
• Mixing Tools: Wide range available, with anti-wear coating options.

Benefits:

• Maximum mixing homogeneity: Ensures consistent quality and uniformity in mixtures.
• Low maintenance: Requires minimal upkeep, reducing downtime and operational costs.
• Durability: Built to withstand demanding industrial environments, ensuring long-term reliability.
• Power adaptability: Power rating can be adjusted to suit specific application requirements, optimizing energy efficiency.
• High uptime: Reliable performance minimizes downtime, maximizing productivity.
• Comprehensive mixing know-how: Backed by decades of expertise, ensuring optimal mixing solutions for diverse applications.

Options:

• Special anti-wear surface treatment: Enhances durability and extends the lifespan of mixer components.
• High-speed choppers: Provides additional mixing capabilities for specific applications.
• Liquid injection device: Enables precise control over liquid addition for tailored mixing processes.
• Pneumatic sampling device: Facilitates sampling for quality control and process monitoring.
• Pneumatic control panel: Allows for convenient and efficient operation of mixer functions.
• Heating / cooling jacketed mixing chamber: Provides temperature control for sensitive materials or process requirements.
• PT 100 temperature probe on jacketed mixing chamber: Enables accurate temperature monitoring and control during mixing operations.
