Industrial LTE Remote Network Management Router - REX100 LTE

Name: Industrial LTE Remote Network Management Router - REX100 LTE
Brand: Ti2 Pty Ltd

Supplier: Ti2 Pty Ltd

Ethernet participants, such as PLC control systems, can be reached with the REX 100 industrial routers, irrespective of the manufacturer.

LTE, Remote Management, PLC Connect

23 Recent Views

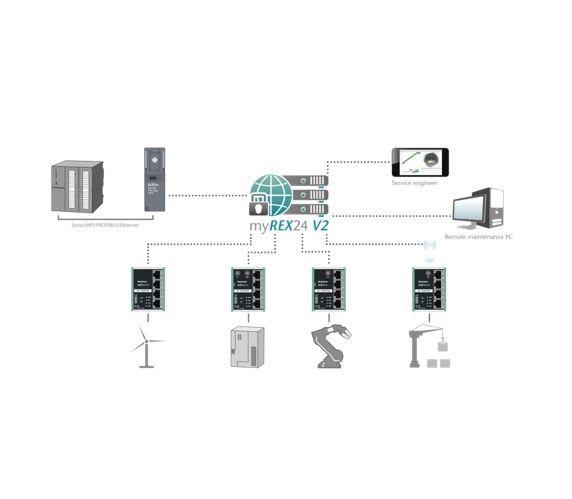

The REX 100 routers are systematically designed to operate in conjunction with the myREX24 V2 portal: All programming and remote maintenance is carried out exclusively through the portal.
With the digital inputs, alarms can be sent via the myREX24 V2 portal as SMS and e-mail.
The USB host port present in all devices enables the connection of USB devices (e.g. programming port of a drive) via the remote maintenance tunnel (USB-over-IP).

The REX 100 LTE is equipped with an LTE modem with which the connection to the myREX 24 V2 portal is established. Additional Ethernet participants can be connected at the router via the integrated 3-port switch. For data transmission, our industrial router uses an encrypted VPN tunnel on the basis of the secure OpenVPN protocol.

The LTE modem used supports use in Europe and Asia. For using the router in North America, please use the "REX 100 with LTE modem for North America" (700-875-LTE11). In general, before using an LTE router, please compare the LTE frequency bands of the selected device with the supported frequency bands of the provider in the country of use. We will be happy to help you.

Integrated firewall
Digital inputs for establishing a connection and issuing alarms
USB-over-IP
Space-saving compact size
Integrated 3-port LAN switch
Additional WAN port
Secure OpenVPN remote maintenance access via myREX24 V2 portal
Supports all of the usual mobile communications standards and is downwards-compatible where network coverage isn't present
With integrated LTE modem
5G Ready

General information
	Order number	700-875-LTE51
	Article name	REX 100 LTE, 3 x LAN (switch)/1 x WAN/1 x LTE-Modem (EU- & Asia-Version)
	Scope of delivery	REX 100 LTE, Quick Start Guide
	Dimensions (DxWxH)	37 x 58,5 x 76,5 mm
	Weight	Approx. 130 g
Number of inputs \| type		2 \| 24 V (DC), as per DIN EN 61131-2 Type 2
WAN interface
	Number	1
	Type	10 Base-T/100 Base-T
	Connection	RJ45 socket
	Transmission rate	10/100 Mbps
GSM modem
	GSM-Modem	Multiband GSM/GPRS/WCDMA/LTE data interface
	Antenna terminal	SMA socket (exterior thread)
	SIM card type	Standard SIM, 1.8 V/3 V
	GSM frequency bands	GSM 900, DCS1800
	UMTS frequency bands	B8 (900), B2 (2100)
	LTE frequency bands (MHz)	800 (B20), 900 (B8), 1800 (B3), 2100 (B1), 2600 (B7)
	Transmit power	Class 1, E2, 3, 4
	Data transmission rate	HSxPA+ (Uplink max. 5.76 Mbps \| Downlink max. 42.0 Mbps); LTE (Uplink max. 50 Mbps \| Downlink max. 150 Mbps)
LAN interface
	Number	3
	Type	10 Base-T/100 Base-T
	Connection	RJ45 socket
	Transmission rate	10/100 Mbps
USB interface
	Protocol	USB 2.0 host
	Connection	USB A socket
Status indicator		4 LEDs, function status 8 LEDs, Ethernet status
Voltage supply		24 V DC, 18–30 V DC
Current draw		Max. 200 mA with DC 24 V
Power dissipation		Max. 4.8 W
Ambient conditions
	Ambient temperature	-40 °C ... +75°C
	Transport and storage temperature	-40 °C … +85 °C
	Relative air humidity	95 % r H without condensation
	Pollution degree	2
	Protection rating	IP20
	Certifications	CE
CE
	RoHS	Yes
	REACH	Yes
