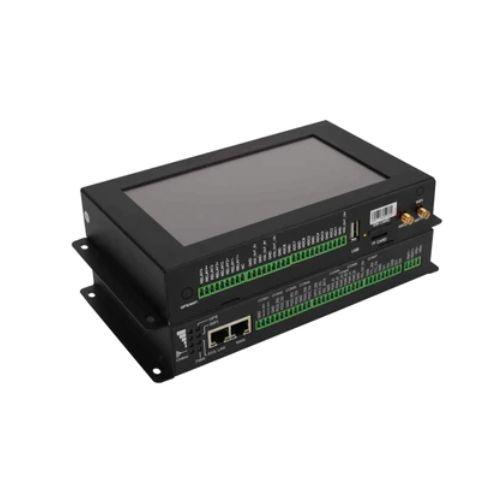

IoT Edge Gateway | TG462 Industrial Cellular 4G/3G Touch Screen Get latest price

The TG462/TG462S Industrial cellular 4G Edge Gateways are designed for connecting diverse types of field sensors and equipment to cloud via LTE/4G/3G cellular network, which is suitable for IIoT and M2M applications that require secure and rugged LTE connectivity in harsh environment, such as water&waste water, oil&gas, industry 4.0, smart city, vending machines, etc.

With rich interfaces, includes Ethernet ports, RS232/RS485, digital inputs, analog inputs, relay outputs, I2C, power output, USB, GPS, WIFI, etc., The TG462/TG462S Edge Gateways allow users to integrate legacy systems with modern sensors. With high-performance 32-bit ARM-based CPU, Modbus RTU/TCP, MQTT, TCP/IP, and customized protocols, as well as up to 1G flash and 32G micro SD local data storage, enables users to collect, store and process data at IoT edge network.

Besides, TG462S embedded with a 7inch HD TFT touch screen provides a better user experience for field data display and maintenance. The LTE CAT 6/CAT4 and VPN provide ample bandwidth and secure connectivity for transferring field data to a remote server.

Features of this product

• High-performance ARM-based CPU
• 2-RJ45, 4-RS232, 3-RS485, 4-DI, 8-ADC, 4-Relay, 5-Power Output, 1-I2C, 1-TTL, USB
• 7'' HD Touch screen (Only for TG462S)
• Up to 1GB flash, 1-Micro SD card supports up to 32GB data and program storage
• LTE CAT 6/CAT4* provides ample bandwidth for high data demand
• GPS* and WIFI*
• Capacity of collecting, processing and storing data locally, and transferring the data over the cellular network
• Easy to use and program the gateway, customizable for your applications
• Secondary Customization and OEM/ODM are available

Inclusions of this product

• TG462 Gateway Host
• Power Adapter (DC 12V/1.5A)
• 2 x Cellular Antennas (Male SMA)
• Console Cable (RS232)
• Ethernet Cable (1 meter)
• Terminal Blocks
