Large Grader | SG27Get latest price

Specifications of this product

• Engine: Weichai WP7G270E301, 270 hp @ 2200 rpm
• Torque: 1,100 N·m @ 1300-1500 rpm
• Transmission: 6 forward, 3 reverse speeds
• Moldboard: 3,965 mm wide, 500 mm max cutting depth
• Hydraulic System: 18 MPa relief pressure
• Fuel Tank Capacity: 340 L
• Operating Weight: 18,500 – 19,400 kg (depending on configuration)

Features of this product

• High-Power Weichai Engine: 270 hp, 7.47L engine designed for consistent performance and fuel efficiency.
• Large Moldboard: 3,965 mm moldboard with 500 mm cutting depth for precise grading.
• Powerful Traction: 99 kN max traction for efficient operation in demanding conditions.
• Versatile Transmission: Fixed-axis electro-hydraulic control transmission with six forward and three reverse speeds.
• Precision Steering: Front wheel steering angle of ±45° and articulation angle of ±25° for superior maneuverability.

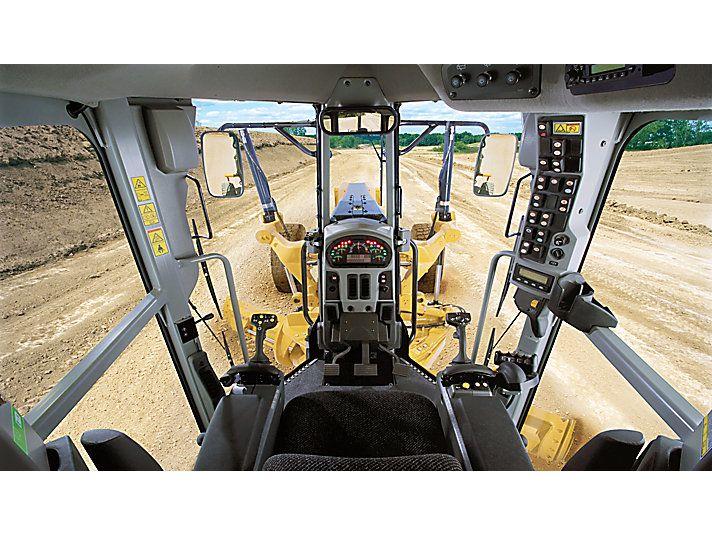

• Operator Comfort: Ergonomic cab design, with adjustable seating and enhanced visibility.
• Durability and Reliability: Operating weight of up to 19,400 kg ensures stability and long-term durability.
