Loading BellowsGet latest price

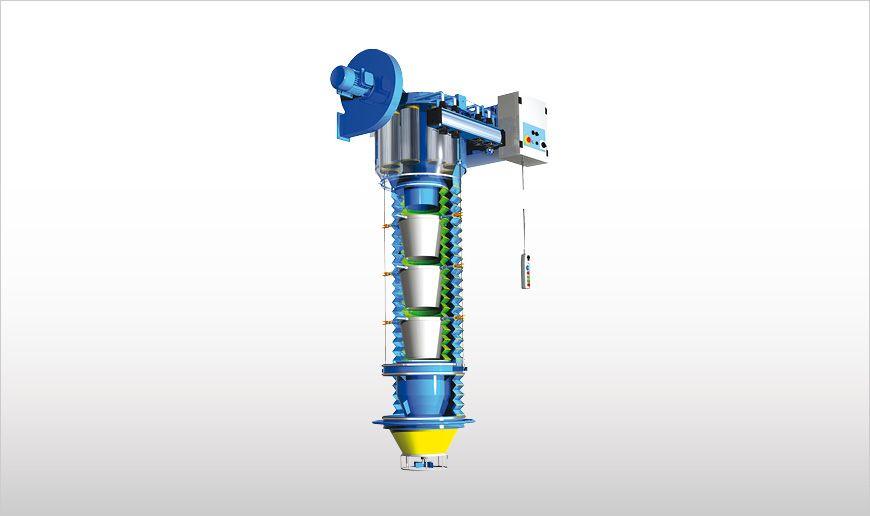

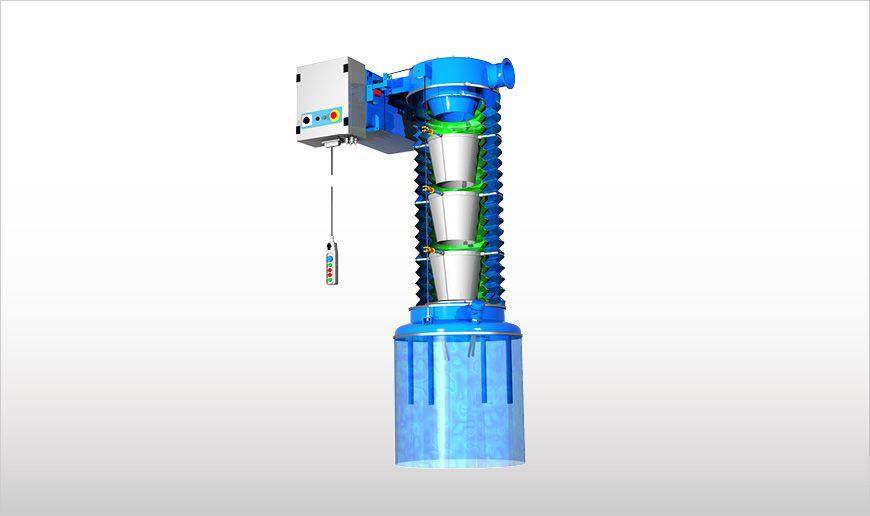

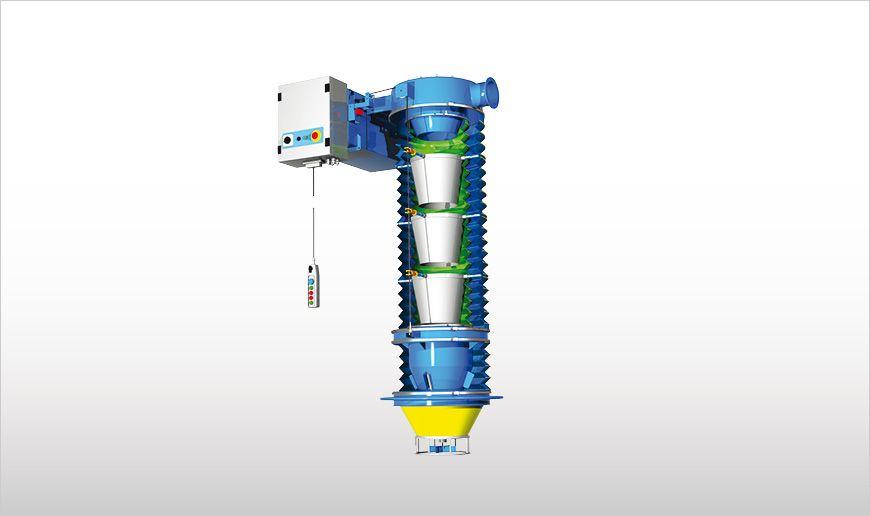

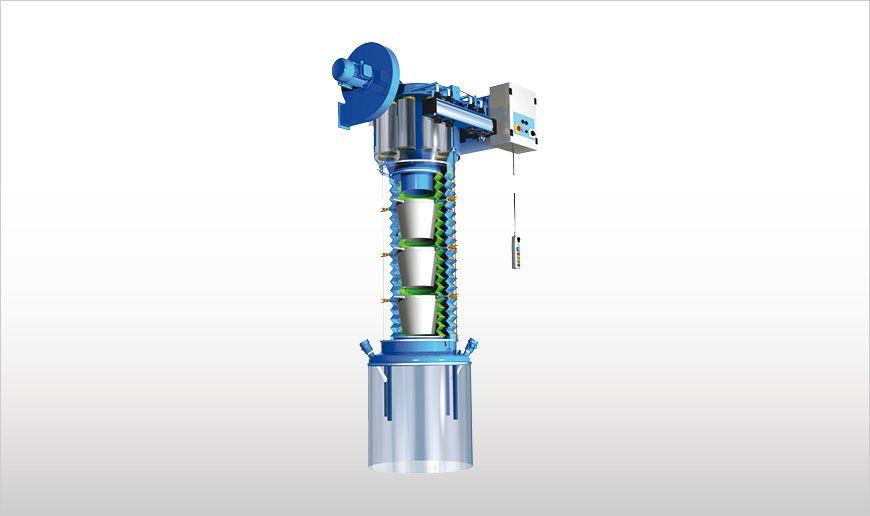

These loading bellows are meticulously designed for dust-controlled loading of dry, dusty bulk solids into tankers. Equipped with inner tapered cones to channel material flow and outer bellows for dust extraction, they guarantee efficient and clean loading operations. The spouts feature a SINT engineering polymer-coated cone for a secure connection to the tanker inlet.

FUNCTION

The loading process begins with the Loading Bellows lowering from a stand-by position towards the tanker's inlet spout. Upon contact, the bellows outlet cone seals perfectly, while the integrated filter cartridges extract dust through the external bellows. A level monitoring device ensures optimal loading, signaling when the tanker reaches maximum capacity and initiating the closure of the silo outlet valve. After loading, the bellows retract, and a preset cleaning cycle ensures thorough dust removal.

FEATURES

• Inlet Diameter: 300 mm
• Maximum Throughput Rate: 250 m3/h
• Operating Temperature: -40 ~ 150 °C
• Filter Surface: 10 m2
• Flexible neoprene chute covered with Hypalon®
• Reverse cone with inside level control
• Two lifting cables outside the material flow

BENEFITS

• Built-in dust filter for reduced emissions
• Weather-proof, durable, and temperature-resistant chute
• Precise level control for efficient loading
• Cable design ensures obstruction-free operation

OPTIONS

• ATEX version available
• Various chute and fabrication materials
• Control panel with remote control
• Different types of level indicators
• Outlet vibrator
• Anti-spillage device
