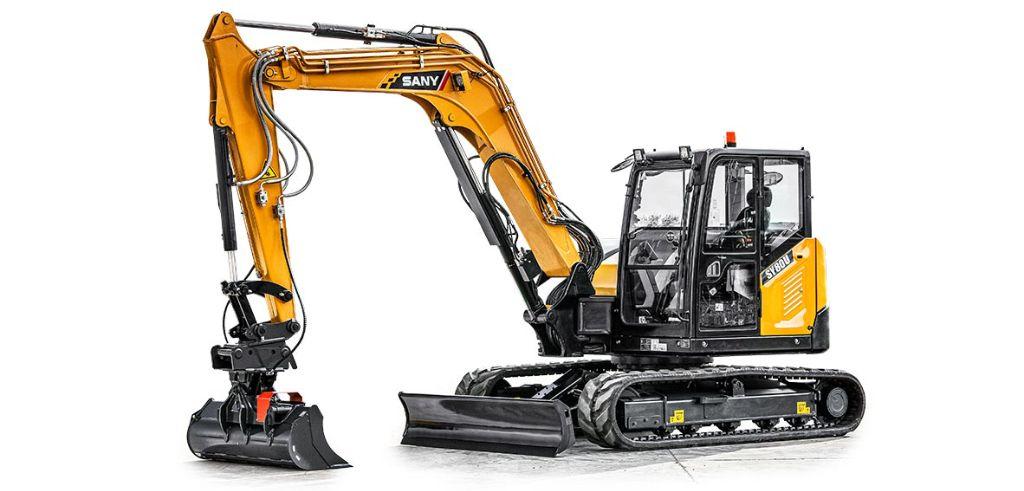

Medium Excavators | SY80UGet latest price



The SANY SY80U delivers outstanding performance and precision in the compact excavator class. Perfect for digging, loading and crushing it is equipped with a refined Yanmar 4TNV98C engine producing 53.7 kW at 2,100 rpm, it combines high torque with exceptional fuel efficiency for sustained productivity in demanding applications. The short tail-swing design enhances manoeuvrability in tight spaces, while a reinforced undercarriage and optimised hydraulic system provide stability and precise control under heavy load.

Built for civil construction, utilities, and infrastructure projects, the SY80U embodies SANY’s engineering commitment to durability, operator comfort, and efficiency — setting the benchmark in the 8-tonne class.

Key Features

• Zero-swing
• Optimised load-sensing hydraulics
• Reinforced x-frame structure
• High-flow auxiliary circuits
• Advanced cooling system
• ROPS/FOPS pressurised cab
• LED work lights & rear camera
• Ground-level service access
• Quick Coupler (optional)
• Additional 260kg counterweight (optional)

General Information



• Weight

8800 kg

• Standard bucket capacity

0.28 m³

• Transport length

7010 mm

• Transport width

2220 mm

• Height over cabin/ROPS

2550 mm

• Engine

YANMAR 4TNV98CT-VSY

• Rated Power

53.7 kW

• Engine Revolutions

2100 rpm

• Emission Stage

V

• Max. digging depth

4535 mm

• Max. digging reach

7920 mm

• Min. Swing radius

2435 mm

• Bucket digging force (ISO)

62.3 kN

• Arm digging force (ISO)

40.5 kN

• Max. oilflow

190 l/min
