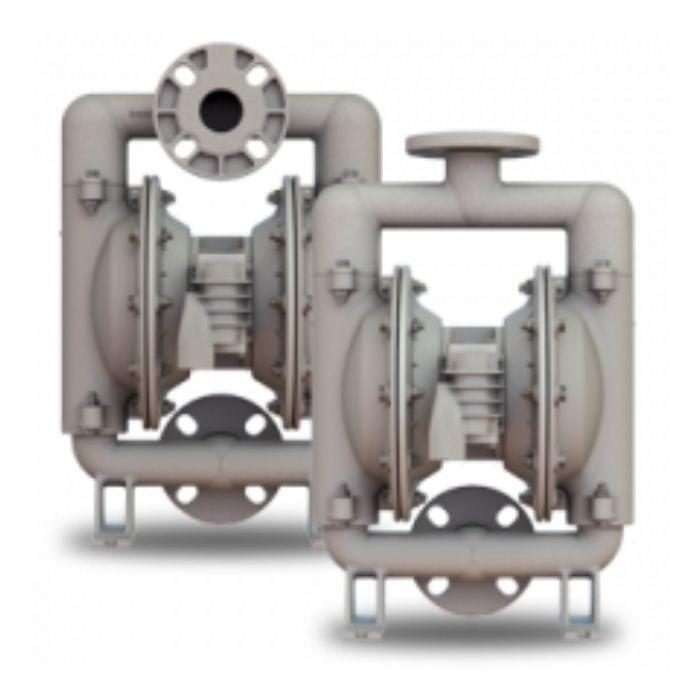

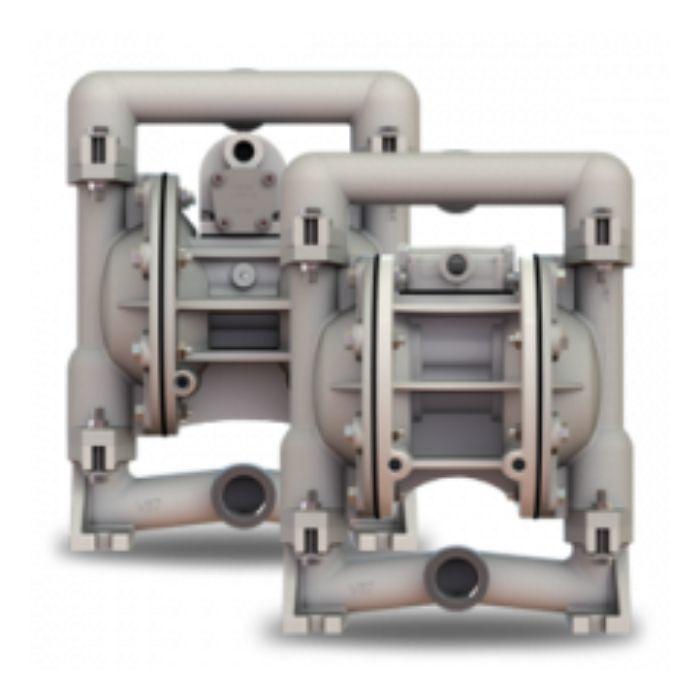

Metallic Bolted Ball Valve PumpGet latest price

Versa-Matic ® exclusively offers the revolutionary Elima-Matic ® air distribution system, which virtually eliminates pumping problems and ensures that your operations run smoothly. The high quality of Versa-Matic pumps, combined with the Elima-Matic air distribution system delivers an optimum AODD pump experience.

Bolted metallic pumps are offered in aluminium, cast iron, stainless steel, hastelloy C in a bolted leak free design.

Performance Criteria:

• Capacity: To 1060 l/min
• Head: To 8.6 bar
• Temperature: To 150°C
• Viscosities: Highly viscous
• Sizes: ¾” to 3”

Models, Sizes & Performance:

• E7 - ¾"
  • Features the exclusive Elima-Matic® air valve system
  • Shares standardized parts with the E5 1/2″ pump line
  • Offers metallic or non-metallic air sections
  • Can be grounded (some models)
  • Features leak-free bolted construction
• E1 - 1"
  • Is available in either plastic or metal
  • Supplies a corrosion-resistant air section
  • Provides multiple porting options
  • Is self-priming
  • Offers center port and split manifolds on plastic bolted pumps
  • Offers UL listed models on bolted metallic pumps
• E4 - 1 ¼"
  • Is available in either plastic or metal
  • Supplies a corrosion-resistant air section
  • Is self-priming
  • Provides dimensional interchangeability with Wilden 1-1/2" pumps
  • Offers horizontal discharge model on bolted metallic pump
• E40 - 1 ½"
  • Makes maintenance easy with a removable air valve sleeve and modular pilot spool design
  • Advanced flow-through castings design with flow rates up to 123 GPM (465 LPM)
  • Offers leak free bolted design for confidence when transferring low viscosity mediums
  • Available with several extended-life diaphragm styles to choose from such as the patented Versa-Dome™, and PTFE FUSION™
  • Designed to be dimensionally interchangeable with the Wilden® aluminum PX400
  • Easily placed into existing Wilden® installations at virtually no additional set up cost to the end user
• E2 - 2"
  • Is available in either plastic or metal
  • Avoids blow-by when the pump is online but not in use
  • Is self-priming
  • Provides dimensional interchangeability with Wilden™ 2" pumps
  • Offers horizontal discharge model on bolted metallic pump
  • Available in threaded or flanged connections, drops into hard piped installation/application
• E3 - 3"
  • Is available in either plastic or metal
  • Can handle infinite variable flows up to 90% solids
  • Is self-priming
  • Provides dimensional interchangeability with Wilden 3" pumps
  • Offers screen mount on aluminum model
  • Available in threaded or flanged connections, drops into hard piped installation/application
