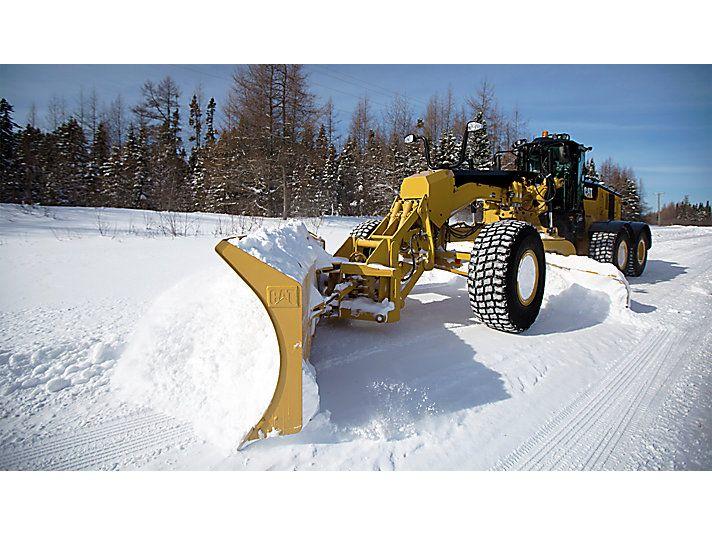

Motor Graders 14Get latest price

KEY SPECS

• Base Power (1st Gear) - Net
  • 178 kW
• Operating Weight - Typically Equipped
  • 25968 kg
• Blade Width
  • 4.2 m

ENGINE

• Base Power (1st Gear) - Net178 kW
• Engine ModelCat C13
• Bore130 mm
• Stroke157 mm
• Speed at Rated Power1,850 rpm
• Note (3)Net power advertised is the power available at rated speed of 1,850 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
• Standard Capability50 °C
• Note (2)Optimized VHP Plus is standard for the 14M3.
• Torque Rise41%
• Maximum Altitude - Full Power4237 m
• Maximum Torque - VHP Plus1542 N·m
• EmissionsTier 4 Final/Stage V, Tier 3/Stage IIIA equivalent or Tier 2/Stage II equivalent
• Maximum Altitude - Full Power (Tier 3)4374 m
• Maximum Altitude - Full Power (Tier 2)3672 m
• Note (1)Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
• Standard - Fan Speed - Minimum550 rpm
• Note (4)Power as declared per ISO 14396. Rated rpm 1,850. VHP+ = 228 kW (306 hp)
• Note (5)Cat engines equipped with a Selective Catalytic Reduction (SCR) system are required to use: Diesel Exhaust Fluid (DEF) which meets the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
• Standard - Fan Speed - Maximum1,600 rpm
• Displacement12.5 l
• Number of Cylinders6

FRAME

• Circle - Outer Diameter1822 mm
• Front Axle - Wheel Lean - Left/Right17.1°
• Front Axle - Total Oscillation per Side32°

SERVICE REFILL CAPACITIES

• Transmission and Differential89 l
• Diesel Exhaust Fluid Tank (Tier 4 Only)22 l
• Hydraulic System125 l
• Circle Drive7 l
• Cooling System60 l
• Fuel Tank416 l
