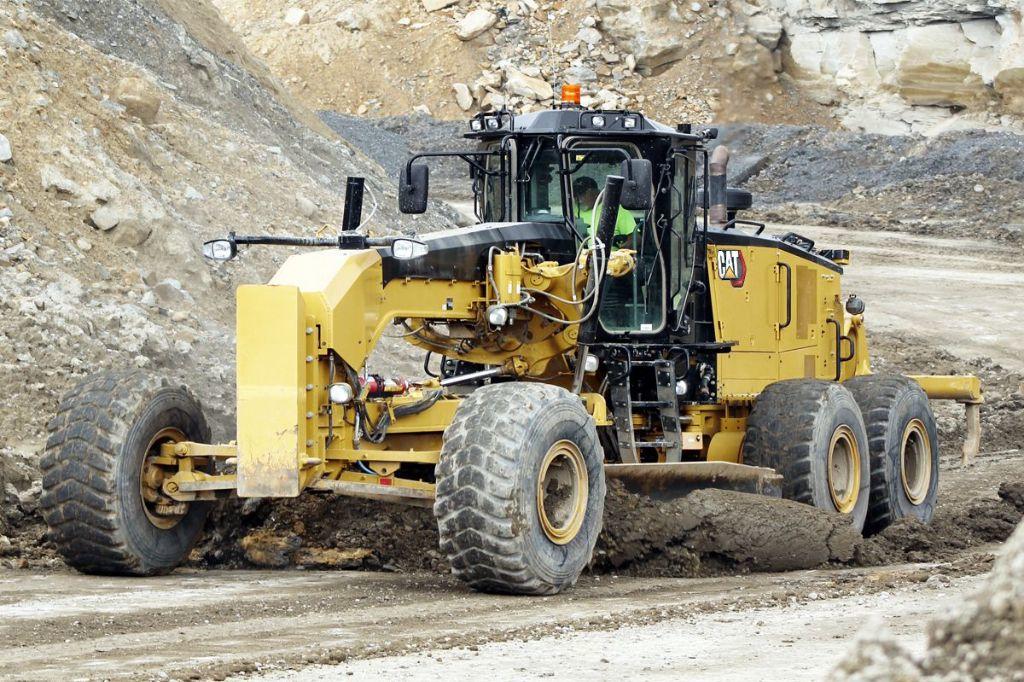

Motor Graders 18Get latest price

KEY SPECS

• Base Power (1st Gear) - Net
  • 227 kW
• Operating Weight - Typically Equipped
  • 33713 kg
• Blade Width
  • 5.5 m

ENGINE

• Base Power (1st Gear) - Net227 kW
• Engine ModelCat® C13
• Bore130 mm
• Stroke157 mm
• Speed at Rated Power2,000 rpm
• Standard - Ambient Capability50 °C
• Base Power (1st Gear) - Net - Metric227 kW
• VHP Range - Net227-266 kW (304-357 hp)
• Maximum Torque - ISO 9249 - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent1721 N·m
• Derating Altitude - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent3711 m
• Derating Altitude - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent3954 m
• Maximum Torque - ISO 9249 - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent1721 N·m
• Standard - Fan Speed - Minimum550 rpm
• Emissions (1)U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)
• Torque Rise - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)40%
• Maximum Torque - ISO 9249 - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)1771 N·m
• Derating Altitude - Tier 4/Stage IV/Japan 2014 (Tier 4 Final)3810 m
• Torque Rise - Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent38%
• Standard - Fan Speed - Maximum1,450 rpm
• Emissions (2)Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards
• Torque Rise - Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent38%
• VHP Range - Net - Metric227-266 kW (309-362 hp)
• Emissions (3)Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards
• Optimized VHP Range - Net227-266 kW (304-357 hp)
• Displacement12.5 l
• Number of Cylinders6

POWER TRAIN

• Forward/Reverse Gears8 Forward/6 Reverse
• TransmissionDirect drive, power shift, countershaft
• Brakes - ParkingSpring applied, hydraulically released
• Brakes - Dynamic Brake Torque per Wheel36701 N·m
• Brakes - ServiceOil-actuated, oil disc
• Brakes - SecondaryOil-actuated, oil-disc

HYDRAULIC SYSTEM

• Circuit TypeElectro-hydraulic load sensing, closed center
• Pump TypeVariable piston
• Maximum System Pressure24750 kPa
• Standby Pressure5900 kPa
• Pump Output*280 l/min
• Note*Pump output measured at 2,150 rpm.
