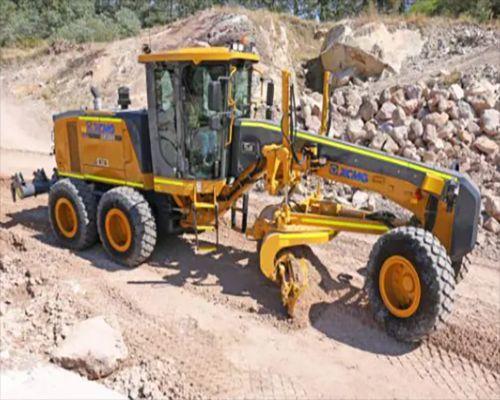

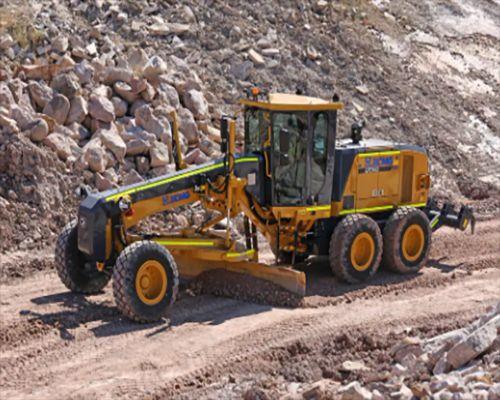

As a result, the GR2605 grader is durable, reliable, safe and comfortable – as well as being efficient to maintain. Renowned worldwide for its performance and value for money, the GR2605 is the ideal solution for customers seeking a 19 tonne grader for any application or industry.

Equipped with a Cummins QSL8.9 engine, slewing bearing and overload protection circle drive, wet brake drive axle, a spacious and comfortable ROPS&FOPS cab and electronic parking system, the entire grader offers significant reliability, efficiency, comfort and control.

Product Features:

• Three-dimensional all-round air-conditioning system.
• Air suspension seat for high level comfort.
• Optimized cab control layout, more comfortable operation.
• Humanized setting.
• The front and operation vision are wider.
• Wide-angle rearview mirror inside the cab and dual rearview.
  mirrors on both sides.
• Electronically controlled dual joysticks, more labour-saving operation.
• Integrated CAN key panel, more convenient.
• Intelligent fault diagnosis system.
• Optional 2D/3D automatic leveling system.
• Load-sensitive hydraulic system.
• Temperature controlled independent cooling system.
• Spacious and comfortable ROPS&FOPS cab.
• Secondary steering system.
• Reversing camera system.
• Fuel filling on the ground, safer and more convenient.
• More comprehensive lighting system.
• Double emergency stop control.
• Double circuit breaker.
• Hydraulic locking function.
• Equipped with slewing ring and overload protection circle drive.
• Integral Angle positioner.
• Heavy-duty front axle.
• Wet brake drive axle.
• Electronic parking system.
• Dual-circuit service brake system.
• Integrated with the interior design of three-dimensional air duct and air conditioning, the user can work in a pleasant temperature.
• The comfortable air suspension seat can be adjusted up and down, front and rear, angle and other directions, and also has an electric heating function to meet the various needs of users.
• The layout of various control switches, joysticks, and pedals in the cab meets the needs of ergonomics and is more comfortable and convenient.
• The optimized cab structure improves the front vision and operation vision, plus interior rearview mirrors in the cab and dual rearview better convenience and driving safety.
• Load-sensitive hydraulic system provides better control and more sensitive response.
• The application of the CAN key panel in the cab has a high degree of integration.
• The intelligent fault diagnosis system can quickly query equipment data and provide users with convenient fault detection and troubleshooting functions.
• The 2D/3D automatic leveling system can be installed as an option to make the leveling operation of the whole machine simpler and more accurate, and reduce the requirements on the operator.

Product Specifications:

• Operating Weight: 19000 kg (approx)
• Engine: Cummins QSL8.9
• Length: 9448 mm
• Width: 2625 mm
• Height: 3472 mm
• Tyre Spec: 17.5R25
• Ground Clearance (Front Axle): 592 mm
• Tread: 2156 mm
• Axle Distance (Front to Rear): 6465 mm
• Tread Between Middle and Rear Wheel: 1622 mm
• Forward Speed (km/h): 4.9 / 8 / 11 / 17.9 / 24.7 / 40.2
• Rearward Speed (km/h): 4.9 / 11 / 24.7
• Coolant: 50 L (approx)
• Fuel Tank: 418 L
• Engine Oil: 24 L
• Transmission Oil: 38 L
• Tandem Oil: Each 85 L
• Drive Axle: 44 L
• Hydraulic Oil: 193 L
• Traction Force f=0.75: >99kN
• Max Gradeability: >25%
• Tyre Inflation Pressure: 425 kPa
• Working System Pressure: 24.5 Mpa
• Transmission Pressure: 1.85-2.2 Mpa
• Max Steering Angle Front Wheel: ~49 Degrees
• Max Tilt Angle Front Wheel: ~18 Degrees
• Max Swing Angle Front Axle: ~16 Degrees
• Max Swing Angle of Tandem: Front 15 Deg / Rear 15 Deg
• Max Steering Angle of Frame: ~25 Degrees
• Max Turning Radius: 7.6m
• Max Lift Height: 452 mm
• Max Shoveling Depth: 755 mm
• Max Tilt Angle: 90 Degrees
• Cutting Angle: Front 40 Deg / Rear 5 Deg
• Slewing Angle: 360 Degrees
• Length x Chord Height: 3965 x 610 mm
