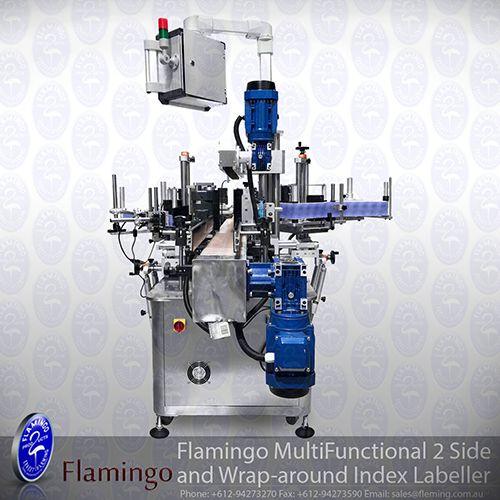

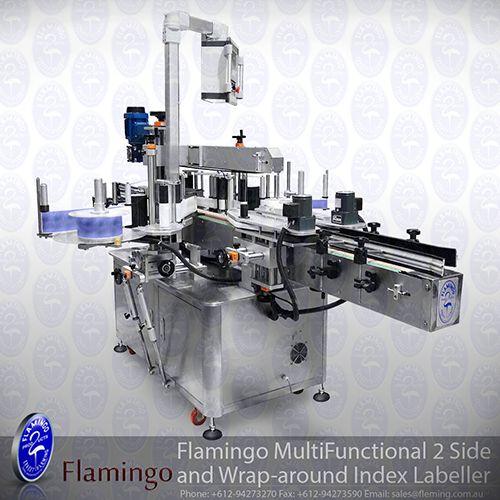

Multi-Functional Wrap-Around Index Labeller | EFL-A600Get latest price

The labeller will automatically detects the label size and bottle diameter and set the appropriate labeling parameters – a very useful feature for users with multiple products to label. For automatic labeling on any shape bottles for the pharmaceuticals, daily chemicals, food & beverages industries.

• Wide range of capabilities: Applies one or two pressure sensitive (self-adhesive) labels onto round, oval, and flat containers
• Applies partial and wraparound labels
• Maximum Label Length 300 mm
• Maximum Label Height 150 mm
• Container diameter range: 20 – 150 mm Ø
• Maximum container height: 400 mm
• Labeling speed: 60 -180 lpm (depending on label length)
• Machine includes a 2.2 meter long speed-adjustable conveyor for products of up to 150 mm wide, equipped with rust-proof plastic flat-top chain
• Equipped with speed adjustable container separation module integrated with the labeling system to assure correct bottle entry timing
• Equipped with synchronised container top conveyor, to achieve absolute product stability by gripping the crown of the container
• Dual labeling modules each driven by stepper motors, while four AC motors drive remaining systems
• Equipped with speed adjustable wraparound label module for 360° perimeter application

* Designed engineered and programmed in Australia.

Product Options:

• Hot Stamp Printing coder with base (prints characters directly onto the label)
• Fully integrated U2 inkjet Printing coder with mounting (prints characters directly onto the label, or container)
• Clear Label Luize Sensors (capable of detecting transparent labels)

Product Specifications:
