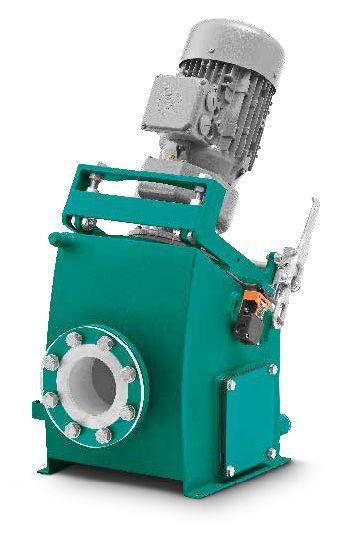

N.Mac® Inline Twin Shaft GrinderGet latest price

Applications for this product

• 1 Housing
  Housing for pipe installation to protect against pipe blockage and damage to connected equipment.
• 2 Cutting unit
  There are different cutting blocks with special geometry for optimum crushing of the solids. To achieve the desired size reduction result, the different knife configurations with three to eleven teeth can be combined with each other. Knife configuration with seven teeth as standard. The cutting tools are hardened to increase impact resistance and sharpness, so that even the most difficult of contaminants can be shredded reliably.
• 3 Shaft seal
  Mechanical seal with quench and patented bearing and mechanical seal cartridges.
• 4 Drive
  Energy-efficient motors with 2.2 kW, 3 kW or 4 kW are installed as standard. These offer optional control with reversal of direction of rotation for protection in the event of blockages.
• 5 Inline version
  Product inlet and outlet are at the same height. The N.Mac^® can be connected directly into a horizontal pipeline or to a suction connection of a pump rotated 90° to the side.

Why Choose This Product

• Protects the system from damage caused by contaminants
• Optional cleaning brush for fibrous materials removes material in the gaps between the blades
• Cutting devices in the cartridge system
• Easy on-site maintenance thanks to innovative FSIP^® design
