Ramps & Walkways 1200mm Wide | Concrete Line RampGet latest price

Features:

• For use when concrete pumping lines are in operation
• Complies with AS 1657:2018
• 1200mm wide
• 900mm high handrails with 104mm toe board
• Adjustable legs to ensure no interference from the line pump
• 1200mm long landing with 1:14 gradient ramps
• Heavy duty chequer plate ramp surface
• Bevelled entrance and exit for minimal walkway interruption
• 2.5Kpa rated
• Modular design for easy transportation

Product Codes & Details:

• 210836 - Concrete Line Ramp and Landing

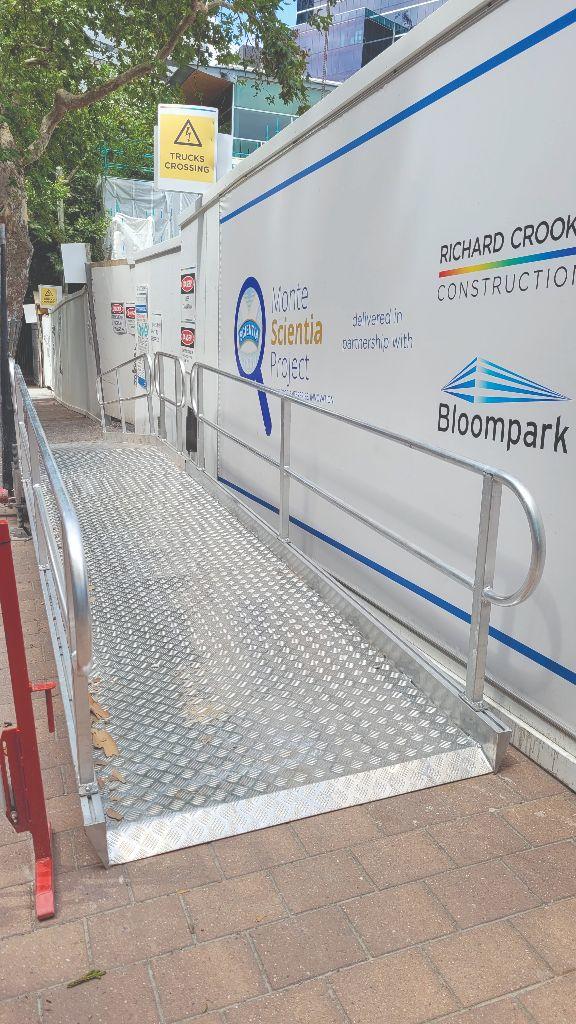

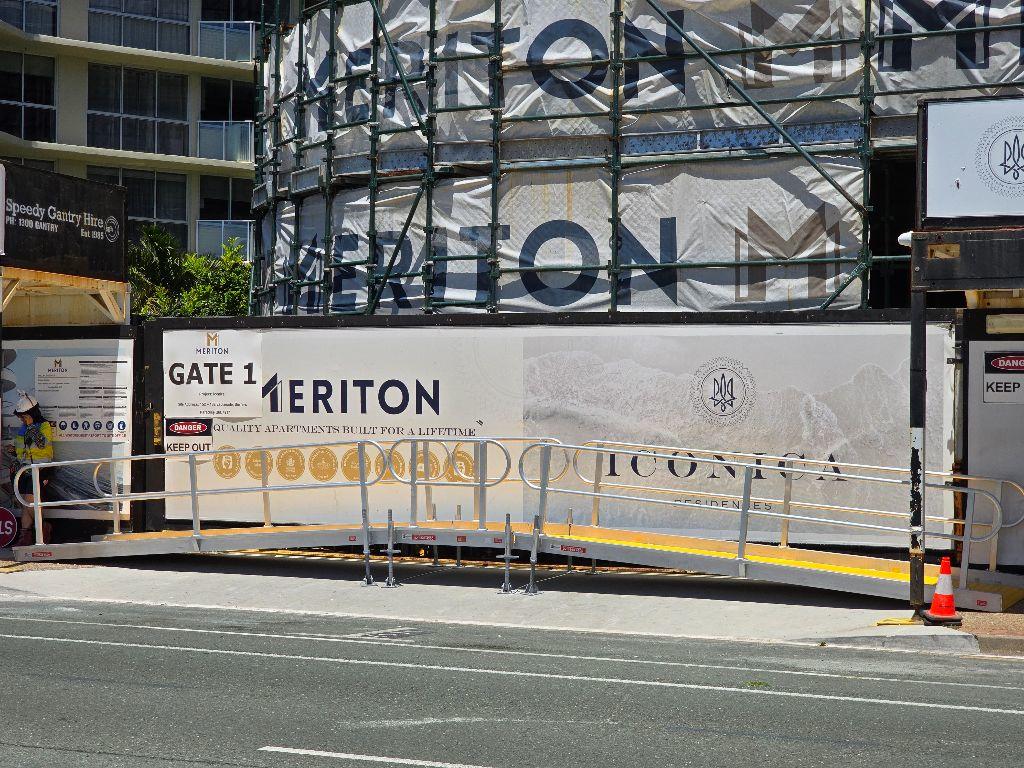

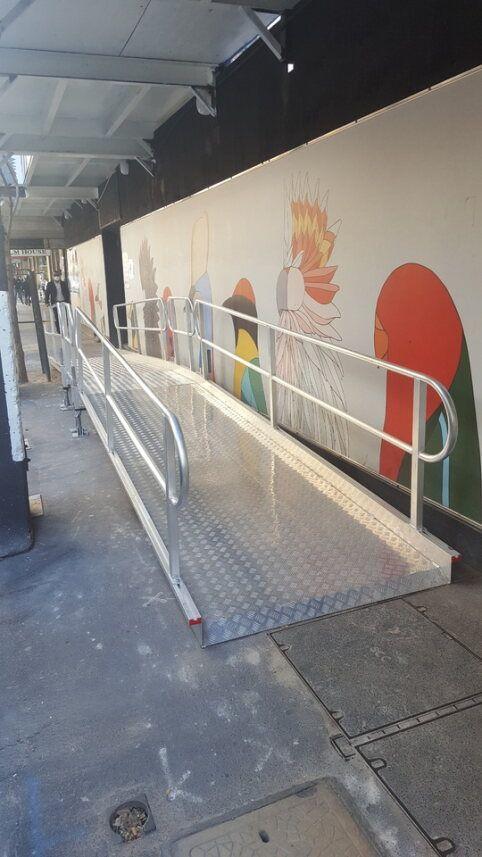

The Ground Obstacle Ramps by SafeSmart Access offer a modular, robust solution to navigating over terrain irregularities in industrial settings. These ramps, with handrails standing at 900mm and featured toeboards at 104mm, grant stable and secure access for equipment and personnel across uneven or obstructed paths.

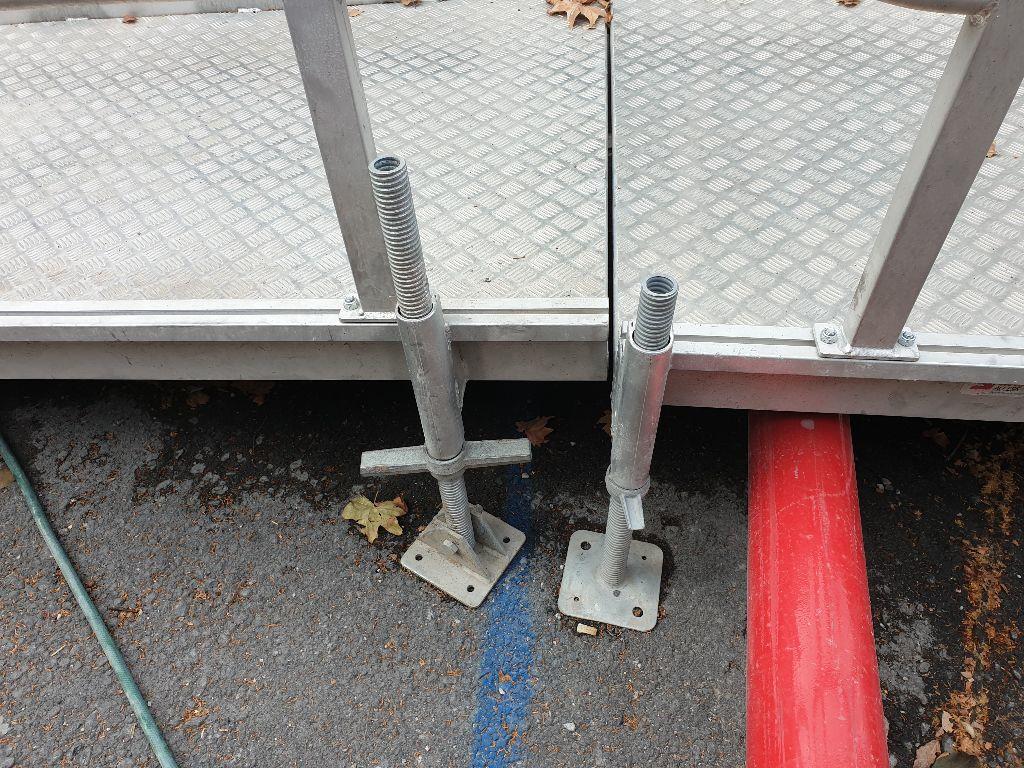

In alignment with the AS 1657:2018 standard, the ramps provide a 1200mm wide passage with a long landing and gradual gradient of 1:14, making them accessible to a broad range of users in various working conditions. The adaptable legs come with swivel base plate screw jacks, designed to ensure no interference with equipment such as line pumps and allow for installation on uneven ground.

The ramps boast a heavy-duty checker plate surface offering reliable traction, making them suitable for harsh working environments. Beveled entrances and exits are incorporated to ensure a seamless transition between the ramp and walkway, preventing potential trip hazards for passing workers.
