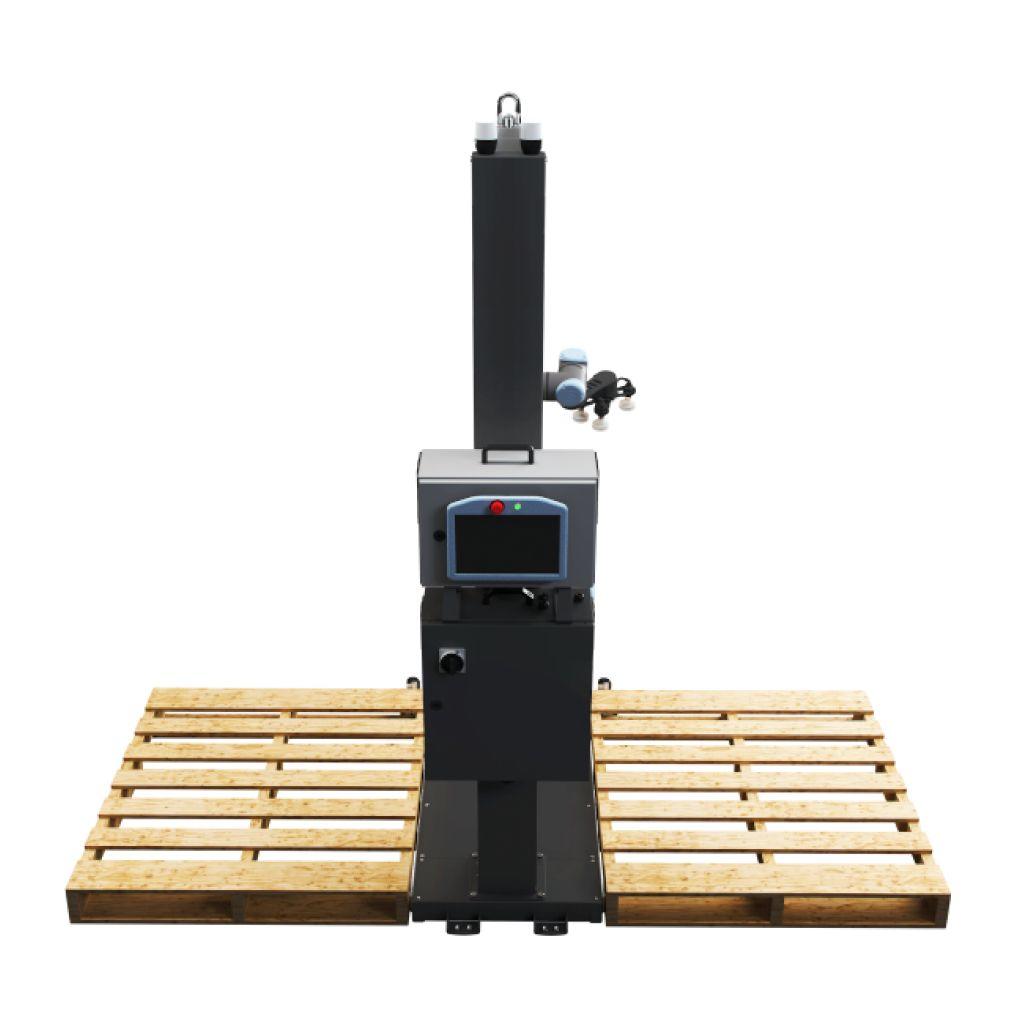

AX10 Palletising Solution - Extended Reach and Vertical Capability for Advanced Palletising

The AX10 is a high-performance palletising solution engineered for operations that require greater vertical reach, faster cycle times, and flexibility across varying production demands.

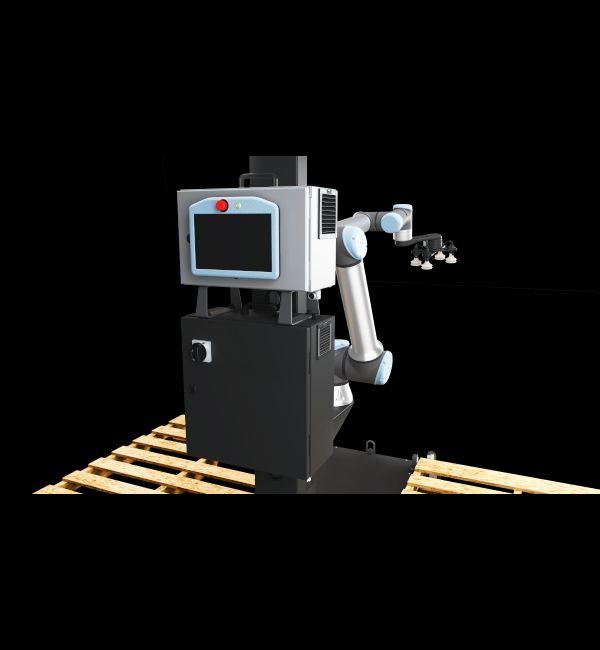

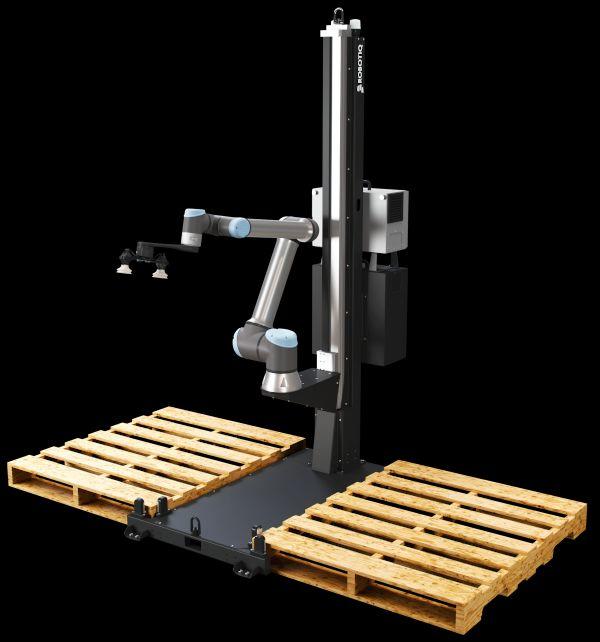

Built around a collaborative robot integrated with a 7th-axis vertical lift, the AX10 enables palletising beyond standard robot limits. This allows for taller pallet builds, extended working range, and efficient handling of varied carton sizes — all within a compact footprint.

Delivered as a pre-configured system, the AX10 reduces installation time while its guided software interface enables fast setup without complex programming.

Core Performance Specifications

• Payload: Up to 10–12.5 kg (robot dependent)
• Robot Reach: ~1300–1450 mm
• Vertical Axis Stroke: Extends palletising height beyond standard reach
• Max Pallet Height: Up to ~2400 mm+ (configuration dependent)
• Throughput: High-speed cycle capability (application dependent)
• System Type: Robot + integrated vertical 7th axis

System Advantages

• Extended vertical reach for taller pallet stacks
• Increased working envelope without increasing footprint
• Handles varied box sizes and pallet configurations
• Pre-engineered system for faster deployment
• Coordinated robot + axis motion for smooth, efficient operation

Typical Applications

• Tall pallet builds and high stacking requirements
• High-throughput production environments
• Mixed SKU and variable carton sizes
• Flexible palletising layouts

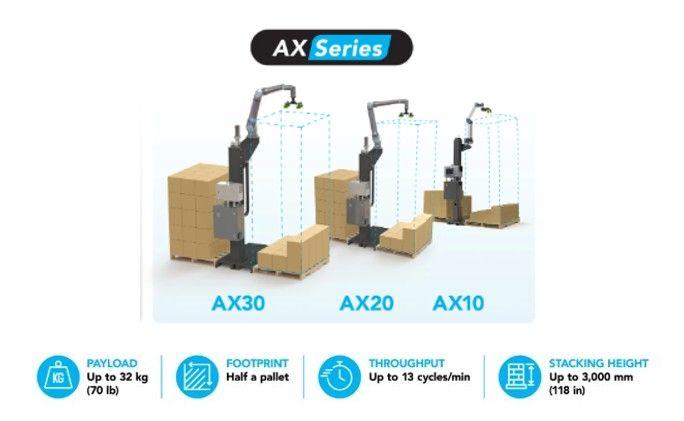

Explore the AX Series solution or request a quote:  https://industrial-robotics.com.au/product/palletiser-solution-ax-series/#tab-description
