AX20 Palletising Solution - Maximum Reach and Payload for Demanding Production Environments

The AX20 is a high-capacity palletising solution engineered for operations that require greater payload, extended vertical reach, and consistent high-throughput performance.

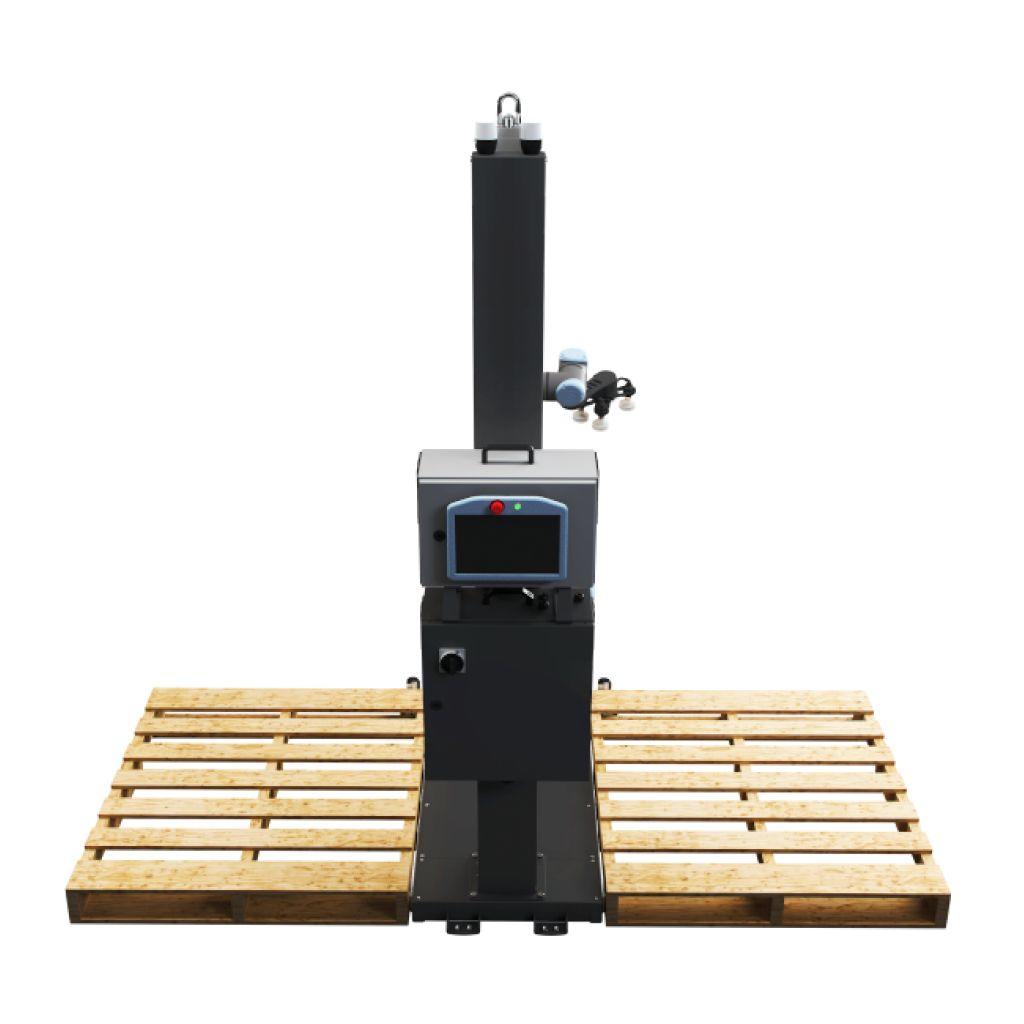

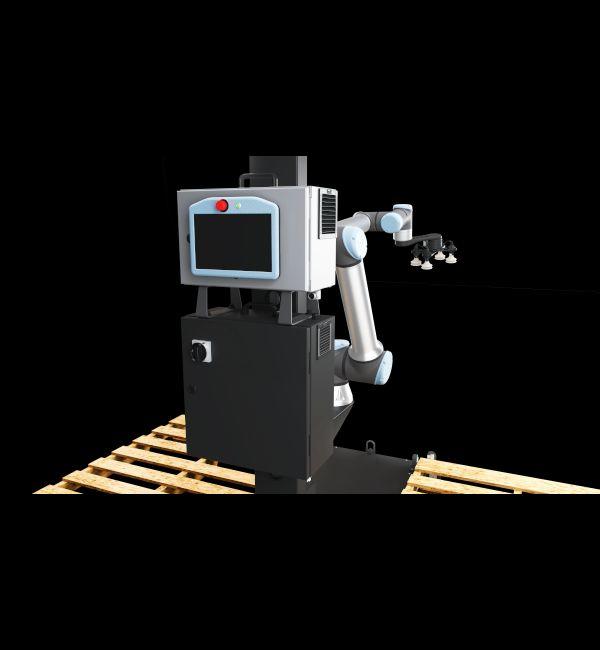

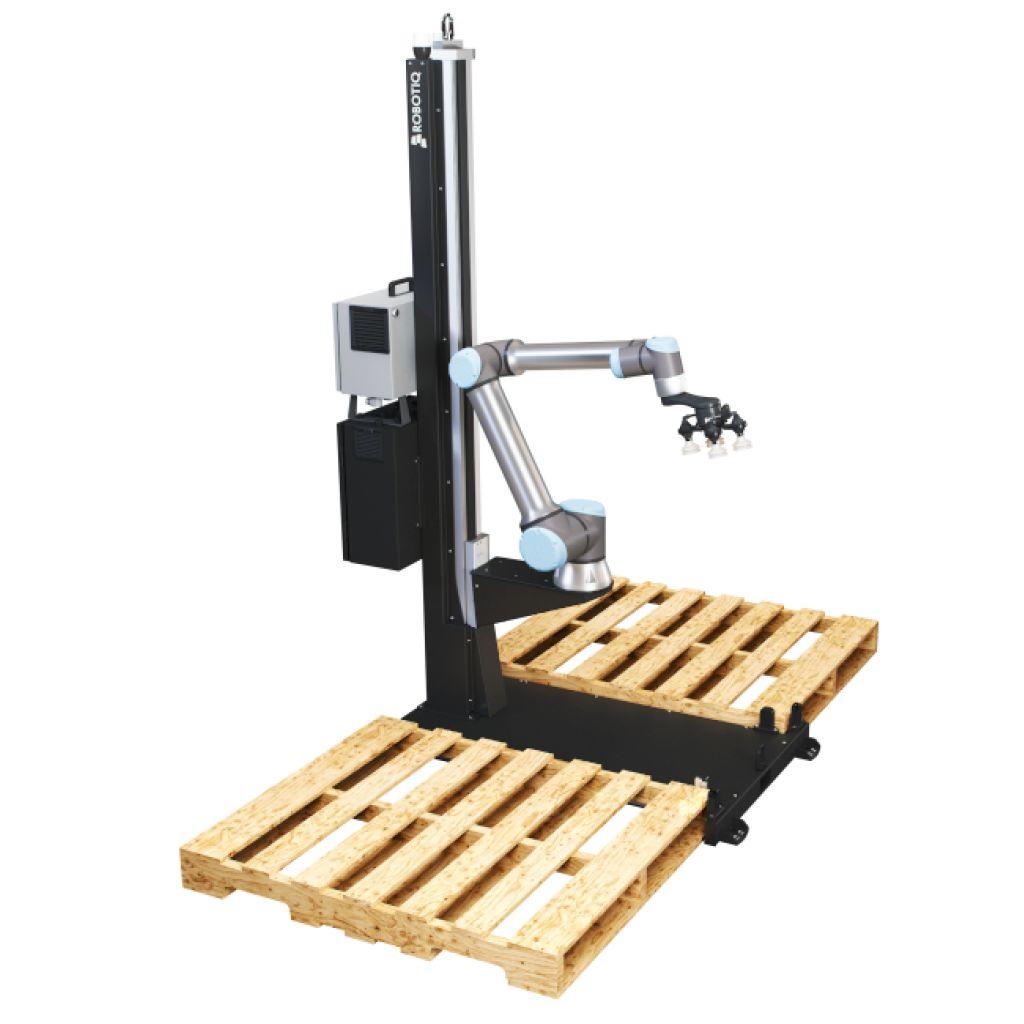

Built around a collaborative robot with an integrated 7th-axis vertical lift, the AX20 enables efficient palletising of heavier cartons across taller pallet builds and wider working areas. Its coordinated robot and axis motion ensures smooth, stable handling — even in demanding, multi-SKU production environments.

Delivered as a pre-configured, pre-connected system, the AX20 reduces installation time while its guided software interface allows fast setup without complex programming.

Core Performance Specifications

• Max Payload: Up to 20 kg
• Robot Reach: ~1700 mm
• Vertical Axis: Integrated lift for extended working range
• Max Pallet Height: Up to ~2400 mm+ (configuration dependent)
• Throughput: High-speed cycle capability (application dependent)
• System Type: Robot + integrated vertical 7th axis

System Advantages

• Handles heavier cartons with stable, repeatable performance
• Extended vertical reach for tall pallet builds
• Larger working envelope without increasing footprint
• Flexible across varying box sizes and pallet configurations
• Fast deployment with minimal integration complexity

Typical Applications

• Heavy boxed product palletising
• High-throughput production lines
• Multi-SKU and variable carton environments
• Warehousing and end-of-line automation

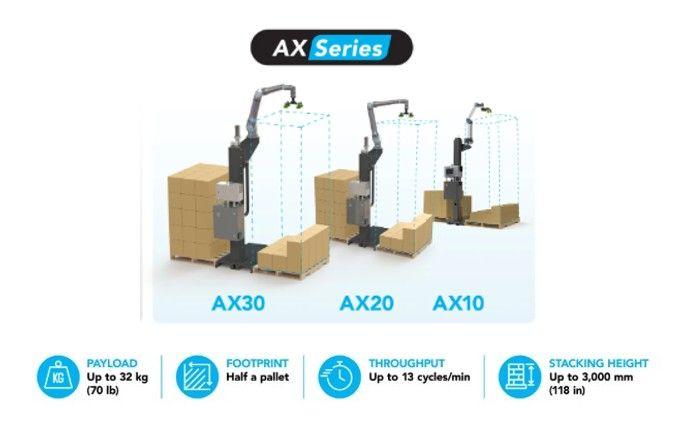

Explore the AX Series solution or request a quote: https://industrial-robotics.com.au/product/palletiser-solution-ax-series/#tab-description
