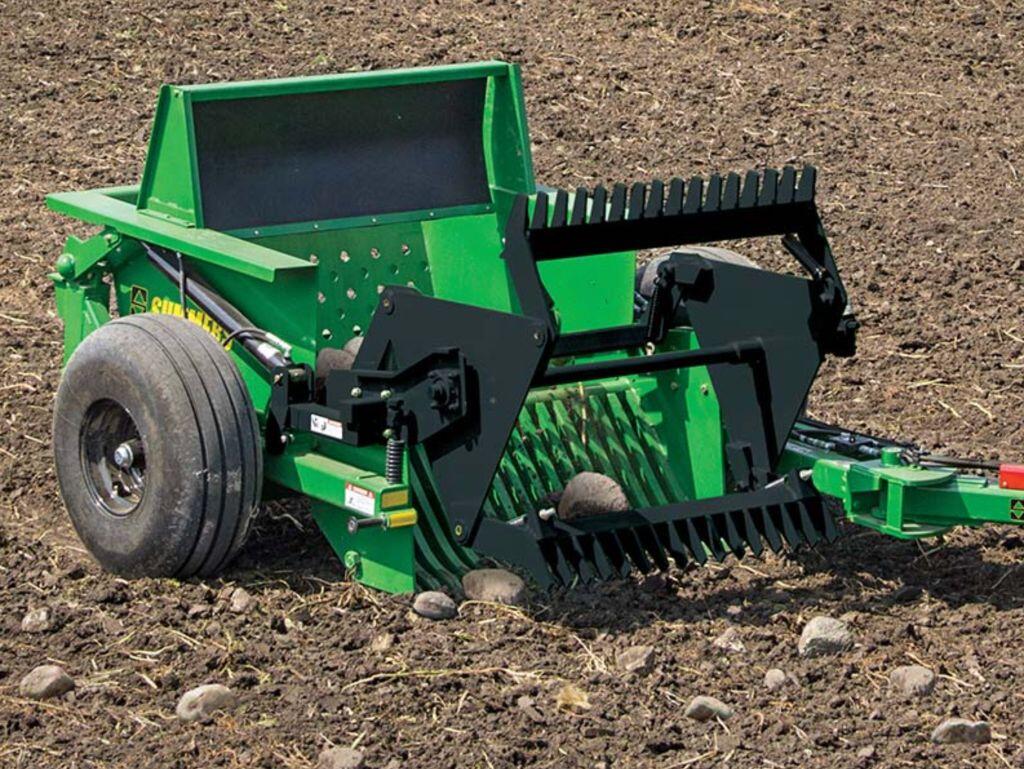

Rock Picker 9R0700

Name: Rock Picker 9R0700
Brand: Summers MFG

Rock Picker 9R0700

Designed for efficient removal of rocks from fields, this rock picker is built to endure the toughest conditions and maximise productivity.

Heavy-duty, planetary hydraulic direct drive ensures unmatched durability and low maintenance in demanding field conditions.

Features & Benefits

Steep Dump Angle: Two 76mm x 787mm hydraulic cylinders with hardened shafts tip the hopper, providing a dump height of 965mm and an extra-steep angle to ensure thorough clearing.
Extra-Long Hitch: Enhanced visibility for dual rear wheel tractors, with an option for a shorter hitch on request.
Heavy Duty Batts: Large-diameter reel with three reinforced batts, spring-loaded trip action, and greaseable steel pins in replaceable bushings for maximum durability.
Planetary Hydraulic Direct Drive: Direct-coupled to the hydraulic motor, eliminating chains or sprockets. Operates with a low-maintenance, high-torque gear system in an oil bath for extreme use.
Thick Steel Frame: Constructed from reinforced 127mm square tubing, built to withstand heavy use and abuse.
Flotation Tyres: Fitted with standard 16.5L x 16.1 tyres suitable for all soil profiles.
Hydraulic Swing Hitch: Third hydraulic remote actuates the hitch for shifting between transport and offset working positions.
Reinforced Hopper: High-capacity, gusseted for extra strength, with grated floor and perforated back plate for maximum sifting of dirt.
Extra-Long Tines: Specially contoured picking tines allow more dirt to fall through before reaching the hopper.
Clevis Hitch: Standard clevis hitch included.

Options

Electric Solenoid Lift: Enables simultaneous operation of reel and rake for tractors with limited hydraulic flow.
Paint Colour: Choice between green or red to match existing equipment.

Specifications

Model	9R0700
Estimated Weight	2,313 kg
Picking Width	1,524 mm
Picking Speed	3–6 km/h
Minimum Rock Diameter	51 mm
Maximum Rock Diameter	508 mm
Tyres	16.5L x 16.1 flotation tyres
Hubs	8-bolt
Tractor Horsepower Requirement	45 kW
Hydraulic Flow Requirement	34 L/min
