RV/RVR Rotary ValvesGet latest price

RV/RVR Rotary Valves offer precise control for discharging and feeding powdery or granular materials from various systems such as silos, hoppers, or pneumatic conveying systems. Their compatibility with other WAMGROUP equipment, robust design, and easy access to internal components make them an ideal choice for material handling needs.

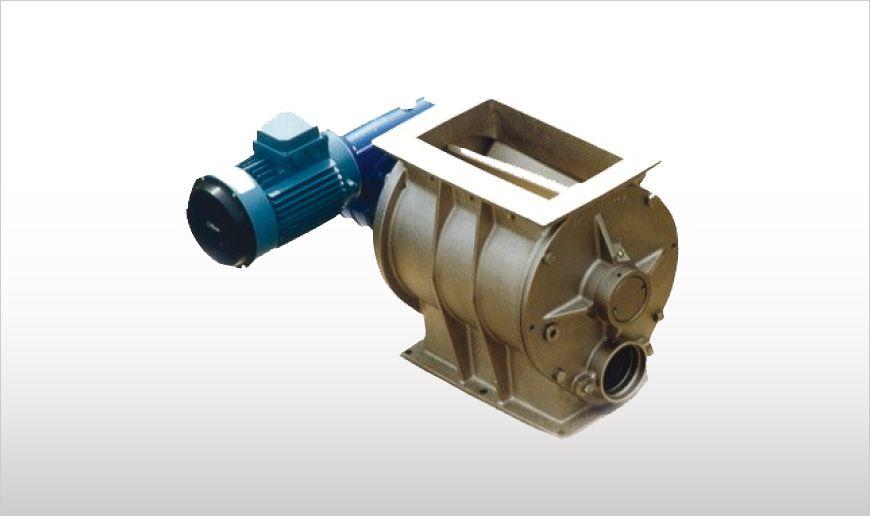

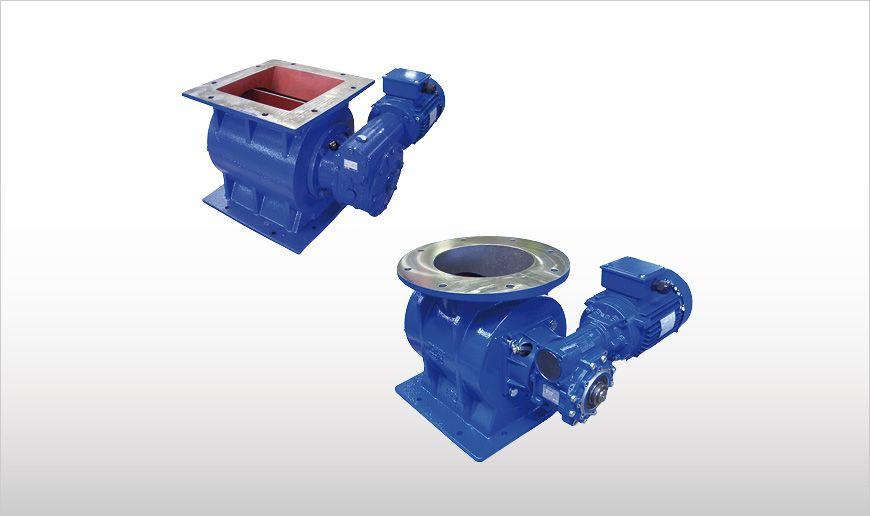

RV Drop-Through Rotary Valves and RVR with circular inlets feature tubular cast iron or stainless steel casings, horizontally mounted rotors with V-shaped compartments, and drive units. They facilitate controlled material discharge and feeding with maximum versatility in application.

Function: Designed for discharging and feeding powdery or granular materials, RV/RVR Rotary Valves ensure precise control and compatibility with various systems. They are suitable for applications in silos, hoppers, pneumatic conveying systems, and more.

Features:

• Feed rates: 2.2 ~ 19.5 litres per revolution
• Working Temperature: -30 ~ 150 °C
• Different drives for various rotation speeds
• Various materials and treatments available
• Maximum differential pressure: 0.2 bar

Benefits:

• Compatibility with other WAMGROUP equipment
• Robust, compact design
• Easy access to all internal mechanical components

Options:

• Available as ATEX version, Zone, and Explosion isolation system.
