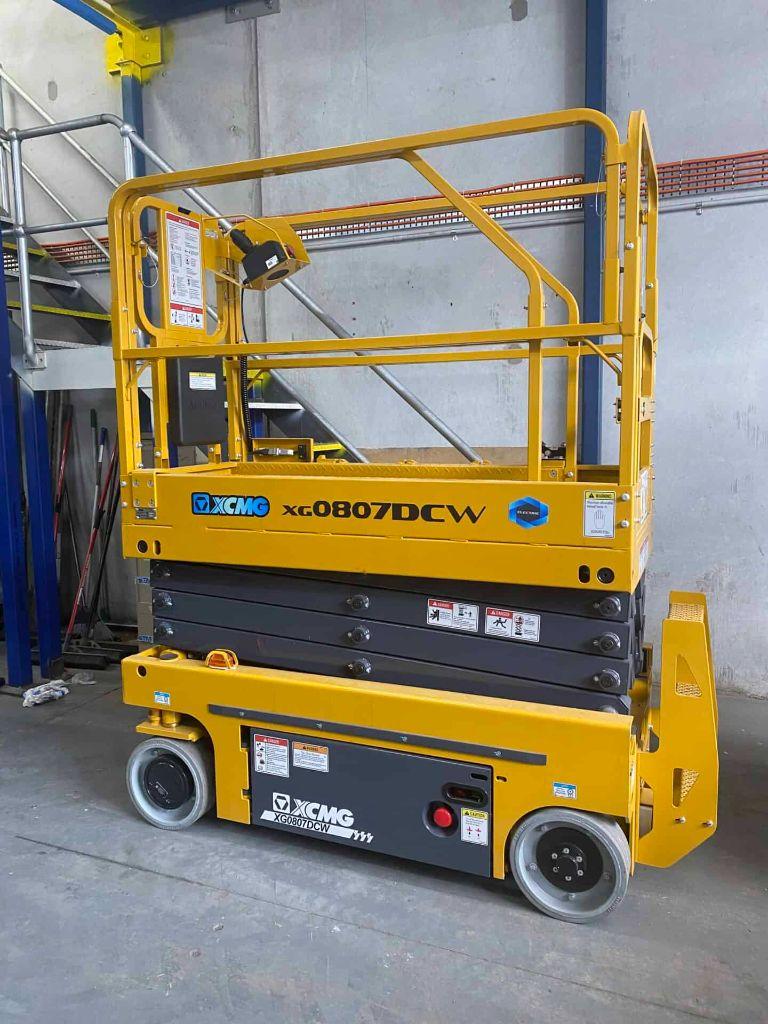

Scissor Lift Trailer Package | XG0807DCWGet latest price

Features:

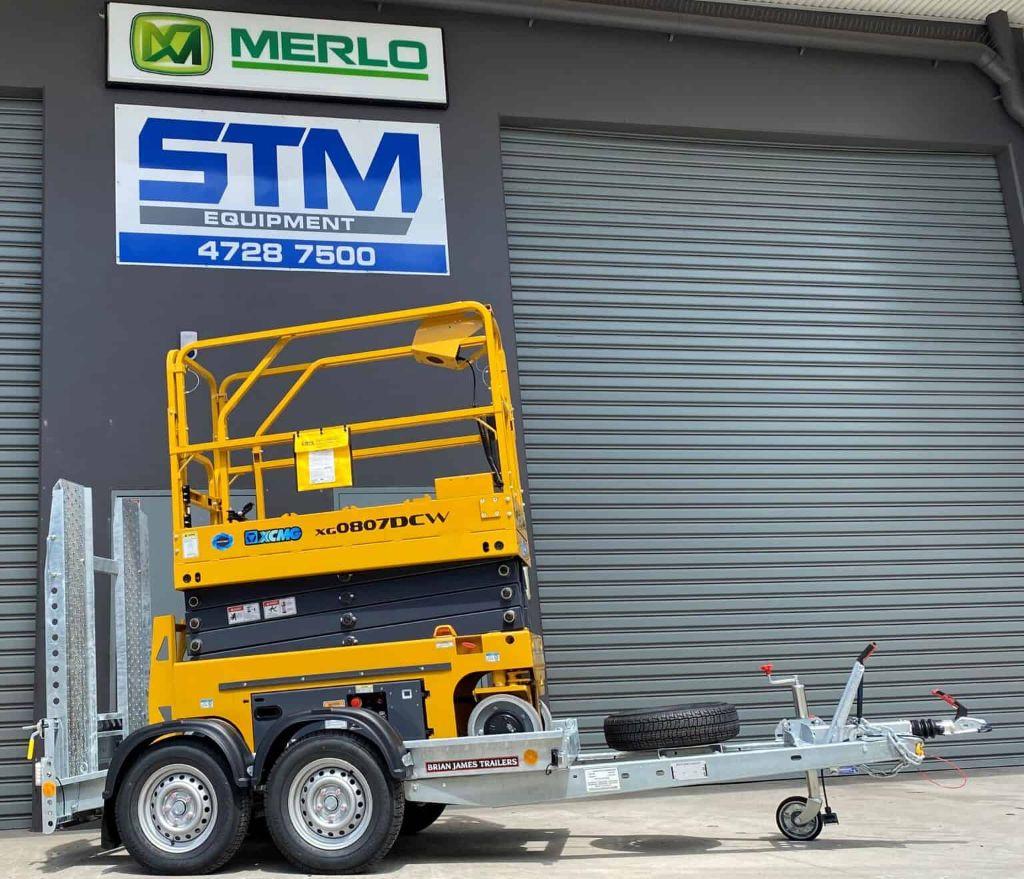

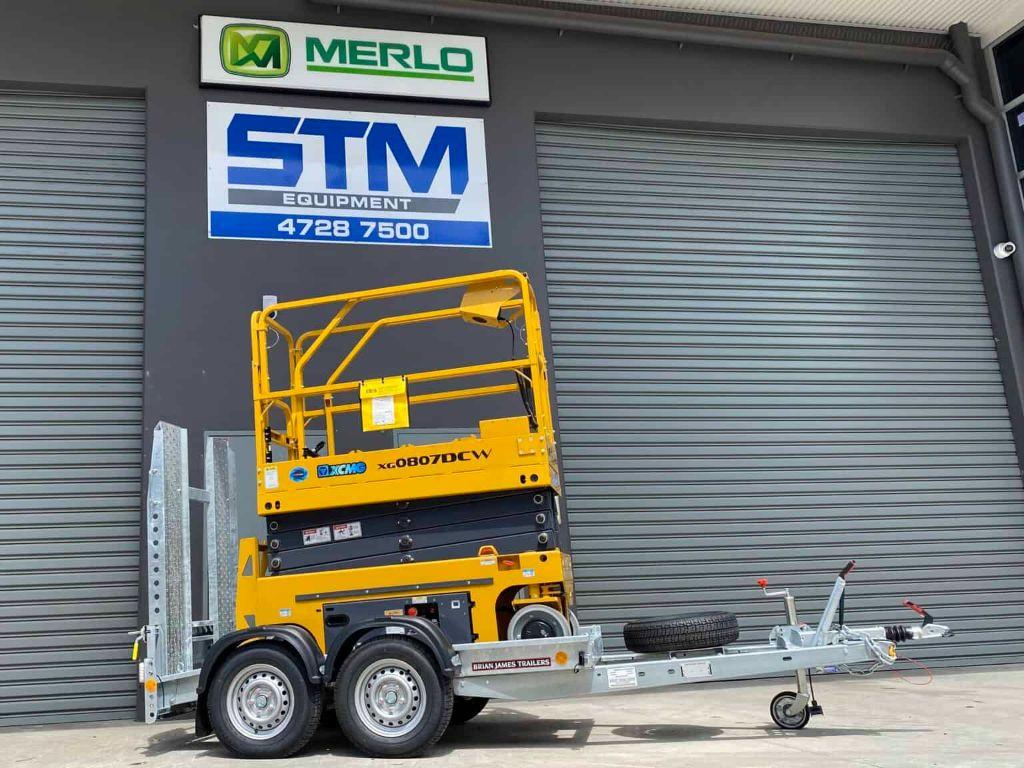

• New 19′ Electric Scissor Lift and Galvanised Trailer Package
• Compact design fits through narrow aisles and doorways
• Efficient DC drive system,
• better power-saving than hydraulic drive

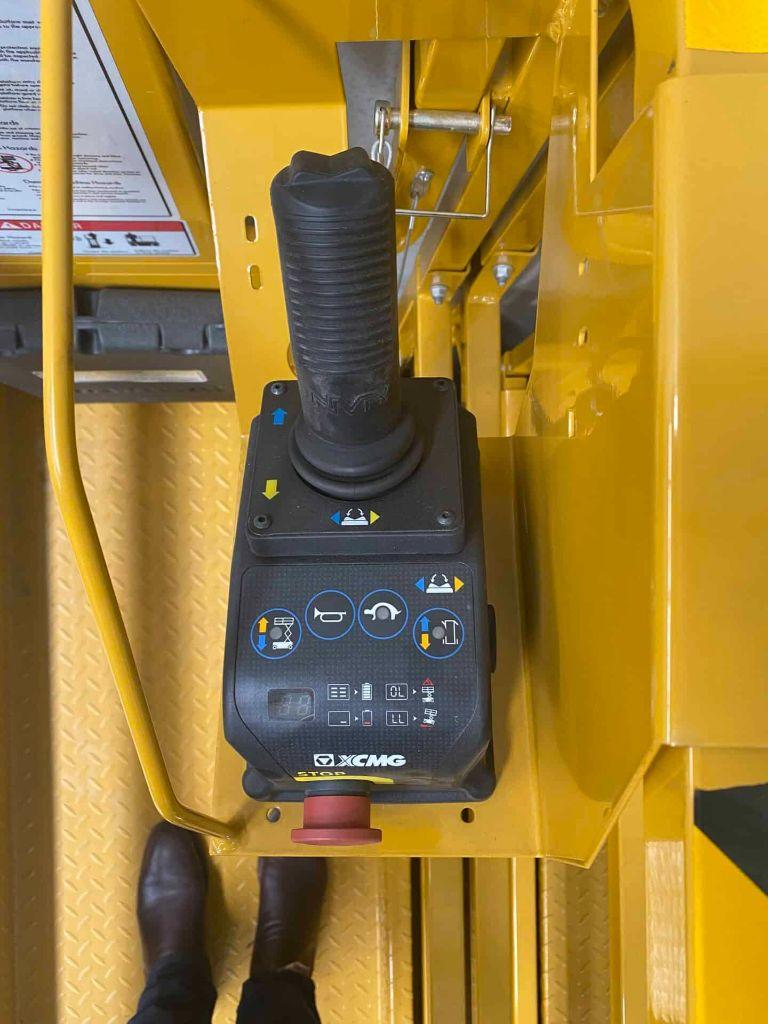

• Proportional drive gives smooth control
• Zero-emission and non-marking tires ensure environment – friendly operation
• Zero turning radius enables better maneuverability

Specifications:

• Comply with AS/NZS/ANSI/CE
• Max. Working height 7.8 m
• Max. Platform height 5.8 m
• Load capacity 230 Kg
• Load capacity of extended platform 115 Kg
• Max. Occupant Capacity 2
• Min. ground clearance (pit protector rising/descending) 70/20 mm
• Min. Turning radius (inner/outer wheel) 0/1.75 m
• Lifting motor 3.3 kW
• Lifting/Descending duration of platform 13-30/25-35 S
• Max. Traveling speed at low level 4.5 Km/h
• Max. Traveling speed at high level .8 Km/h
• Max. gradeability 25%
• Max. Inclination (side/forward and backward) 1.5/3
• Battery 4×6 /225 v/Ah
• Charger 24/30 v/A
• Tire specification 323 x 100
• Total machine weight 1580 Kg

Trailer information

• Drop Axle
• New tyres and wheels
• Mechanical Braking System
• Rated to 2.6 Tonne ATM
• Carrying Capacity: 2,170Kg
• Usable Deck Space: 2.3m x 1.1m
• Rear Loading Ramps
• Dual Axle
• ALKO independent rubber suspension
• Mechanical Drum Brakes
• New tyres
• H/D Jockey Wheel
• 5 Year Chassis Warranty
• Spare Wheel Included

Optional:

• NSW rego only available at additional cost
• Interstate buyers – Delivery & rego – P.O.A.
