Single Axle Chaser Bin | 25-30TGet latest price

Harvest Better - Built with the farmer in mind.

Our single-axle chaser bin has been designed with features to make your harvest run as smoothly and efficiently as possible.

• 100% premium quality Australian steel for durability and strength
• Australian-made, owned and backed
• The strongest, most durable chaser bin design
• Increase header capacity by up to 30%
• Less compaction and wear and tear on fields
• Built to outlast and handle the tough Australian terrain

REDUCE LOAD SHOCK

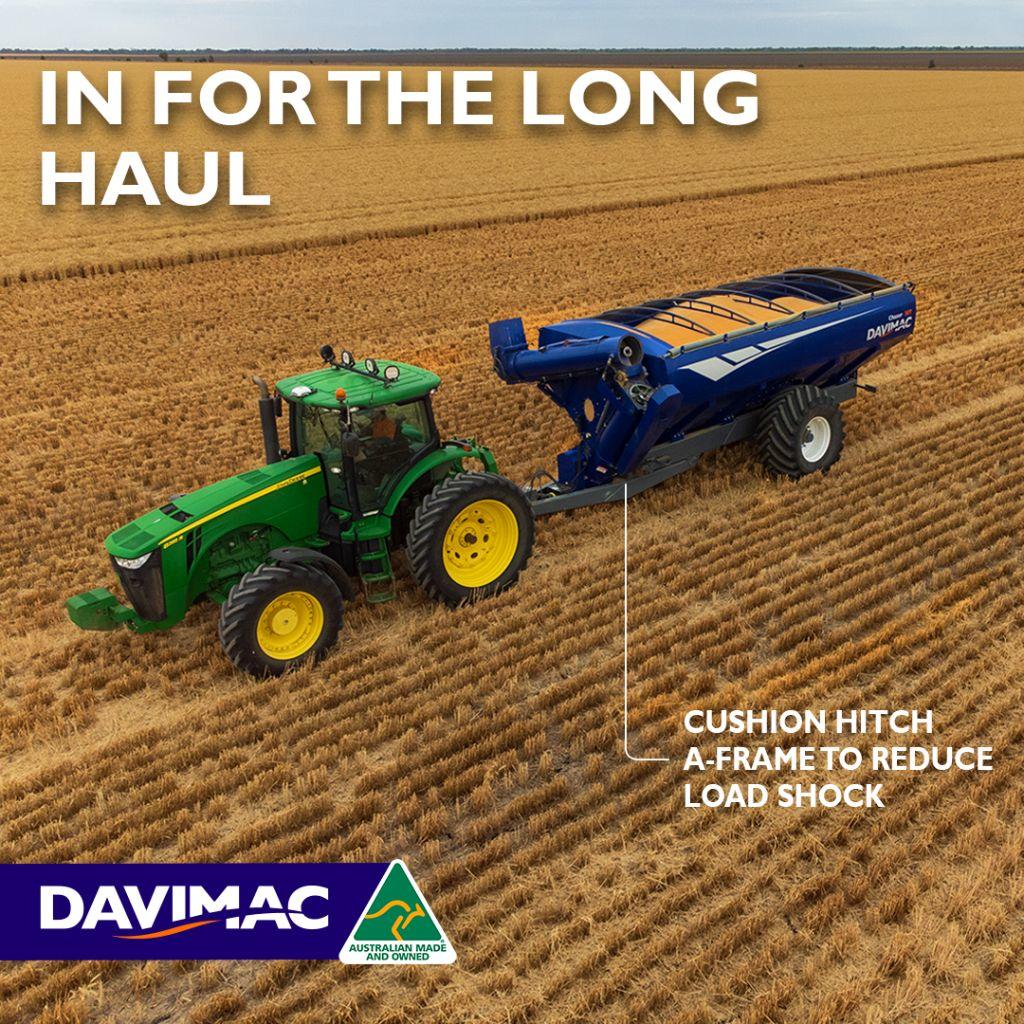

Minimise shunting and jarring when travelling over uneven terrain with our unique, pioneering cushion-hitch design, meaning less wear and tear on the chassis, and increasing the servicable life of both the grain cart and your tractor.

EASY CLEAN-OUT

Easily ensure the cross-auger is fully cleared of contaminates with the independent clean-out doors on our 25 tonne and 30 tonne single-axle chaser bins.

AUGER FEATURES

ULTRA FAST UNLOAD
Our huge 20” auger maximises harvest efficiency with an unload speed of up to 12 tonnes per minute (at 1000 RPM). That is 1 tonne every 5 seconds or a 25-tonne load (918 bushels) in the truck in just over 2 minutes! Choose from standard 1,000 RPM PTO high-speed drive or 500 RPM hydraulic drive.

ULTRA-BRIGHT AUGER LIGHTS
Twin 48W 16 LED 3,000 lumens lamps mounted to the auger spout enable safe night operations.

DUAL-CYLINDER FOLDING
The single-fold auger is supported by dual hydraulic cylinders which not only provide more support for the folding action but offer redundancy as well.

STRONG CONSTRUCTION

• 508 mm diameter dual-fold design with 10 mm thick flights welded around 150 mm centre pipe.
• The auger protection guard protects the auger from damage and collisions.

CONTROL THE FLOW

• The hydraulic spout allows you to adjust the flow of grain with complete accuracy and control.
• The hydraulic kicker allows easy adjustment of the discharge angle and height.
• A shut-off door at the base of the vertical auger allows flow-rate control for fast metering crops and easier cleaning. A simple and large gate open/closed indicator clearly communicates the status of the doors.

BUILT TO LAST

• The vertical auger flights are constructed with 10 mm steel, instead of the industry-standard 6 mm steel. This helps avoid them becoming unbalanced due to bowing.
• Whilst the curved side plates are made from 3 mm steel plate, the front, back and underside of the superstructure is made from heavier 6.4 mm steel plate, offering strength and durability exactly where you need it.
• The heavy-duty chassis is constructed with strong 10 mm and 16 mm plate for superior strength and performance.
• Unique to Davimac, the 12-stud hub axles alongside a fully-welded 300 x 300 x 16mm RHS ensure the underframe of the bin is well supported.
• The bin is finished with 2-pack paint for resistance to weathering, scratching and chipping. It will look as good 10 years from now as it did the day it arrived.

EVERYTHING YOU NEED FOR A BETTER HARVEST

20" AUGER - 12T/min UNLOAD SPEED

• Hydraulically controlled auger spout.
• 12T/min unload speed.
• 10mm flights that are resistant to bowing.
• Auger protection guard keeps the auger safe from damage and collisions.
• Control discharge angle and height.
• Ultra-bright auger lights for night-time harvesting.
• Dual cylinder unfold for redundancy.
• Choice of right or left-hand side discharge.

CTF-STANDARD WIDTHS

User-adjustable wheel centres from 2.56m to 3m.

TOW ON PUBLIC ROADS

Safe road transport and operation with weather resistant ‘oversized’ signage, flags, beacons and LED tail lights.

INDEPENDENT CLEAN-OUT DOORS

Easy cleaning to avoid cross-contamination of bin contents.

HEAVY-DUTY ROLL TARP

Protect your load from the elements with the 900GSM PVC reinforced polyester roll tarp. UV stabilised and FR treated for weather resistance and heat-welded bonds for maximised durability.

EASY LOAD MONITORING

• See into the bin through two large 6mm perspex windows.
• Confirm auger function through the window in the base of the auger.
• Simple and large gate open/closed indicator.
• In-cab scales & readout options available.

SAFETY CHAIN AND TOOLBOX

Store tools and documentation.

NO TRANSPORT ESCORT REQUIRED

Every model in our range has been designed to simplify freight on-road transport requirements saving on the cost of re-location.

SIMPLE USER-REPLACEABLE PARTS

Reduce downtime and service costs with easy bolt-on replaceable parts.
