Slab Storage Rack | ASR01 for storage of Granite & MarblePrice Guide:$1,375

Name: Slab Storage Rack | ASR01 for storage of Granite & Marble
Brand: Tool Range
Price: 1375 AUD
Availability: InStock

Supplier: Tool Range

Slab Storage Rack | ASR01 for storage of Granite & Marble

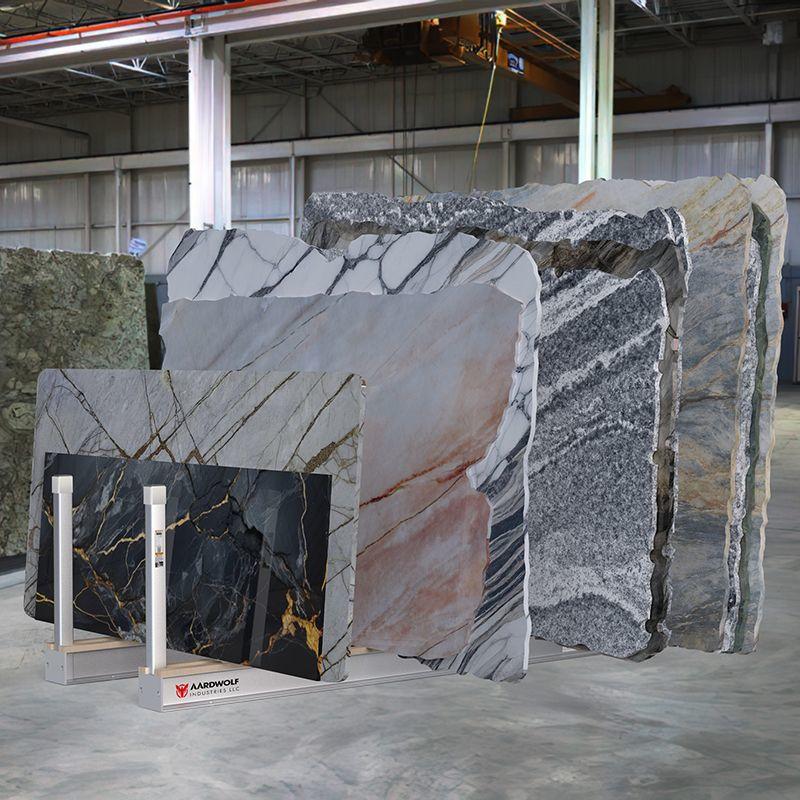

The Aardwolf slab racks consist of a pair of 3-meter galvanized steel rails, each featuring square holes with a spacing of 57mm to accommodate posts. The rack comes with square steel posts that can be positioned anywhere along the rails.

152 Recent Views

Aardwolf 3-Meter Slab Rack | ASR01

The slab rack rails are lined with timber battens to prevent chips and scratches during storage, while the posts are manufactured from 50 x 50mm square tube steel with a 5mm wall thickness and minimum yield strength of 345 Mpa, ensuring durability and safety for the vertical storage of slab bundles.

Features:

The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.
Post available in 4 standard heights of 800mm, 1200mm, 1400mm, 1600mm, 1800mm.

Specifications:

	Metric (mm-kg)	Imperial (inch-lb)
Galvanised steel rail	2979x164x165	117.3''x6.45''x6.5''
Rack height	165	6.5''
Square hole	52x52	2''x2"
Increment	57	2.2''
Square tube post	50x50	2''x2"
Posts wall thickness	5	0.2''
Timber battens per rail	50x25	2''x1''
Net weight	67.7/each rail	149
Gross weight	68/each rail	150
Packaging dimension	2980x165x165	117.3''x6.5''x6.5''
