Solid Interceptor Oil Separator | SIOSGet latest price

Separation Type

• Settling Tank & Coalescing Plates

Types of Separation

• Suspended solids, oil and grease

OWS Dimensions

• 2.35m Long x 1.15m Wide x 1.94m High

Specifications

1. PUMP

2. SETTLING TANK

3. OWS

4. ISOLATOR SWITCH

5. OIL WASTE

6. Transfer Pit (Optional)

Wash Bay for Parts

System Specifications

• Pad Qty: 0.5 Pad
• Wash Bay Size: 2.4m Long x 3.5m Wide
• Walls: 1.2m | 1.8m | 2.4m High
• Ramps: 0.6 Wide x 1.5m Long each
• Gutter: Galvanised with float switch
• Weight Capacity: 2 Tonne per axle rating
• Warranty: 10 Years structural warranty

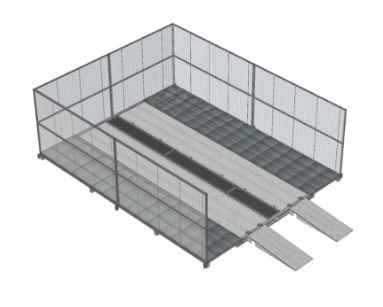

Wash Bay for Cars & 4WD

System Specifications

• Pad Qty: 1 Pad with 1.1m wide walkways
• Wash Bay Size: 6.0m Long x 4.7m Wide
• Walls: 2.0m High
• Ramps: 0.9 Wide x 1.5m Long each
• Gutter: Galvanised with float switch
• Weight Capacity: 2T and 12T (Tonne per axle rating)
• Warranty: 10 Years structural warranty

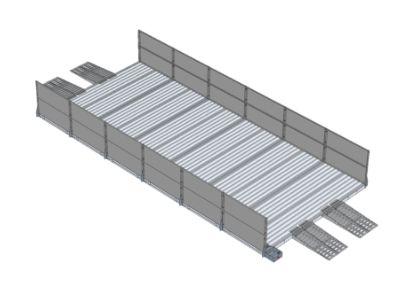

Wash Bay for Trucks

System Specifications

• Pad Qty: 6 Pads
• Wash Bay Size: 14.4m Long x 6.5m Wide
• Walls: 1.2m | 1.8m | 2.4m High
• Ramps: 2T – 1.5m Long & 12T 2m Long
• Gutter: Galvanised with float switch
• Weight Capacity: 2T and 12T (Tonne per axle rating)
• Warranty: 10 Years structural warranty
