STH742C-T3 TelehandlerGet latest price

Overview

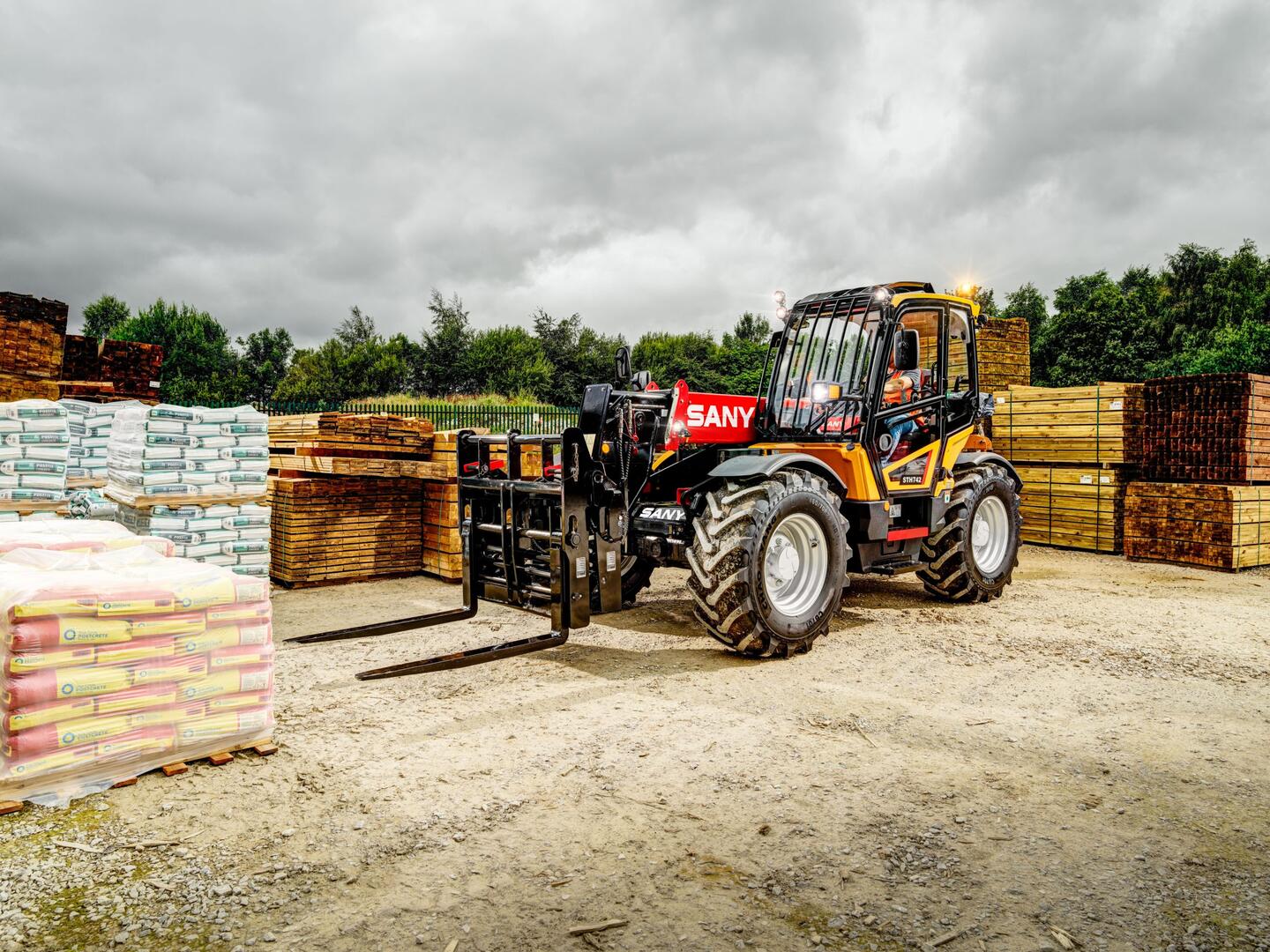

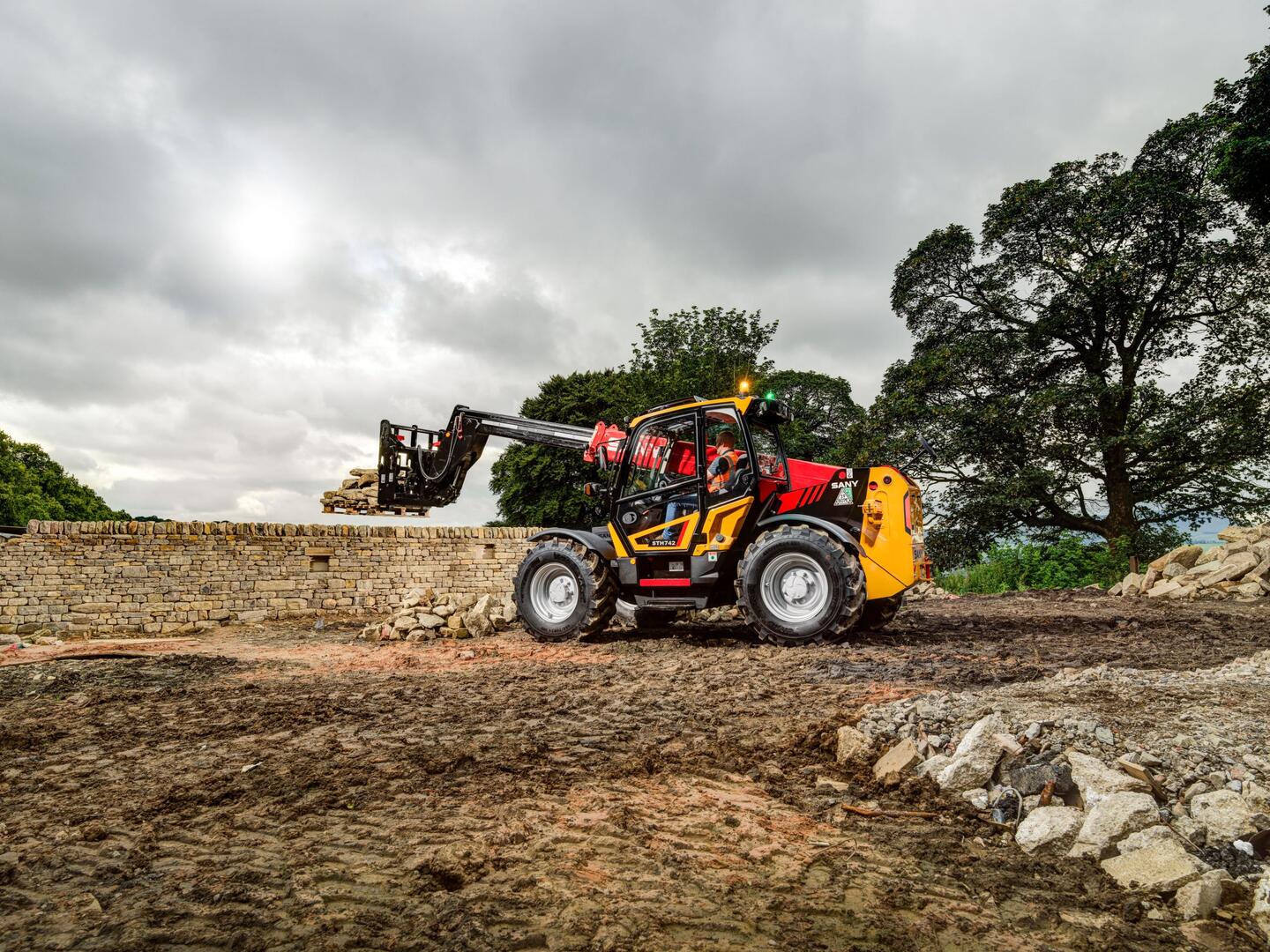

The STH742C-T3 Telehandler is a versatile and powerful machine designed to excel in demanding construction environments. With a compact footprint and a substantial lifting capacity of 4,200 kg, it is perfect for loading, moving, and stacking operations across complex job sites. Its advanced features ensure safety, productivity, and ease of operation, making it an invaluable asset for any construction project.

Key Features

• 4,200 kg maximum lift capacity with a 7-metre lifting height, ideal for heavy-duty site operations.
• Powered by a 55 kW Deutz TD 3.6L Stage V engine, eliminating the need for AdBlue and reducing maintenance complexity.
• Three steering modes (2WS, 4WS, and crab) provide superior maneuverability in confined spaces.
• Germany-designed ROPS/FOPS certified cab with a 10-inch touchscreen display for enhanced operator safety and control.
• Load-sensing hydraulic system allows for simultaneous boom lift and extension, improving operational efficiency.

Technical Specifications

Below are the detailed specifications of the STH742C-T3 Telehandler:

Engine	Cummins QSF 3.8 T3
Rated Power	55 kW / 2,200 rpm
Maximum Lifting Height	7,000 mm
Overall Weight	8,325 kg
Maximum Forward Reach	3,710 mm
Torque	340 Nm at 1,500 rpm
Travel Speed	Up to 27 km/h
Hydraulic Flow	95 l/min
Boom Extension Time	6.5 seconds

Durability

The STH742C-T3 is built on a solid steel, fully welded chassis with a boom mounted deep within the structure for maximum rigidity and strength. High-strength pressed steel boom sections are engineered to withstand intensive working cycles in harsh environments, ensuring long-term reliability and performance.

Ease of Operation

Designed with operator comfort and intuitive control in mind, the STH742C-T3 features a fully adjustable suspension seat, telescopic steering column, and a single-lever multi-function joystick. These features reduce operator fatigue and enhance productivity during long shifts.

Low Cost of Ownership

The STH742C-T3 is engineered to minimise running costs through efficient systems and reduced servicing needs. With no exhaust after-treatment required and 500-hour service intervals, it improves uptime and reduces maintenance frequency.

Safety

Safety systems are integrated to protect operators and ensure controlled performance. Features include a load management system, reversing camera, distance sensors, and hose burst safety check valves, all contributing to a safer working environment.
