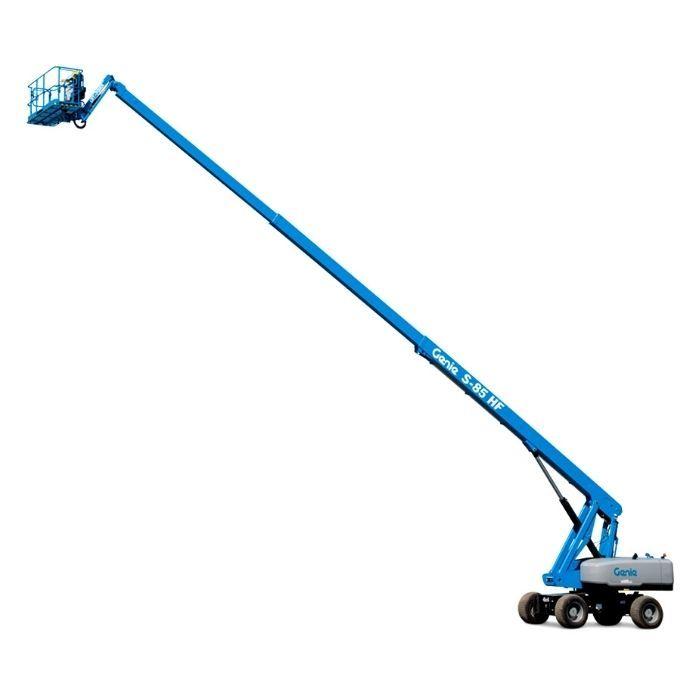

Telescopic Handler | S-85Get latest price

Features of this product

• 76 ft 6 in (23.30 m) of horizontal reach
• 360°continuous rotation turntable for quick positioning
• Smooth boom functions for finer control
• Virtual pivot primary boom aligns the machine’s centre of gravity to work efficiently with a lower machine weight

Specifications of this product

We have various models and specifications in our range. These details are for the Telescopic Handler | S-85. Get in touch to let us know your requirements so we can quote you on a product that best suits your needs.

• Working height maximum*: 91 ft - 27.74 m
• Platform height maximum: 85 ft 25.91 m
• Horizontal reach maximum: 74 ft 6 in 22.71 m
• Below ground reach: 8 ft 8 in 2.64 m
• Platform length - 8 ft model: 3 ft 0.91 m
• Platform length - 6 ft model: 2 ft 6 in 0.76 m
• Platform width - 8 ft model: 8 ft 2.44 m
• Platform width - 6 ft model: 6 ft 1.83 m
• Height – stowed: 9 ft 2 in 2.80 m
• Length – stowed: 40 ft 7 in 12.37 m
• Length - transport (jib tucked under): 33 ft 8 in 10.25 m
• Width: 8 ft 2 in 2.49 m
• Wheelbase: 9 ft 4 in 2.85 m
• Ground clearance – centre: 15.8 in 40 cm
