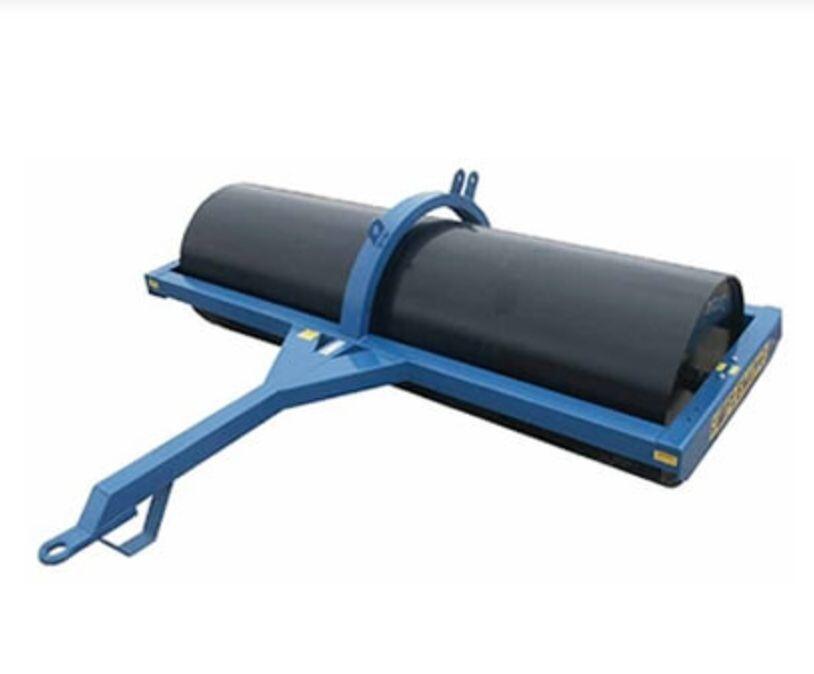

Trailed & 3 Point Linkage Land Roller

Name: Trailed & 3 Point Linkage Land Roller
Brand: Gendore Tractors & Machinery

Supplier: Gendore Tractors & Machinery

The Trailed & 3 Point Linkage Land Roller is a robust agricultural roller designed for effective soil compaction, featuring both trailed and three-point linkage options for flexible operation.

Water-fillable drum for adjustable operating weight.

Fleming Agri-Products, with over 40 years of manufacturing experience, offers this versatile land roller in several models, including 2.5 m, 2.7 m, and 3 m rolling widths. Suitable for general purpose field use, the roller can be filled with water to increase weight and is designed for durability and ease of transport. Three-point linkage is available on certain models to facilitate unladen transport.

Features

Strong structural box section frame with over-channel support for greater rigidity
Three-point linkage (3PL) on all 8 ft models for easy, unladen transport
Optional scraper blade available
Pick up eye and shoe rest standard across all models
Water-fillable drum for added operating weight

All models come with a pick up ring and grease points as standard. Optional wheel kits and scraper blades are available for selected models.

Specifications

Model	Rolling Width (m)	Overall Width (m)	Drum Diameter (mm)	Drum Thickness (mm)	Unladen Weight (kg)	Laden Weight (kg)	3 Point Linkage
103010	3.00	3.22	740	10	883	2170	No
103612	3.00	3.22	885	12	1000	2866	No
83010	2.42	2.62	740	10	685	1730	Yes
83012	2.42	2.62	745	12	775	1890	Yes
83612	2.42	2.62	885	12	970	2490	No
93612	2.74	2.95	885	12	1075	2780	No
93616	2.74	2.95	890	16	1180	2885	No
