Specifications
| MANUFACTURER |
Variant |
|---|---|
| PRODUCT CODE |
3500 U5 |
| SERIES |
Auto-Transporters, Commercial Box Trailers, Tipper Trailers, Universal Series |
| INTERNAL DIMENSIONS (LXWXH) |
520x210x30 cm |
| TOTAL DIMENSIONS (LXWXH) |
670x220x159cm |
| TARE WEIGHT |
1,055 kg |
| TOTAL WEIGHT (ATM) |
3,500kg |
| PAYLOAD CAPACITY |
2,445 kg |
| LOADING HEIGHT |
63 cm |
| WHEELS |
13", 5 Studs, 6 Wheels |
| AXLES |
3 Axles, With Brakes |
| OPENING / DETACHABLE SIDES |
All 4 Sides |
| SIDE MATERIAL |
Aluminium |
| FLOOR MATERIAL |
Phenolic Plywood 18mm |
| INTERIOR TIE DOWN ANCHOR POINTS |
8 Hooks |
| OTHER INCLUDED FEATURES |

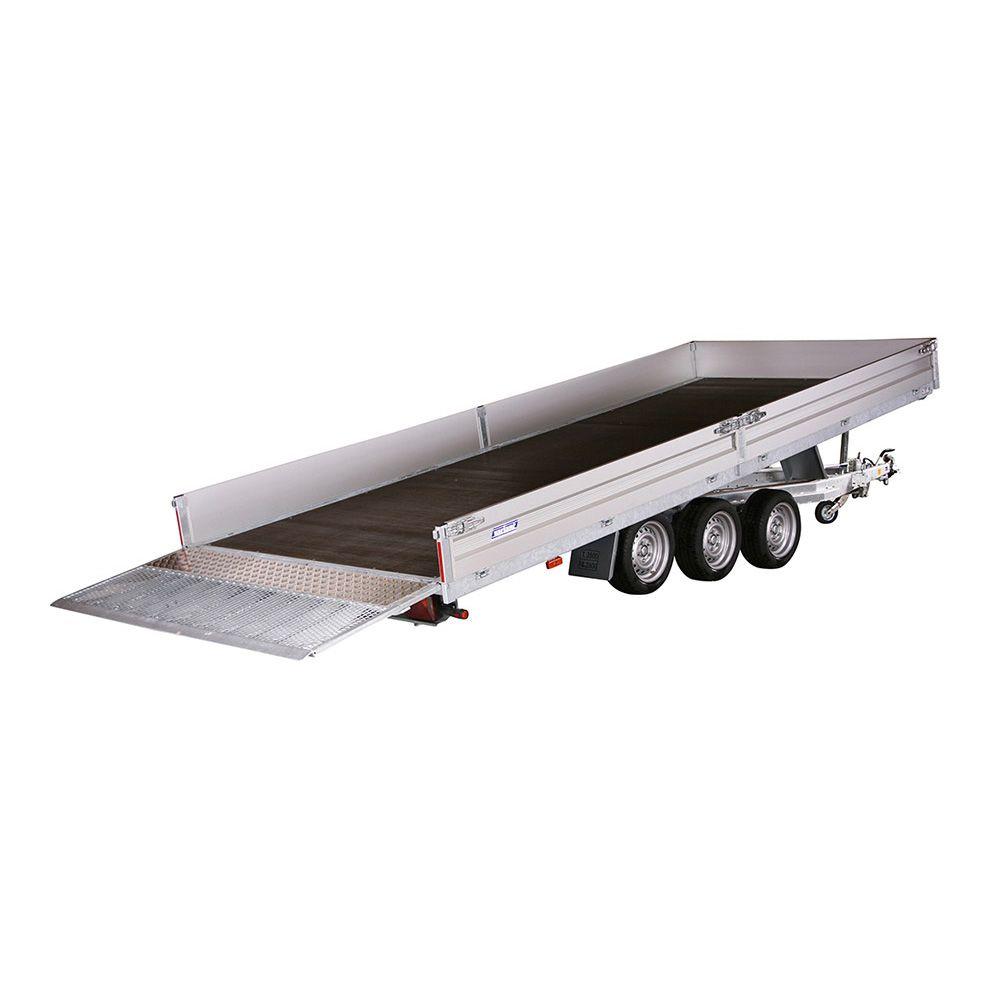

13 or 7 Pin Plug, Gas Struts On Back Ramp, Jockey Wheel, Removable Corner Posts, Strong Tailgate Ramp 90cm |
| TIP TYPE |

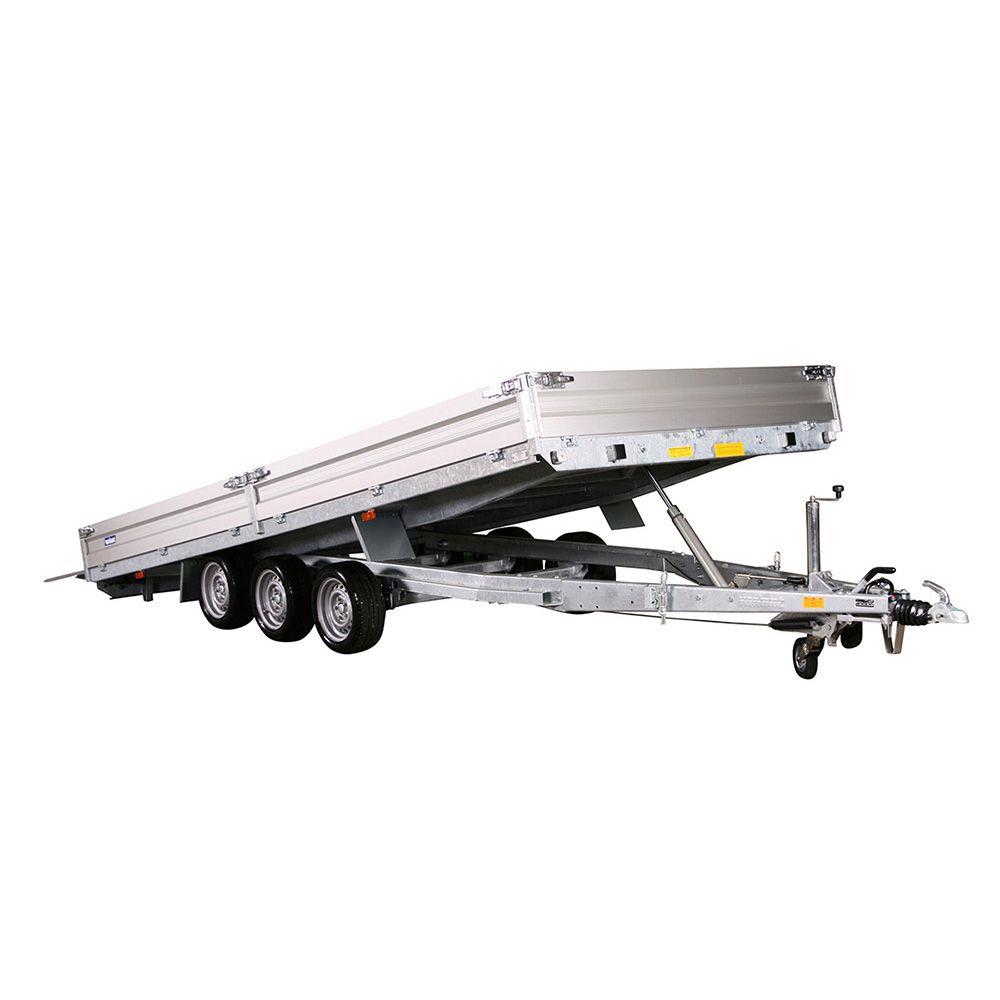

Hydraulic Tip |
| BACK TIP ANGLE |
11 degrees |
| OPTIONAL EXTRAS |
Aluminium Floor Material, Cage Grill Sides 60cm, Electric Tip including Battery & Charger, Electric Winch With Wire, Extra Height Opening Steel Sides 30cm, High Tarp with Inside Framing 210 cm, LED Lights Kit with Control Box, Ramp Stiffener, Removable Winch Braket, Winch With Wire, Wireless Remote Control for Electric Winch |
| ROUGH SIZE IN FEET |
17×7 |

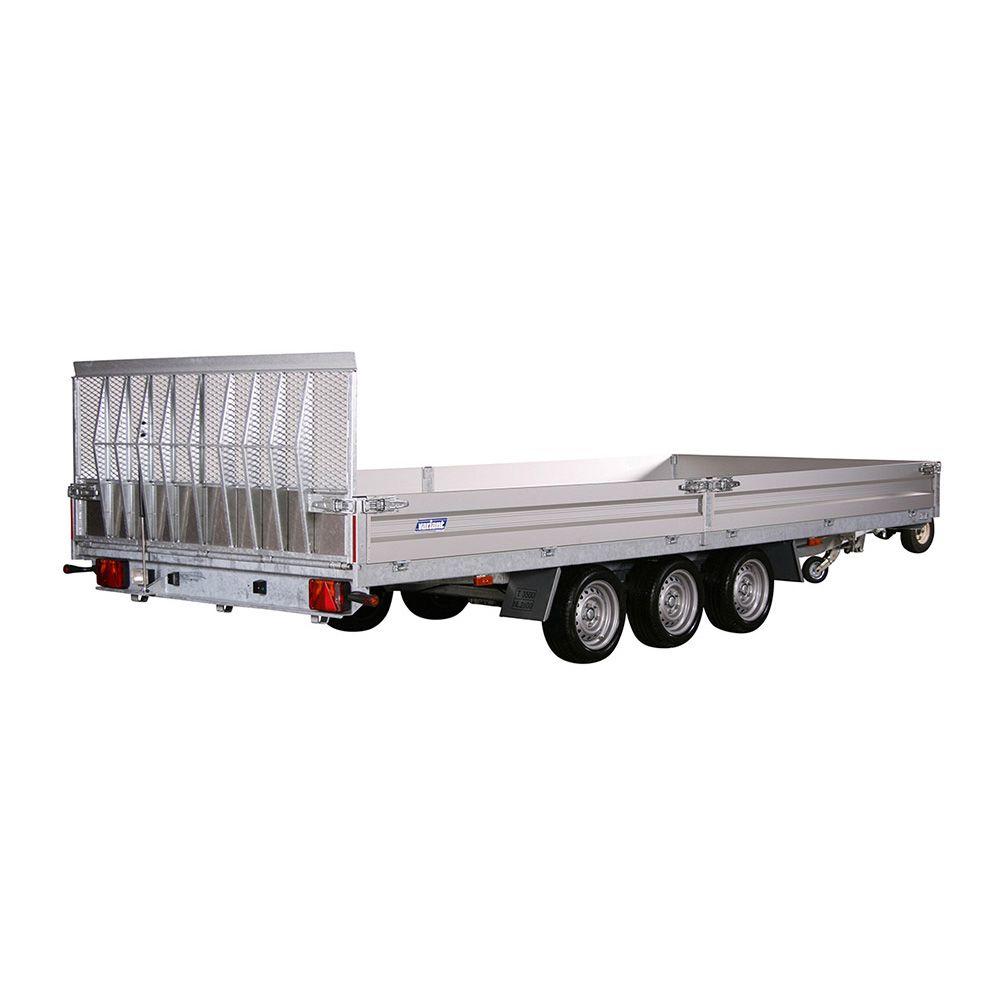

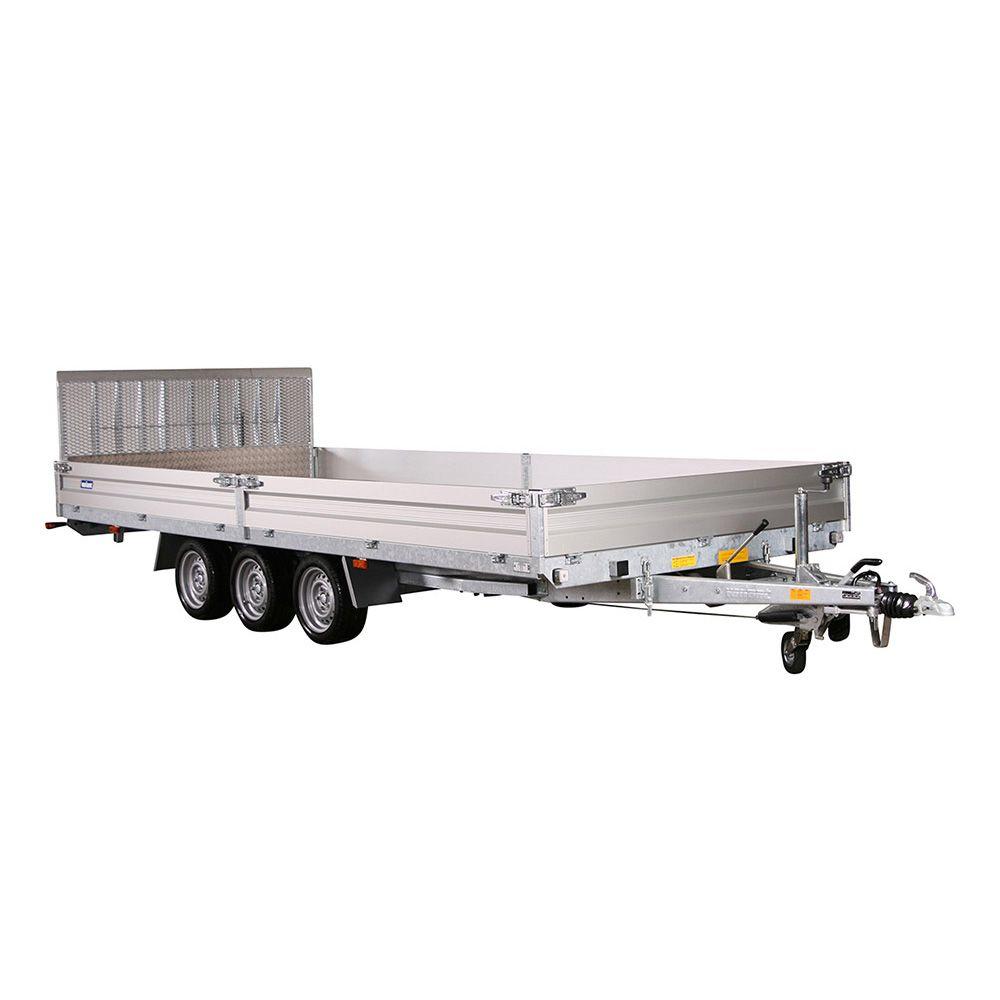

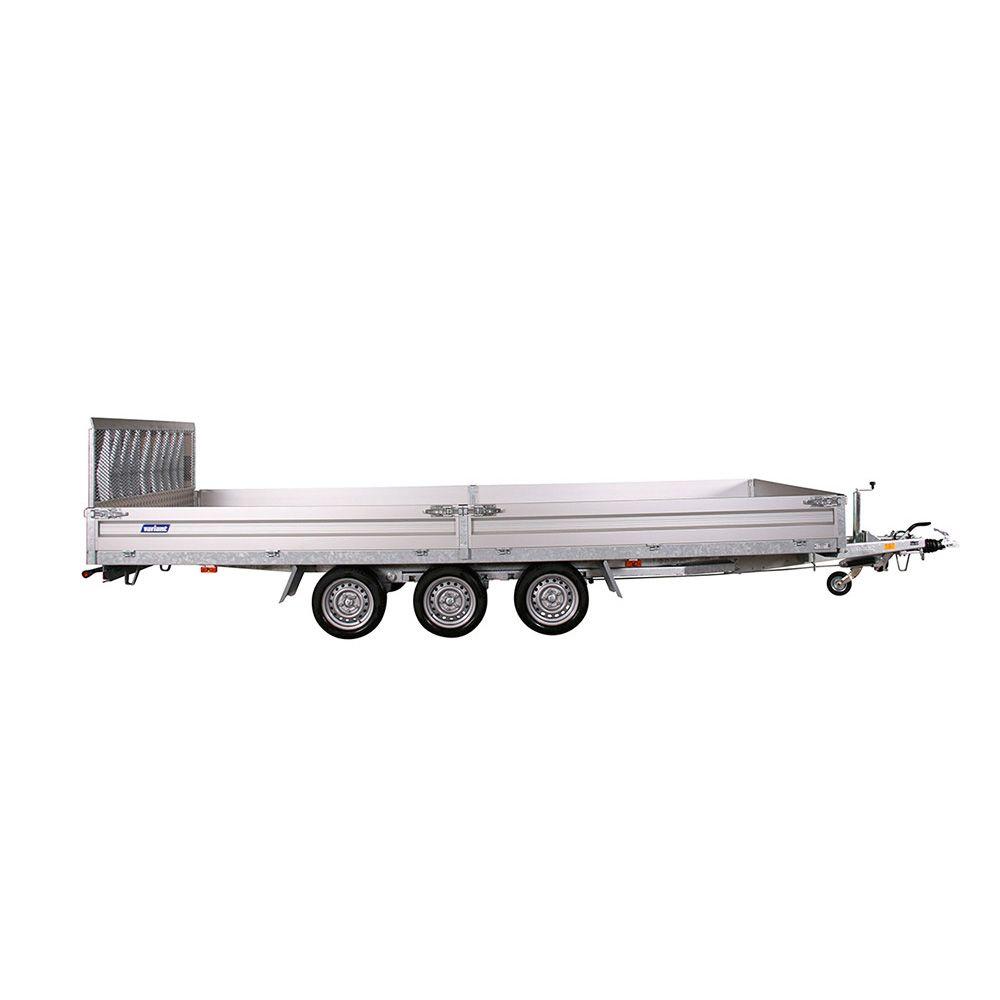

Tri-Axle tilt box trailer with tailgate ramp. 5m long box and 2,445kg payload capacity, perfect for transporting big industrial materials and drive on equipment. Galvanised steel chassis for durability and longevity. Wheels mounted underneath allowing all sides to be openable and removable for easy loading & unloading. three axles with mechanical overrun brakes.
