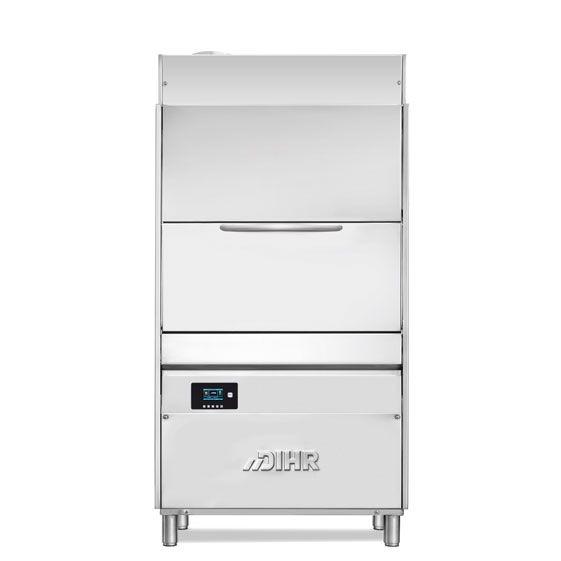

Upright Pot Washer | LP3 S PlusGet latest price

TECHNICAL DATA

EXTERNAL DIMENSIONS

• width 990 mm
• depth 885  mm
• height 1800 / 2035mm ( door open )
• WEIGHT(basic version) 224 kg
• VOLTAGE 400V 3N 50Hz
• POWER REQUIRED 13360 W
• WATER HARDNESS 2-8 °F
• INLET WATER PRESSURE 200-400 kPa

CROCKERY DIMENSIONS

• size allowed 655  mm
• RACK DIMENSIONS 850x725  mm
• RACK EQUIPMENT 1XC86/A - 1XC97/A - 1X92100
• WASHING CYCLES (min) 1 (3) 2 (6) 3 (9) 4 (12)
• WATER SUPPLY 55°C
• racks/h(*)(¹) 20 10 6 5
• WATER SUPPLY 10°C
• racks/h(*)(¹) 20 10 6 5
• WATER CONSUMPTION / CYCLE 4,3 L
• BOILER CAPACITY 15 L
• BOILER HEATING ELEMENT 9000 W
• RINSING TEMPERATURE (SET) 85°C
• TANK CAPACITY 82 L
• TANK HEATING ELEMENT 6000 W
• TANK TEMPERATURE (SET) 55°C
• WASHING PUMP POWER 2180 W (810 l/min***) x 2
• RINSING PUMP POWER 250 W (150 l/min***)
• DRAIN PUMP (optional) 190 W (120 l/min***)
• ACOUSTIC PRESSURE 71,1 dB(A)
