V-FFS Sachet Machine – Powder | EFFFS-P-2800

Name: V-FFS Sachet Machine – Powder | EFFFS-P-2800
Brand: Ernest Fleming Machinery & Equipment Pty Ltd

Supplier: Ernest Fleming Machinery & Equipment Pty Ltd

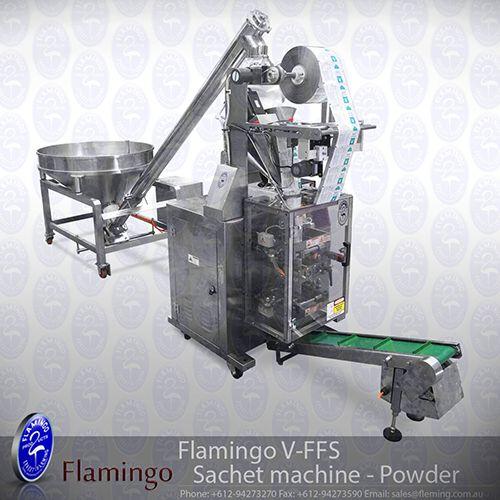

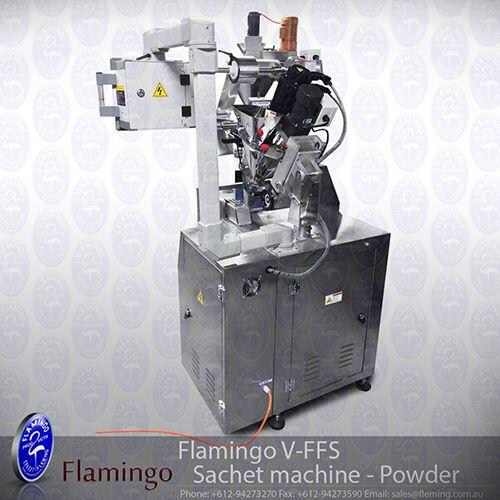

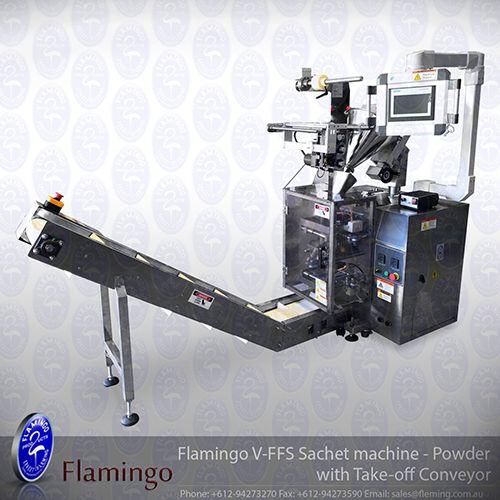

V-FFS Sachet machine – Powder: Flamingo VFFS forms sachets from a sheet of laminated plastic (roll stock); prints batch number and expire dates (Lot #s, Expiration dates, etc) onto each sachet.

Flamingo VFFS forms sachets from a sheet of laminated plastic (roll stock); prints batch number and expire dates (Lot #s, Expiration dates, etc) onto each sachet; measures a given quantity of product and introduces it into each sachet; and Seals every sachet and separates them into individual units. The machines also have ability to pack 3 or 4 side sealed sachets, or pillow packs.

All areas in contact with product are made of Stainless Steel.

Sachet presentation: max 11 mm width Vertical Seal width Easy Tare cut (linear or grid texture), max 8 mm Horizontal Seal width (linear texture or grid).

Product Features:

Constant Heat Sealing System for BOPP and laminated materials
Integrated Volumetric Auger Filler (2-200g) accuracy 2%
Siemens PLC and Touch Screen
20 liter Hopper with Product Agitator
Product Level Sensor in Hopper to prompt automatic top-up
Stepper Motor Driven Film Pull
Film Eye mark (cut marks) detection photoelectric pin point sensor
Fully integrated U2 Pro-S Inkjet coder for batch and expire date coding (up to 4 lines, 12.7mm height) (optional)
Former Product Vibrator function
Film pull support motor mechanism
Cold-Cutting System (zig-zag, straight style)
Optional: Powder Screw Elevator integration ready, with Flamingo Auger Transfer Conveyor

Product Specifications:

Bag-making length	60-150mm
Packing film width	50-135mm
Film Type	Printed or clear BOPP, laminated films
Material Type	free flowing powder
Production Speed	10-60ppm
Power Source	1Phase 240V/AC 50-60Hz
Warranty	12 months
Weight	180 kg
Dimensions	1620 × 1200 × 1840 mm
