Weight Indicators IP68 Protection | WINOXGet latest price

Key Features:

• Weight indicator (For Weighing & Batching) in ABS, dimensions 122x226x164 mm.
• IP67 protection rating.
• Six digit backlit LCD or red LED or Graphic display options.

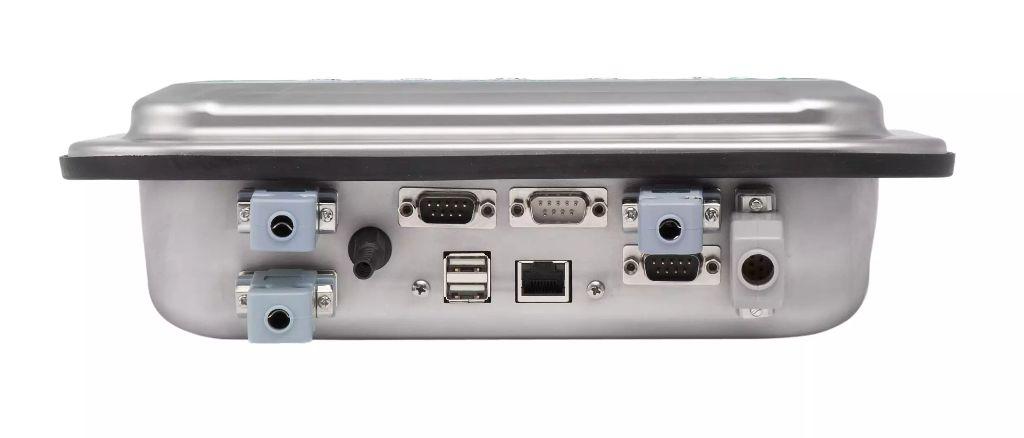

• Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
• Possible installations: wall, panel, column, desk.
• Multiprogram: single loading/unloading and multi-product batching, max 99 formulas.
• RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
• 3 logic inputs, 5 relay outputs.
• OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
• OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)

Optional:

• Weight radio transmission (Wi-Fi).
• Data storage on USB pen drive.
• 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
• Alibi memory.
• Additional RS485 port.
• Eight rechargeable batteries type AA 1.2 V
• Fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP, Ethernet TCP/IP for remote management (connectable to your PC, smartphone, tablet, etc. via web).
• ATEX Ex Proof Version Available
