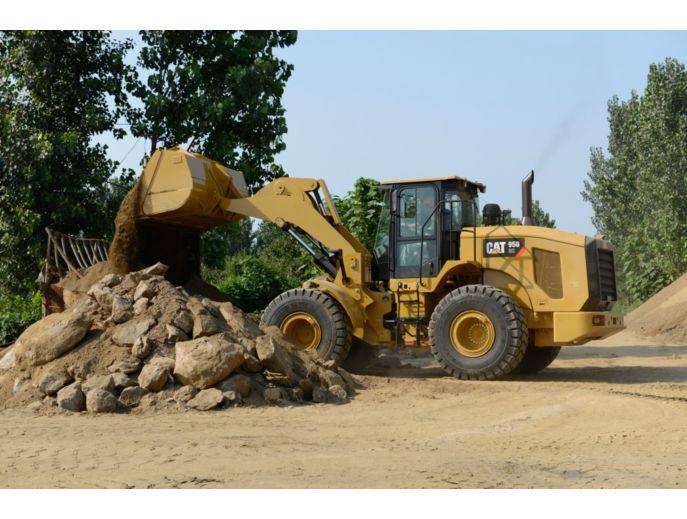

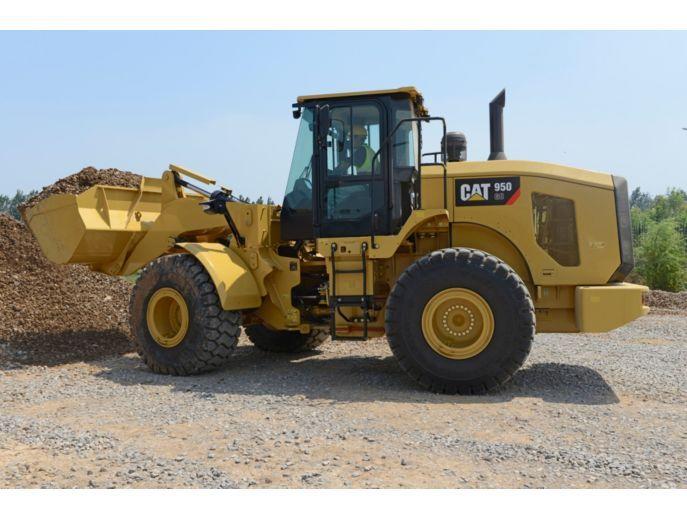

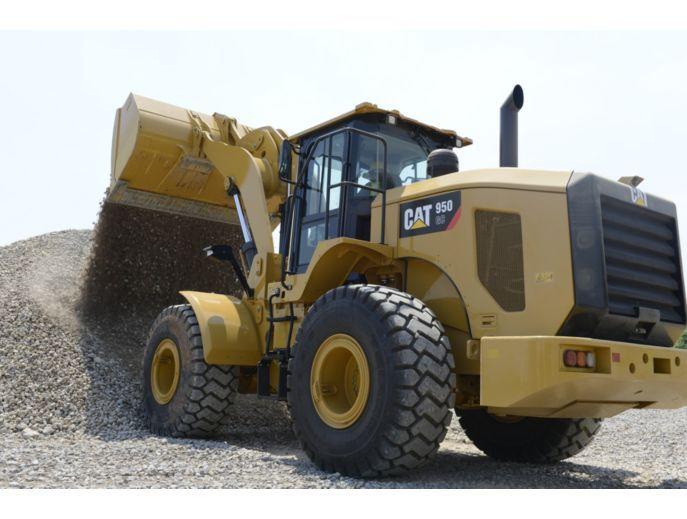

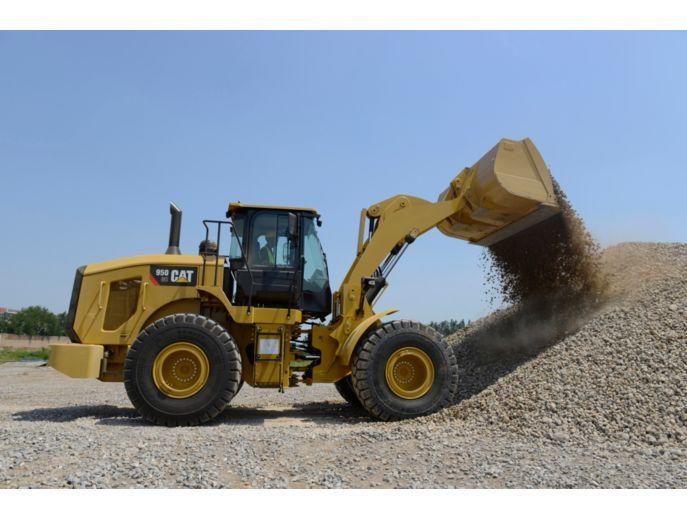

Wheel Loaders | 950 GCGet latest price

Great machine performance combined with the low owning and operating costs makes the 950 GC the right choice for your business.

FEATURES

Reliability You Can Count On

• Cat® C7.1 engine offers high power density with a combination of proven electronic, fuel, and air systems.
• Engine emissions are equivalent to U.S. EPA Tier 3.
• Thorough component choice, design, and in-machine validation processes result in excellent reliability and uptime.

Achieve Greater Productivity

• The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
• Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
• Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

Do More with Less Fuel

• Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
• Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
• Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

Designed for Operators

• The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
• Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
• The adjustable steering column includes the F-N-R shifter and turn signal control lever.
• Unmatched viewing area with a wide, flat, and distortion-free front windshield.
• The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
• The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
• Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

Safely Home Everyday

• Ladders are standard on both sides of the machine to easily access the platforms.
• Platforms are equipped with guard- and handrails for safe access to the cab.
• The main cab door opens to the front and provides wide access to the operator environment.
• Front and back wipers ensure that a clear view is maintained.
• External rearview mirrors with integrated spot mirrors arestandard.
• A rear vision camera is standard to clearly monitor movement behind the machine.
• Hinged wheel guards, easy removal/re-install.
• Optional windshield and power train guards.

Save on Service and Maintenance

• Grouped service points and sight gauges allow for easy daily maintenance.
• Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
• Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
• A rear swing-up grill gives easy cleaning access to thecooling cores.
• Hinged wheel guards are easy to remove/re-install, providing wide access to all maintenance points and to the engine compartment.
• Optional power train bottom guard protects the machine against damage to reduce downtime.
• Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
• Caterpillar design and manufacturing techniques assureoutstanding service life.

CAT Production Measurement Kit

• This optional kit is simple to install compared to other 3rd party payload systems*.
• On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
• Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
• Increases productivity, weighing while lifting with no interruptions in loading cycle.
• High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
• Improve efficiency with less rework; save time, labor, fuel,and costs.

  * Not available in all markets
  ** Not legal for trade



SPECIFICATIONS

ENGINE

Net Power - ISO 9249	151 kW
Engine Model	Cat C7.1
Bore	105 mm
Stroke	135 mm
Displacement	7.01 l
Maximum Gross Torque - 1,400 rpm	1020 N·m
Rated Net Power - 2,200 rpm - ISO 9249	151 kW
Rated Gross Power - 2,200 rpm - ISO 14396	168 kW
Maximum Gross Power - 2,000 rpm - ISO 14396	171 kW
Maximum Net Torque - 1,300 rpm	931 N·m



WEIGHTS

Operating Weight

18676 kg



BUCKETS

Bucket Capacities

2.5 m³ to 4.4 m³ (3.3 yd³ to 5.75 yd³)



OPERATING SPECIFICATIONS

Breakout Force	147 kN
Note (1)	**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Static Tipping Load - Full 40° Turn - Rigid Tires**	11197 kg
Static Tipping Load - Full 40° Turn - ISO 14397-1*	10503 kg
Note (2)	*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.



TRANSMISSION

Forward - 1	7 km/h
Forward - 2	12.5 km/h
Forward - 3	22 km/h
Forward - 4	34 km/h
Reverse - 1	7 km/h
Reverse - 2	12.5 km/h
Reverse - 3	22 km/h



HYDRAULIC SYSTEM

Steering System - Pump Type	Piston
Hydraulic Cycle Time - Dump, at Maximum Raise	1.2 s
Hydraulic Cycle Time - Total Cycle Time	10.1 s
Hydraulic Cycle Time - Lower, Empty, Float Down	2.8 s
Hydraulic Cycle Time - Raise from Carry Position	6.1 s
Implement System - Optional 3rd Function Maximum Flow	280 l/min
Implement System - Maximum Pump Output at 2,200 rpm	248 l/min
Implement System Pump Type	Piston
Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)	27900 kPa
Implement System - Optional 3rd Function Maximum Pressure @ 70 L/min	20680 kPa



BRAKES

Brakes

Brakes meet ISO 3450



TIRES

Choices

Choices include: 23.5-25 16PR, L3 (Triangle); 23.5R25 ??, L3 (Triangle); 23.5R25 ?, L3 (Bridgestone)



CAB

ROPS/FOPS

ROPS/FOPS meet ISO 3471 and ISO 3449 Level II standards



SERVICE REFILL CAPACITIES

Differential - Final Drives - Front	40 l
Crankcase	20 l
Fuel Tank Size	290 l
Differential - Final Drives - Rear	38 l
Transmission	45 l
Hydraulic Tank	120 l
Cooling System	48 l



DIMENSIONS

B-Pin Height	4188 mm
B-Pin Height - Carry	655 mm
Lift Arm Clearance	3649 mm
Centerline of Rear Axle to Edge of Counterweight	2001 mm
Height - Top of ROPS	3458 mm
Height - Top of Exhaust Pipe	3596 mm
Height - Top of Hood	2568 mm
Ground Clearance	460 mm
Wheel Base	3300 mm
Centerline of Rear Axle to Hitch	1650 mm
Rack Back - Maximum Lift	60 °
Dump Angle at Maximum Lift	52 °
Rack Back - Carry	45 °
Rack Back - Ground	40 °
Height - Center Line of Axle	750 mm



TURNING RADIUS

Turning Radius - Inside of Tires	3419 mm
Turning Radius - Outside Edge of Counterweight	6190 mm
Turning Radius - Outside of Tires	6164 mm
Width - Over Tires	2745 mm
