Wheel Loaders | ZW120

Name: Wheel Loaders | ZW120
Brand: Hitachi Construction Machinery

Supplier: Hitachi Construction Machinery

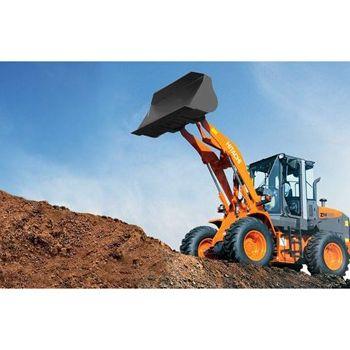

The Hitachi ZW120 is a highly productive wheel loader great for small to medium landscaping and construction jobs.

25 Recent ViewsIn Stock

It incorporates light footwork, high maintainability, durability, operator comfort and ease of control. The ZW120 Wheel Loader yields high production levels while keeping fuel consumption low, but still delivers when it matters. Four work modes are selectable according to job requirements and operator’s preference.

Overview

Engine: Kubota V3800-TI-CRS
- Emission Certification: Europe (EU) Stage IIIA
- Net Power: 73kW @ 2,100 RPM
- Displacement: 3.769L
- Cylinders: 4
- Fuel Capacity: 150L
- Air Cleaner: Double stage dry type

Powertrain
- Transmission: Hydrostatic with automatic power and two speed control
- Max Travel Speed: 34.5 km/h

Axle and Final Drive
- Heavy duty planetary final drive
- Four-wheel drive system
- Articulated frame steering
- Limited Slip Differential

Brakes and Tyres
- Inboard mounted fully hydraulic wet disc brake
- Parking Brake: Spring applied, hydraulically released, wet disc type
- 17.5 25 12 Ply L2 Tyres with Rims

Hydraulics
- Main pump (load & steer) - Gear type max flow – 117 L/min @ 2100 rpm at 20.6 MPa
- Arm controls with four position valve; raise, hold, lower, float
- Bucket controls with two position valve: roll back, dump

Cabin
- Certified ROPS / FOPS cabin
- Air suspension seat with head rest
- Retractable seat belt (76mm)
- Steering wheel with spinner knob
- Rear view mirrors
- Handrails and steps
- 3 Spool / 2 Lever control (joystick for 2 spool and auxiliary lever for 3rd spool)
- Air conditioning
- AM/FM radio

Standard Equipment
- Operator manual only
- Standard counterweight
- Boom lock
- 1.3m3 general purpose bucket with bolt on cutting edge (for use with quick coupler)
- Pallet and lumber fork (for use with quick coupler)
- Hydraulic quick coupler
- Ride Control
- Bucket cylinder protection guard
- Air pre-cleaner
- Underguard
- Emergency steering
- Satellite monitoring system free for the life of powertrain warranty
- 12V Outlet
- Front and rear work lights on cabin
- Lift and tie-down hooks
- Reverse alarm
