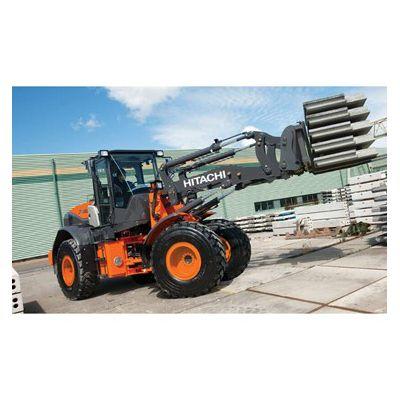

Wheel Loaders | ZW150PL-5Get latest price

It provides operators with a safer working environment with the benefit of efficient fuel consumption, a comfortable cab with easy-to-use controls, overall, a machine that responds quickly and precisely. Also the wheel loader offers optional auto-engine shutdown function, which avoids fuel wastage while the machine is waiting for a dump truck on a work site.

Overview

• Engine
  • Model: Isuzu 4HK1
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, direct injection
  • Aspiration: turbocharger and intercooled.
  • After treatment: muffler filter (DPF).
  • No of cylinders: 4.
  • Displacement: 5.19L.
  • Maximum net power: 113kW (152HP) at 2000 rpm.
  • Maximum net torque: 622Nm at 1500 rpm.
  • Air filter double elements, dry type with restriction indicator.
  • Pre-cleaner, Sy-klone.

• Electrical
  • Backup alarm.
  • Batteries, standard (80AH-622A).
  • Battery disconnect switch.
  • Head lights.
  • Clearance lights.
  • Rear combination lights, brake and tail.
  • Turn signals with hazard.
  • Work light, front (2) and rear (2).
  • Additional work lights on cab, front (2) and rear (2).
  • Rotating beacon provision.
  • 12V power outlet.

• Powertrain
  • Electrical-controlled 2 motor hydrostatic transmission.
  • Fixed gear ratio, powershift countershaft type, forward (4) / reverse (4).
  • Heavy-duty planetary final drives, mounted inboard.
  • Torque proportioning differential, front and rear.
  • Traction control system.

• Brakes
  • Independent brake circuit, front and rear.
  • Inboard mounted fully hydraulic 4 wheel wet disc.
  • Spring-applied/hydraulic-released wet disc type parking brake.

• Tyres: 20.5 R25 (L3), Bridgestone VJTZ radial tyres.

• Hydraulics
  • Variable displacement plunger HST pump.
  • Multi function joystick and auxiliary lever for 3rd function, 3 spools control valve.
  • Bucket auto leveler, automatic return to dig.
  • Dual lift arm auto leveler, adjustable in cab.
  • Lift arm float system.
  • Ride control with off-auto function.

• Operator Environment
  • ROPS/FOPS certified cab: multi-plane isolation mounted for noise, vibration reduction.
  • Tinted safety glass: front windshield: laminated, others: tempered.
  • Auto air conditioner with double intake filter.
  • Defroster, front and rear.
  • Sun visor, front.
  • Air suspension seat with headrest, fabric.
  • Retractable seat belt, 50mm.
  • Adjustable steering column with pop-up, telescopic and tilt mechanism.
  • Textured steering wheel with spinner knob.
  • AM/FM radio and AUX terminal for digital audio player.
  • Rear view camera and monitor.
  • Rear view mirrors, inside (2) and outside (2).
  • Windshield washers and wipers, front and rear.

• Standard Equipment
  • Parallel linkage lift arm
  • Automatic reversible cooling fan with heat sensing.
  • Powertrain belly guard.
  • Counterweight, standard.
  • Drawbar with locking pin.
  • Emergency steering.
  • Front and full covered rear fenders with mud flaps.
  • Global e-service, satellite communication.
  • Lift and tie down hooks.
  • Radiator, standard fin pitch.
  • Operator manual & parts catalogue.
  • Quick Hitch
